T1500 Series Clothes Dryers
5.4 Power Electronic – Removal
T1515, T1520, T1526, T1565C and T1570C
1. Open the front Door and remove the screw near the 4 o’clock
position (Figure 5-3).
2. Open the Front Panel (5.2 or 5.3)
3. Slide the Power Module Electronic upward to release from the
frame.
4. Disconnect the electrical connections and remove the
electronic.

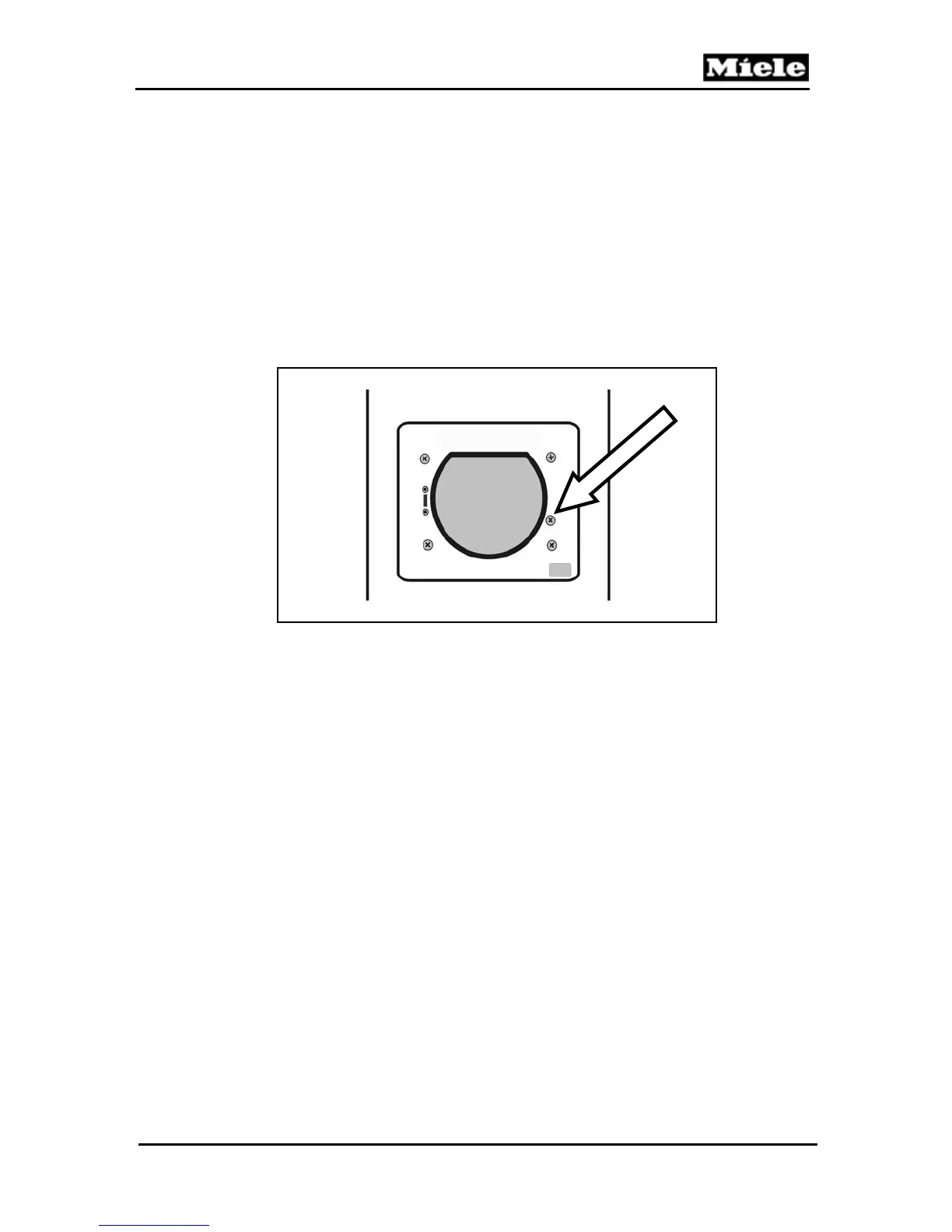

Figure 5-3: Securing screw for Power Electronic on the
T1515, T1520, T1526, T1565C and T1570C model Dryers.
