Technical Information
20
T1500 Series Clothes Dryers
4.3 Fan Motor (M5) Assembly

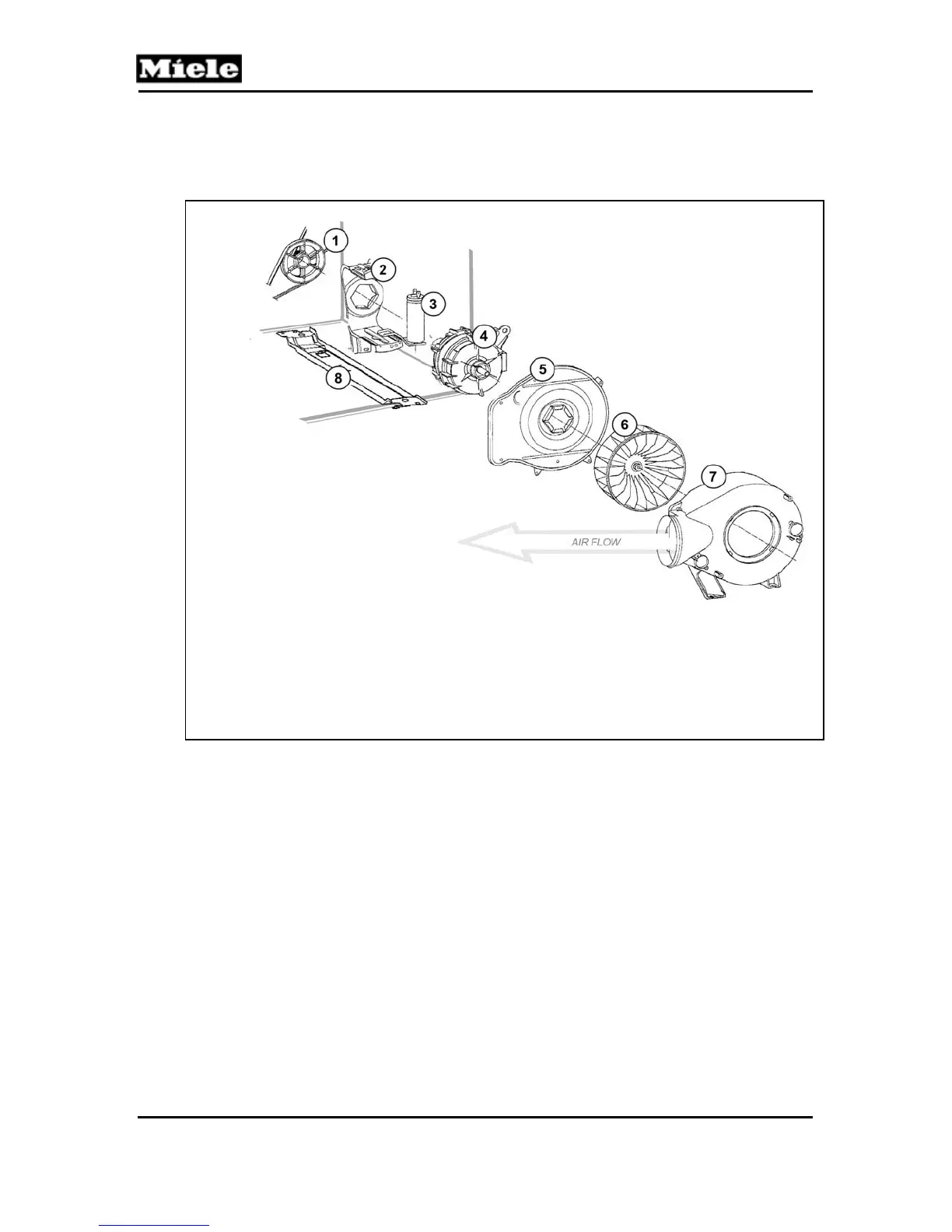

Figure 4-3: Motor Assembly
Refer to Figure 4-3.
The Fan Motor (Item 4) is a bi-directional 120VAC motor.
Directional switching for the motor is performed within the Power
Electronic. Assistance to the motor during start-up; is provided by
the Motor Start Capacitor (Item 3).
The Fan Motor (Item 4) provides drive to the Drum via a Drive Belt
and Reduction Pulley (Item 1) mounted on the Motor Bracket (Item
2).
1 Pulley / Belts
2 Motor Bracket
3 Motor Start Capacitor
4 Fan Motor (
120VAC)
5 Fan Housing Cover
6 Fan Impeller
7 Fan Housing
8 Motor Assembly Slide Track
