Table 35. Parts List—Excursion Switch

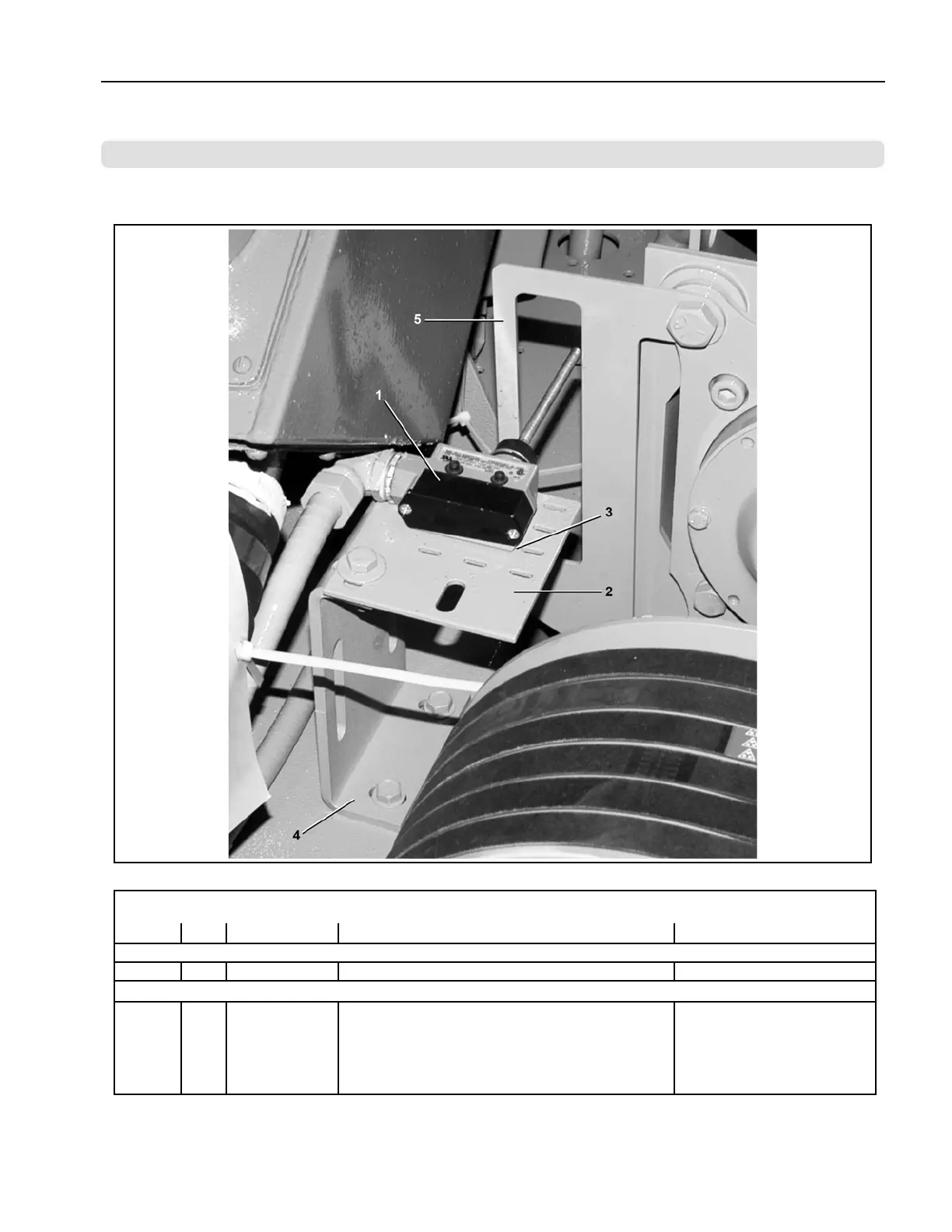

Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A E03 33100A EXCURSION SWITCH ASSY 42SGH
Components
all 1 09R008ASTD * 09R008A+MOUNTING HDWRE+INST
all 2 02 15783A *PLATE=EXCURSION SW MTG
all 3 02 10391 COVER STRIP=MICRO SW #6-8
all 4 02 15789A BKT=EXCURSION SWITCH=SGU
all 5 02 15605E ACTUATOR=EXCURSION SW 42SG-SIG
Excursion Switch
1 Sheet
4244SP2 SM
BPWG4Z01 / 2020043
BPWG4Z01.1 0000267916 A.3 A.4 1/21/20 10:52 AM Released
