38
Pellerin Milnor Corporation
Legend
C...Brake, see BPWG4I04
D...6 instances
E...2 instances

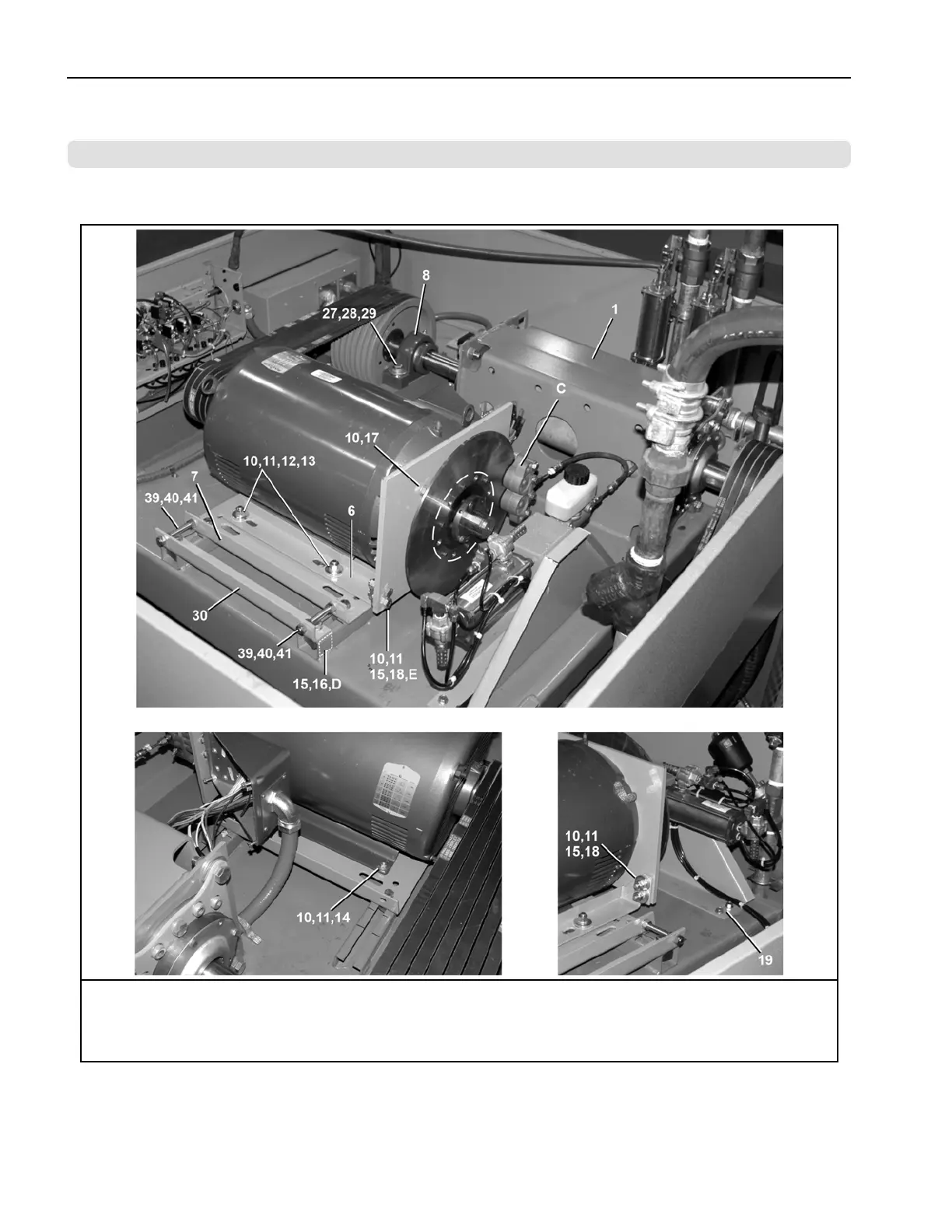

Drive Base Installation
7 Sheets
4244WP2 SM (Single Motor)
BPWD4I02 / 2020273
BPWD4I02.1 0000296382 A.3 6/30/20 1:29 PM Released
Drive Assemblies
