104
Pellerin Milnor Corporation

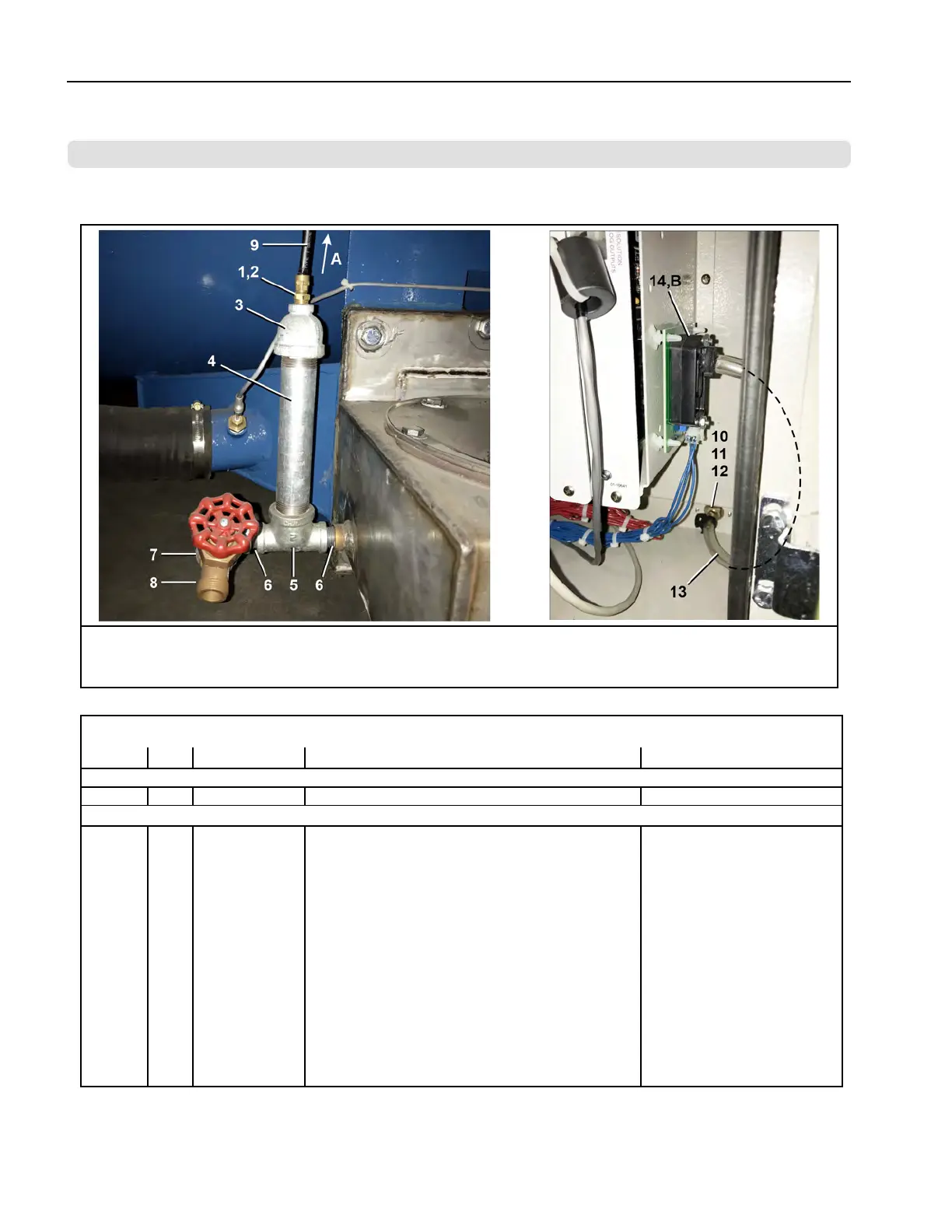

Legend
A...To transducer
B...Transducer
Table 36. Parts List—Air Chamber Level Switch
Find the assembly for your machine and the letter shown in the "Item" column. The components for your machine will show this
letter or the word "all" in the "Used In" column. The numbers shown in the "Item" column are those shown in the illustrations.
Used In Item Part Number
Description/Nomenclature
Comments
Reference Assemblies
A AD 15 090A AIRCHAMBER PRESWITCH INSTALL
Components
all 1 5SB0E0CBEO NPTHEXBUSH 1/4X1/8 BRASS 125#
all 2 53A047H MALCON 5/16X1/8POLY PH#68P-5-2
all 3 5SR1A0ENF NPT RED 1X1/4 GALMAL 150#
all 4 5N1A07AG42 NPT NIP 1X7 TBE GALSTL SK40
all 5
5S0KNFA1A NPT TEE 1/2X1/2X1" GALMAL 150#
all 6 5N0KCLSG42 NPT NIP 1/2XCLS TBE GALSTLSK40
all 7
5SL0PNFC0K NPT 90D STREET 3/4X1/2 GAL150#
all 8 96DB0PNA HOSEBIBB 3/4" MALEINLT 45DEG. ACETAL
all 9 60E005 TUBING BLK.POLY.5/160DX3/16ID
all 10 51V010A TEE 1/8"BRSEXTR BLOCTYP#2203P2
all 11 51E502A HOSESTEM BRASS 1/8MPT X3/16
all 12 5SP0CBEHS NPT PLUG 1/8 HXCTRSNK BRASS
all 13 60E004NA TUBING CLEAR PVC 3/16"IDX5/16"OD
all 14 08BNLTT LEVEL TRANSDUCER BD->TEST
Air Chamber Level Switch
1 Sheet
42044WR2,WR3,SR2,SR3; 6044WR2,WR3,SR2, SR3; 72044WR2, WR3, SR2, SR3
BPWVUZ01 / 2020043
BPWVUZ01.1 0000267913 A.3 1/21/20 10:27 AM Released
Control and Sensing Assemblies
