Pellerin Milnor Corporation 131

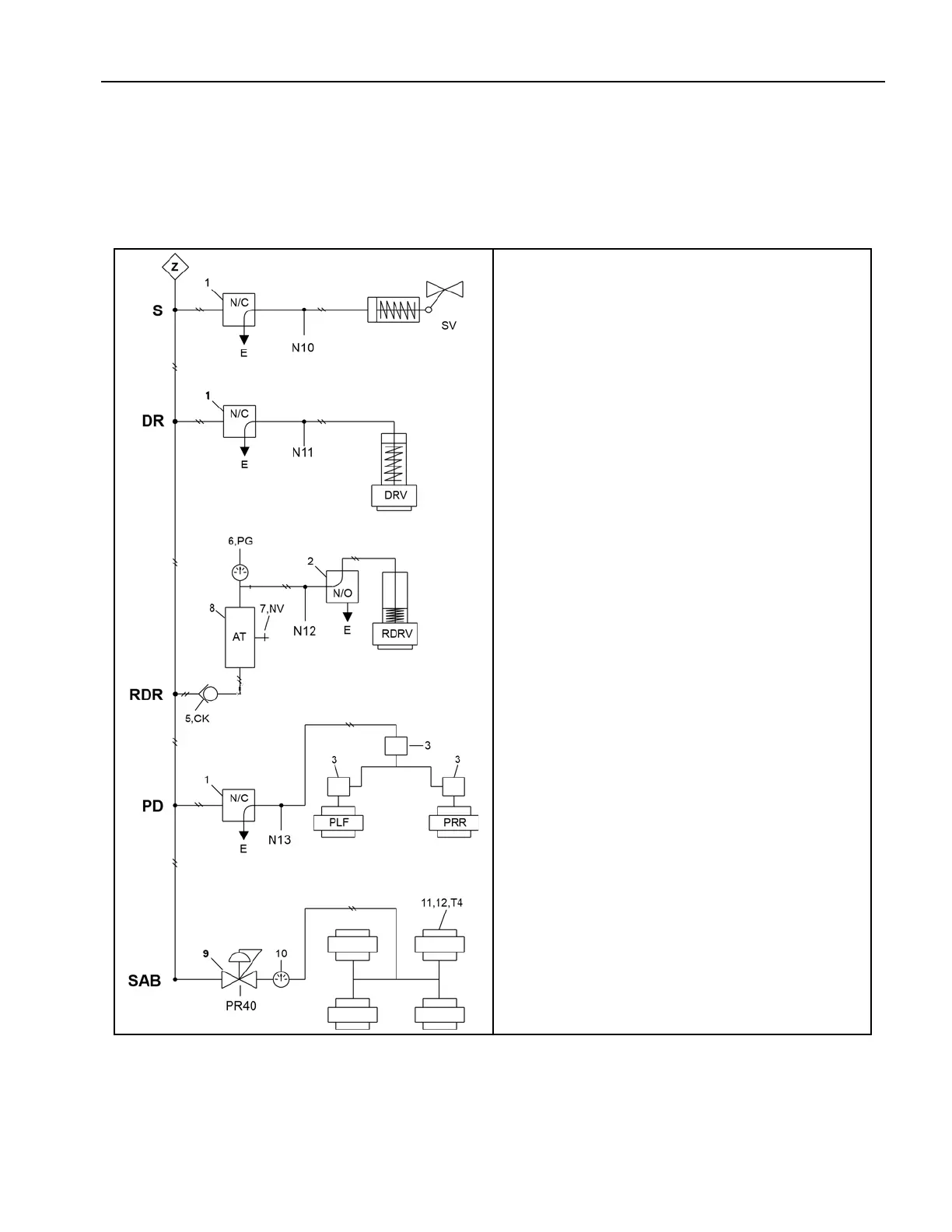

Figure 37. Schematic Diagram Continued
Legend
AT..Air pressure tank
CK..Check valve
DR..Standard drain to sewer
DRV.Drain valve, normally open
E...Exhaust
NC..Normally closed pilot valve
NO..Normally opened pilot valve
NV..Needle valve
N10.Pressure is applied to actuator to open steam when
pilot valve is energized.
N11.Pressure is applied to actuator to close drain valve
when pilot valve is energized.
N12.Pressure is applied to actuator to close reuse drain
when pilot valve is de-energized.
N13.Pressure inflates pushdown cushions when pilot
valve is energized. De-energized cushions exhaust
through quick releases.
PD..Pushdown
PG..Pressure gage
PLF.Pushdown left front
PRR.Pushdown right rear
PR..Pressure regulator, setting 40psi
RDR.Optional drain to reuse
RDRVReuse drain valve, normally open (spring open, air
close)
S...Steam
SAB.Shipboard air bags, 42044CR2/NR2 models only
SV..Steam valve, normally closed
T4..4 places
Z...Continued next page/previous page
Pneumatic Schematic
3 Sheets
42044WP2/WP3/CP2/CP3/NP2/NP3
Pneumatic Piping and Assemblies
