6 Image Acquisition
Operator’s Manual 6 - 35
Touchscreen Display

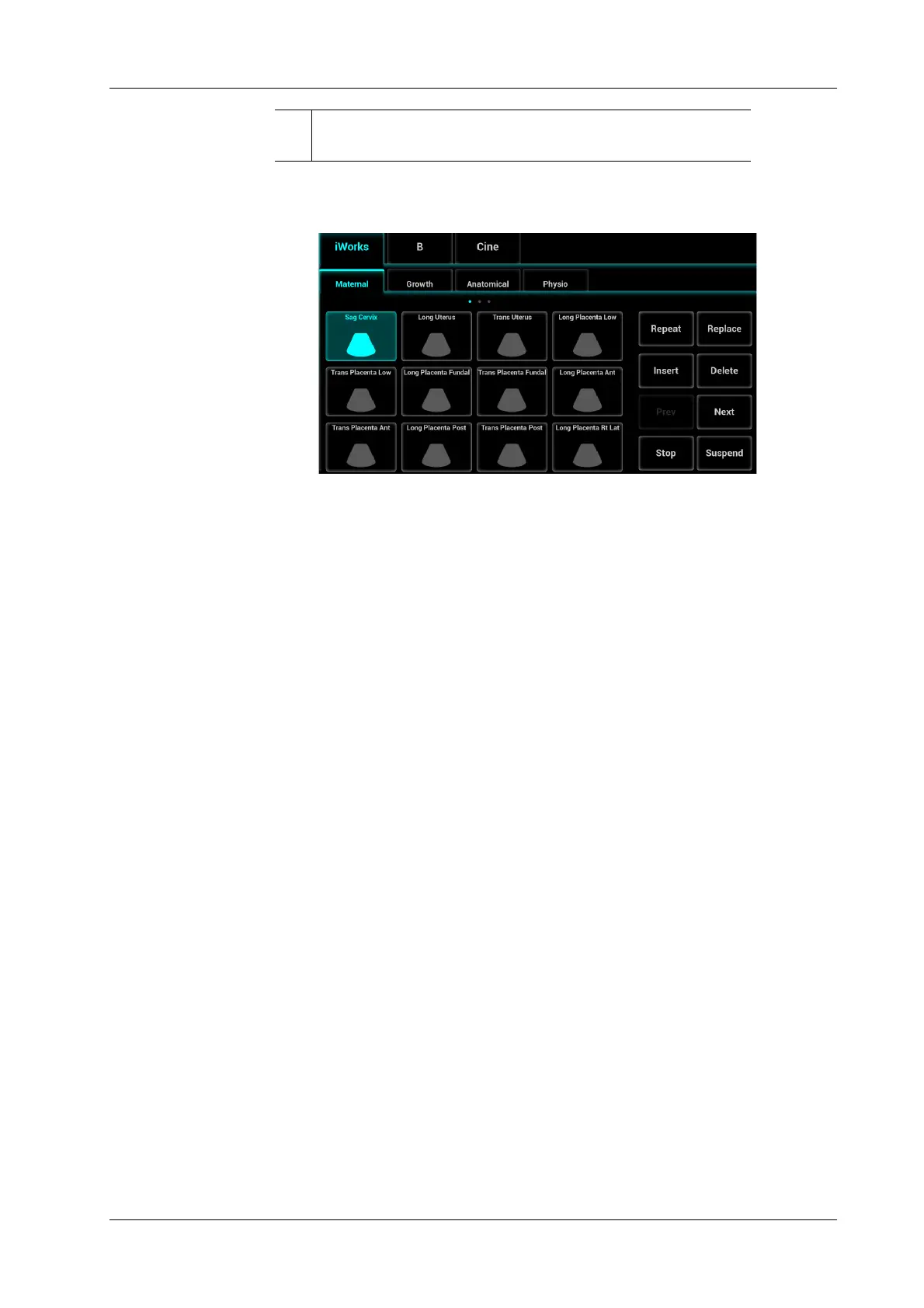

The touchscreen displays the following screen:
6.16.2 View Operation
In iWorks status, you can perform view selection, repeat, replacement and delete operations using
the touch screen.
For some views, the system switches to the relevant imaging modes if necessary.
The comment for the current view has been automatically added to the bottom-left corner of the
image, ready for you to scan the specified anatomy.
View Selection
Tap [Prev]/[Next] to select the view to be scanned. The current view is surrounded by a solid frame.
View Operation
In the current active view, you can perform image scanning, measurements, and adding comments
and body marks, etc. Operations are the same as those for manual operation. See the relevant
chapters for details.
Repeat View
If necessary, tap [Repeat] to insert another template of the current view. You can then perform an
extra examination.
View Replacement
The previous image will be deleted and replaced by the new image.
Delete View
Tap [Prev]/[Next] to select the view to be deleted. Tap [Delete] to delete the selected view.
6.16.3 Manual Examination
Suspend - Exit the protocol so the user can run the system manually. This is used when an unusual
or atypical workflow is required.
You can run the system manually if necessary.
• Start manual examination: tap [Suspend] to pause the current iWorks protocol. The system
enters manual examination status.
2 Displays the view steps in the protocol.
The current active view with a solid frame around the image.
