8 Strain Elastography
It is provided for reference, not for confirming a diagnosis.
• The strain elastography is an option.
• Select an appropriate probe before performing elastography imaging scan, see “16.1 Probes”.
It is produced based on the slight manual-pressure or human respiration in 2D real-time mode. The
tissue hardness of the mass can be determined by the image color and brightness. Besides, the
relative tissue hardness is displayed in quantitative manners.
8.1 Basic Procedure for Strain Elastography
Perform the following procedure:
1. Perform 2D scan to locate the region.
2. Tap [Elasto] on the touch screen or press the user-defined key for “Elasto” to enter the
elastography mode.
The system displays two dual B+E windows in real time. The left one is 2D image, and the
right one is elasto image.
3. Adjust ROI according to the lesion size.
Press <Set> to switch between the solid line and the dotted line status.
– When the ROI box is solid line, use the trackball/trackpad to change its position.
– When the ROI box is dotted line, use the trackball/trackpad to change the size.
4. Press the probe according to the experiences and actual situation.

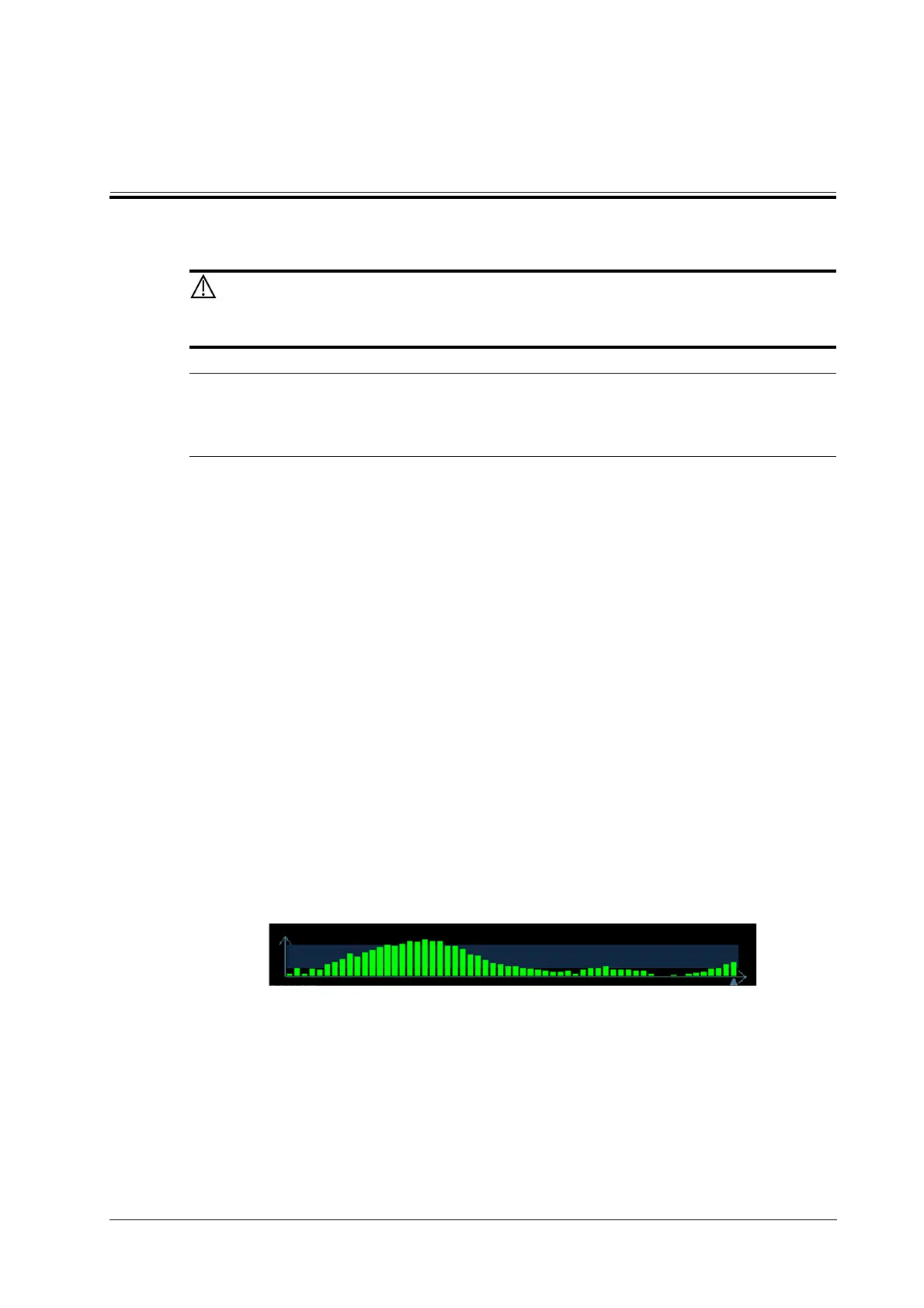

The screen displays the pressure curve in real-time:
Where, the X-axis represents time and Y-axis represents pressure.
5. Adjust the image parameters to obtain optimized image and necessary information.
6. Press <B> or tap [Elasto] to exit, and then return to B mode.
