F3Ci Service Manual
_______________________________________________________________________________________________________________________
36

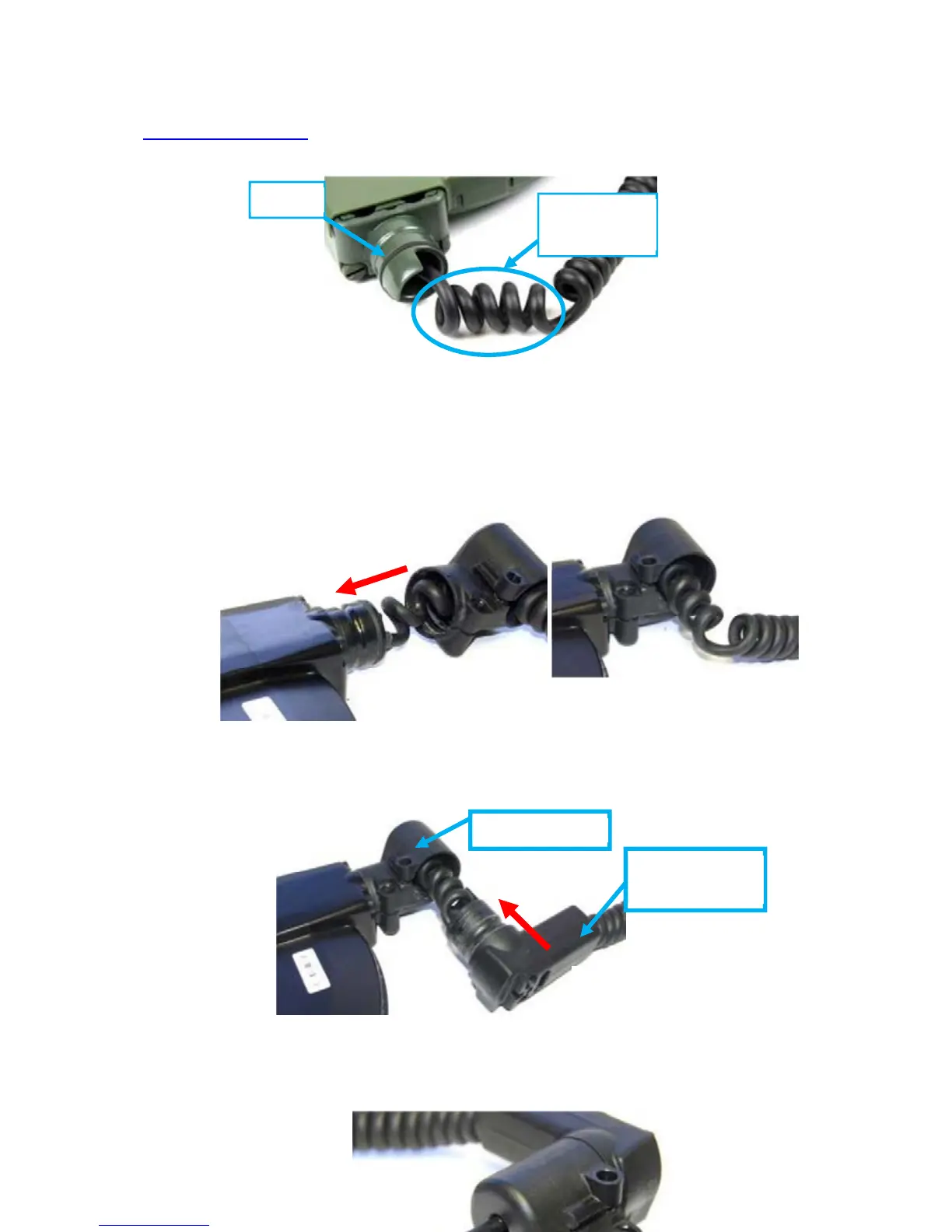

3.4.2 Removing the Coil.
Once completed:
•
Fit the O-ring to the coil as shown in Figure 60.
•
Identify the section of coil cable closest to the coil and wind or unwind the coil cable
to achieve five turns. The five turns of cable will be located within the pivot with the
pin coil pivot passing through the centre.
•
Feed the pivot coil yoke onto the coil cable and carefully move the pivot coil yoke
along the coil cable to the coil. Align and then push the pivot coil yoke into place on
the coil. Check the pivot coil yoke rotates through 90 deg with end stops.
•
Feed the pivot shaft onto the coil cable. Align the coil cable with the five turns of
cable inside the pivot then press the pivot shaft onto the pivot coil yoke. Ensure the
coil cable retains the five turns of cable within the pivot.
•
Push the pin coil pivot into the pivot coil yoke. The pin must travel up the centre of
the five turns of cable inside the pivot. If there is resistance to inserting the pin open
Figure 57: O-Ring
