F3Ci Service Manual
_______________________________________________________________________________________________________________________
48
3.6.2
Fitting the Handle
a. To fit the handle the detector body must be opened as described in Section 3.1 -
Opening the Detector Body.
Once completed:
•
Thread the wiring loom handle into the detector body.
•
Push the handle onto the pin handle pivot.
•
Connect the spring latch hinge to the latch hinge.
•
Feed the rod handle slide through the handle and into position.
•
Connect the wiring loom handle and fit into the cable router. Figure 83.

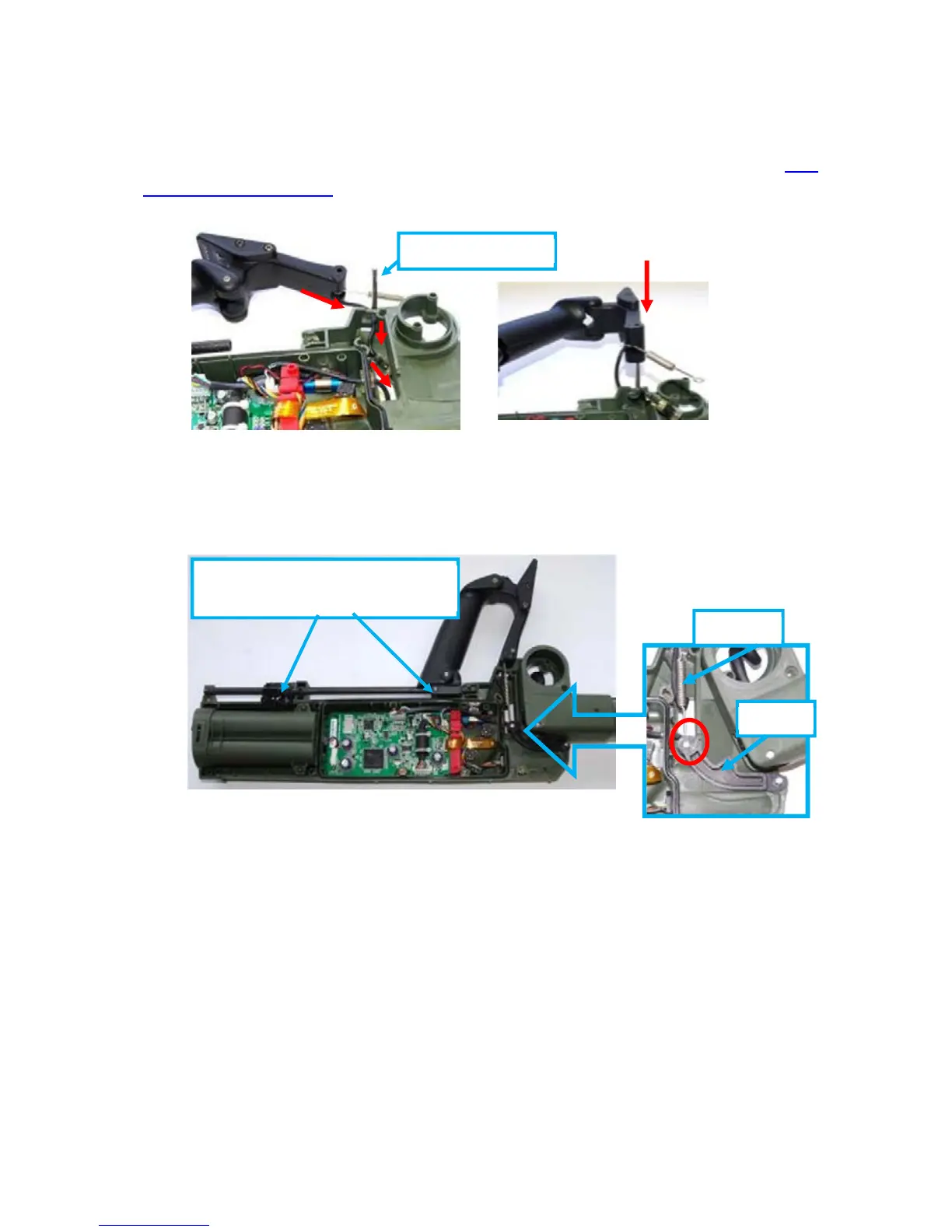

Figure 81: Threading the Wiring Loom
Pin Handle Pivot
Figure 82: Latch Hinge and Spring Latch Hinge
Latch
Spring
Rod Handle Slide passing through
A
rmrest Slide and Handle
To Next Page
