F3Ci Service Manual
_______________________________________________________________________________________________________________________
46
3.6 Handle

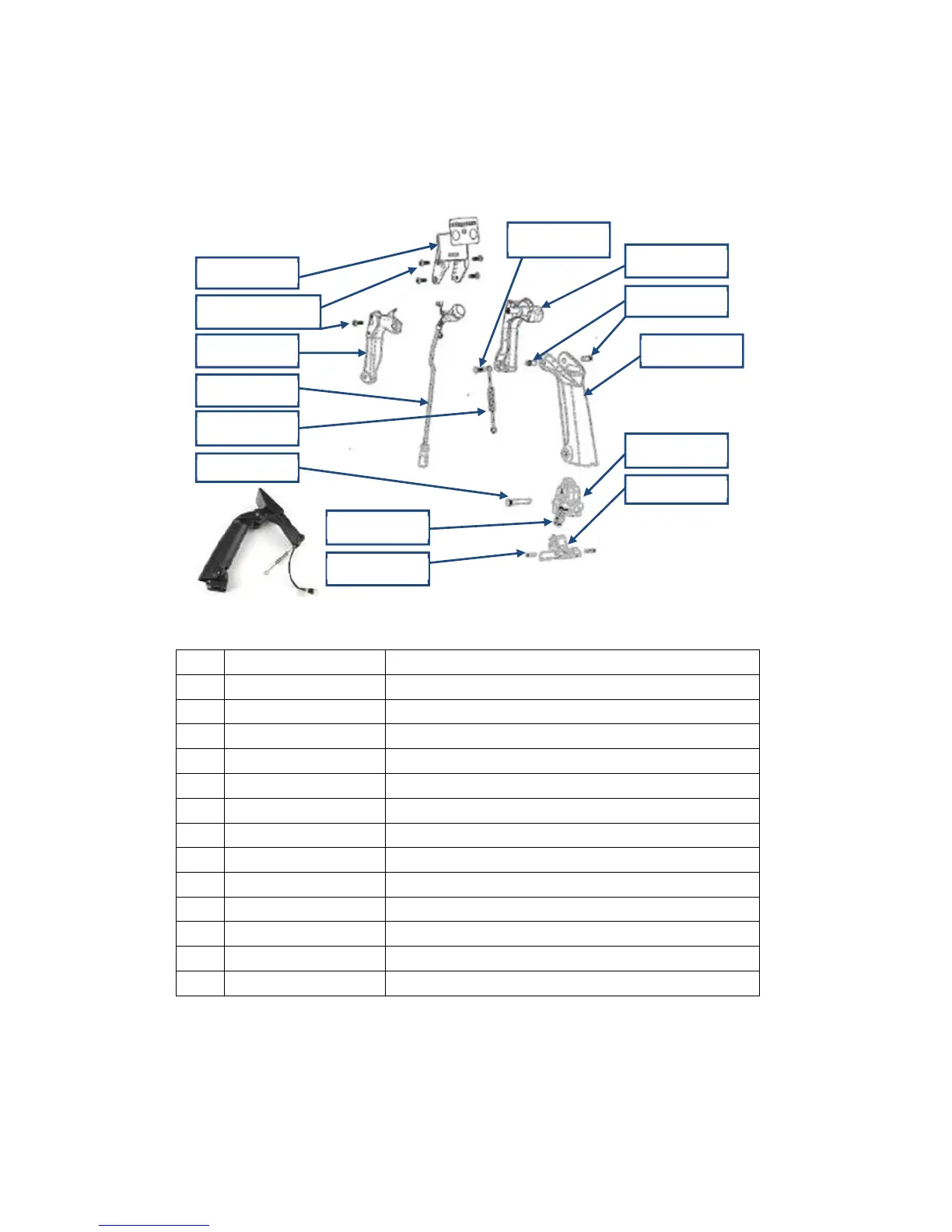

a. The handle assembly is a line replaceable unit and Figure 77 illustrates the major parts of
the handle.
1 3004-0132 Handle Kit, contains all items in this table.
2 0703-0207 Display Assembly LED
4 31-03512-982 Screw 3.5x12 skt head
5 4006-0038 Spring Latch Hinge
6 4006-0041 Spring Handle Detent
7 4308-0022 Pin Lock Handle Detent
8 4308-0023 Pin Handle Main Lower
9 4308-0024 Pin Handle Main Upper
10 4308-0026 Pin Spring Latch hinge
11 4311-0076 Hinge Handle Slide
12 4311-0079 Lock Handle Slide
13 8005-0067 Handle Main
14 8005-0068 Handle Forward Right
15 8005-0069 Handle Forward Left
To Next Page
