F3Ci Service Manual
_______________________________________________________________________________________________________________________
42
3.5 Shafts
a.

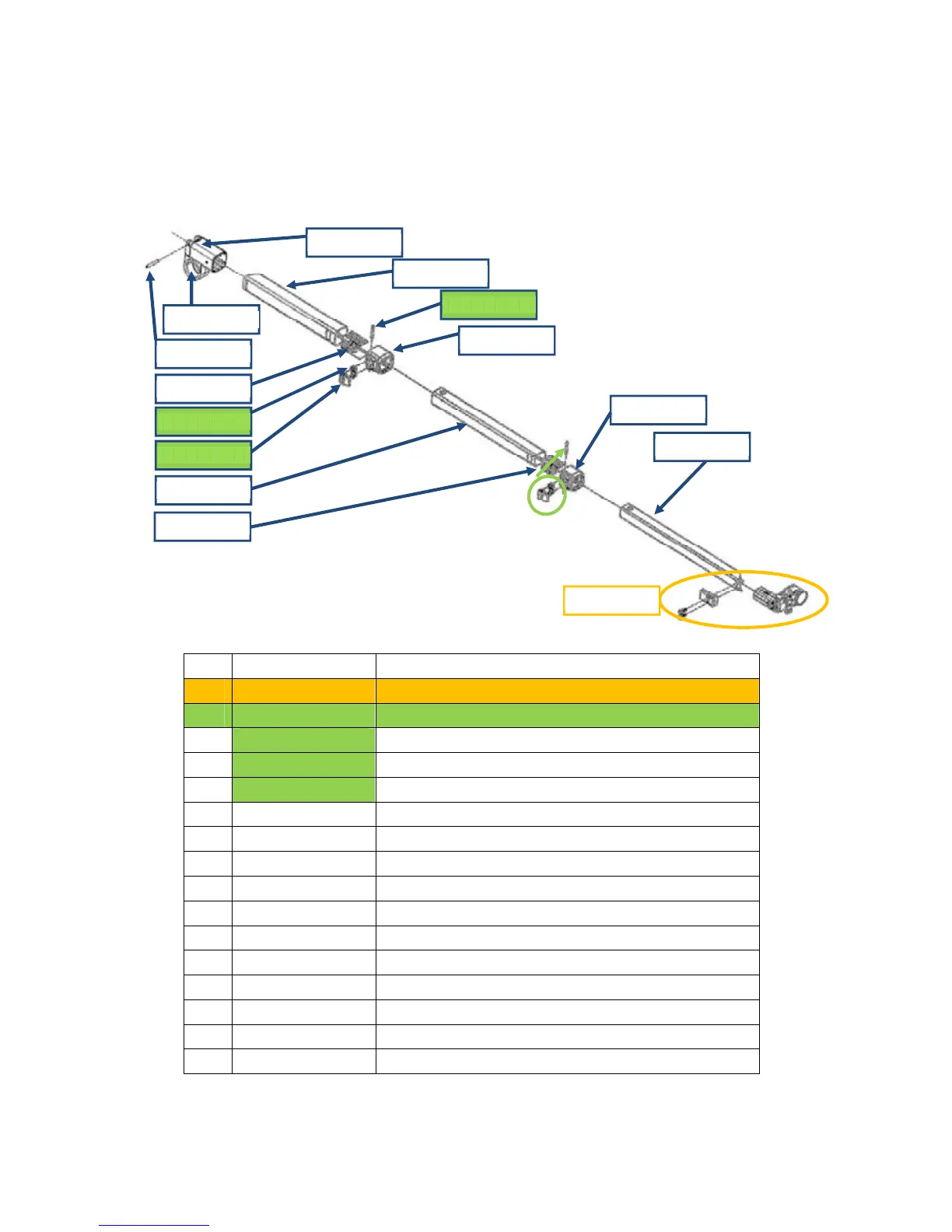

The complete shaft assembly of the detector is a line replaceable unit and Figure 71
illustrates the major parts.
1 3004-0046 Shaft Kit, contains all items in this table
2 3004-0130 Coil Pivot Kit
3 3004-0047 Camlock Kit,
contains 3 items marked green
4 8008-0062 Pressure Block Camlock
5 8008-0061 Camlock Lever
6 4308-0014 Pin Camlock Lever
7 4308-0018 Pin Lock Latch
8 4311-0073 Hinge Upper Shaft
9 8007-0065 Shaft Upper
10 8009-0011 Shaft Guide Middle
11 8008-0059 Camlock Body Upper
12 8007-0064 Shaft Middle
13 8009-0012 Shaft Guide Lower
14 8008-0060 Camlock Body Middle
15 8007-0063 Shaft Lower
16 0703-0202 Cover Shaft Hinge
17 31-03512-982 Screw 3.5x12 skt head
