−25−−24−
①
Run/Stop
switch
One push on the button starts
operation and another push stops
operation.
②
F1
switch ③
F2
switch
This switch starts operation that is set
in F1/F2 function setting.
④ Operation lamp
This lamp lights in green (yellow-
green) during operation. It changes to
red (orange) if any error occurs.
Operation lamp luminance can be
changed.
⑤ LCD (With backlight)
A tap on the LCD lights the backlight.
The backlight turns off automatically if
there is no operation for certain period
of time.
Lighting period of the backlight lighting
can be changed.
If the backlight is ON setting, when
the screen is tapped while the
backlight is turned off, the backlight
only is turned on. (Operations with
switches ①, ② and ③ are
excluded.)
⑥ USB port
USB connector (mini-B) allows
connecting to a personal computer.
For operating methods, refer to the
instruction manual attached to the
software for personal computer
(remote control utility software).
Note
・ When connecting to a personal computer, do not connect simultaneously with other USB devices.
Please be sure to connect to the computer directly, without going through a hub, etc.
Touch panel system, which is operated by tapping the LCD screen with
a nger, is employed for any operations other than the ① Run/Stop,
② F1 ③ F2 switches.
⑤ LCD
(With backlight)
③ F2
switch
④ Operation lamp
⑥ USB port (mini-B)
① Run/Stop
switch② F1 switch

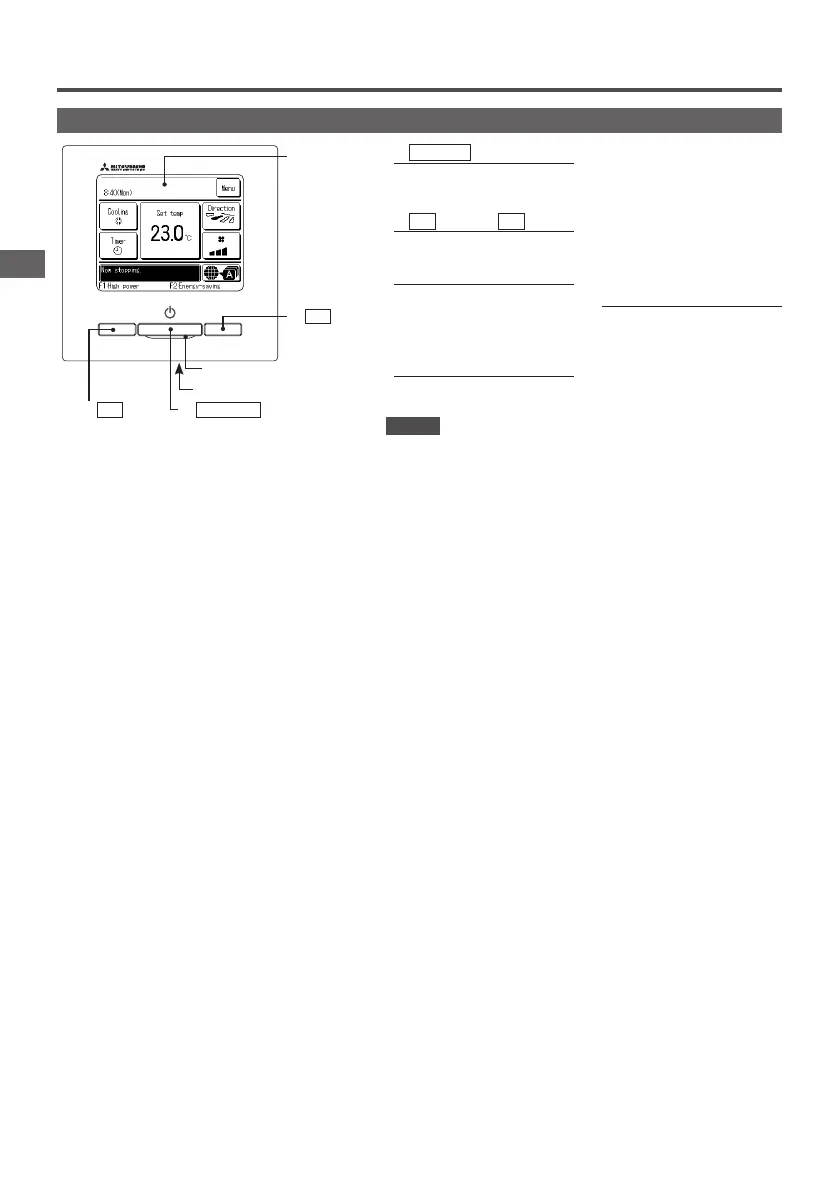

Names and functions of sections on the R/C (Operating section)
2. Functions and menu items of the remote control
