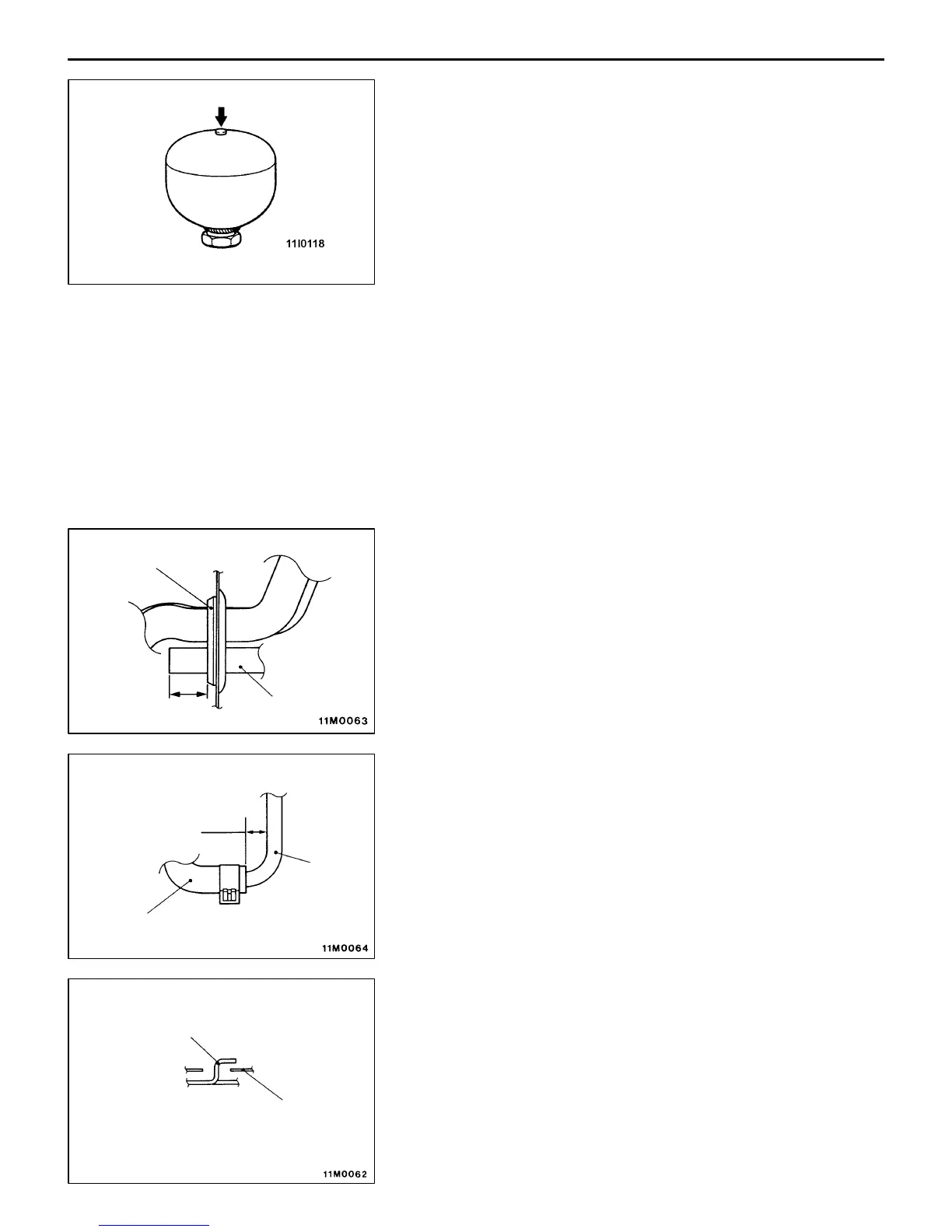

REAR AXLE Hydraulic Unit <Vehicles with AYC>
27-40
REMOVAL SERVICE POINTS
AA" HYDRAULIC UNIT REMOVAL
Should the hydraulic unit be discarded, drill a hole in the
accumulator at the illustrated position beforehand in order
to release the inside gas.
Caution
(1) The hydraulic unit has its accumulator filled with a
high pressure gas. Never throw it into a fire. Also,
never attempt to disassemble, press, weld or melt
it.
(2) When drilling a hole in the accumulator, be sure to
wear safety goggles since drill chips may blow out
together with the gas.
INSTALLATION SERVICE POINTS
"AA GROMMET INSTALLATION
On the vehicle mounted with a sunroof, mount the drain pipe
to the grommet as illustrated.
"BA SUCTION HOSE / RETURN HOSE INSTALLATION
Fit the suction hose and return hose to the nipple of hydraulic
unit as illustrated.
"CA HYDRAULIC UNIT AND BRACKET ASSEMBLY
INSTALLATION
Hook the hydraulic unit bracket hook to the rear floor side
member and install the hydraulic unit and bracket assembly
mounting bolt.
Grommet
Drain pipe
25 ± 5 mm
Nipple
Suction hose and
return hose
15 mm
Hook
Rear floor side member
