ENGINE – Crankshaft and Flywheel
11-67

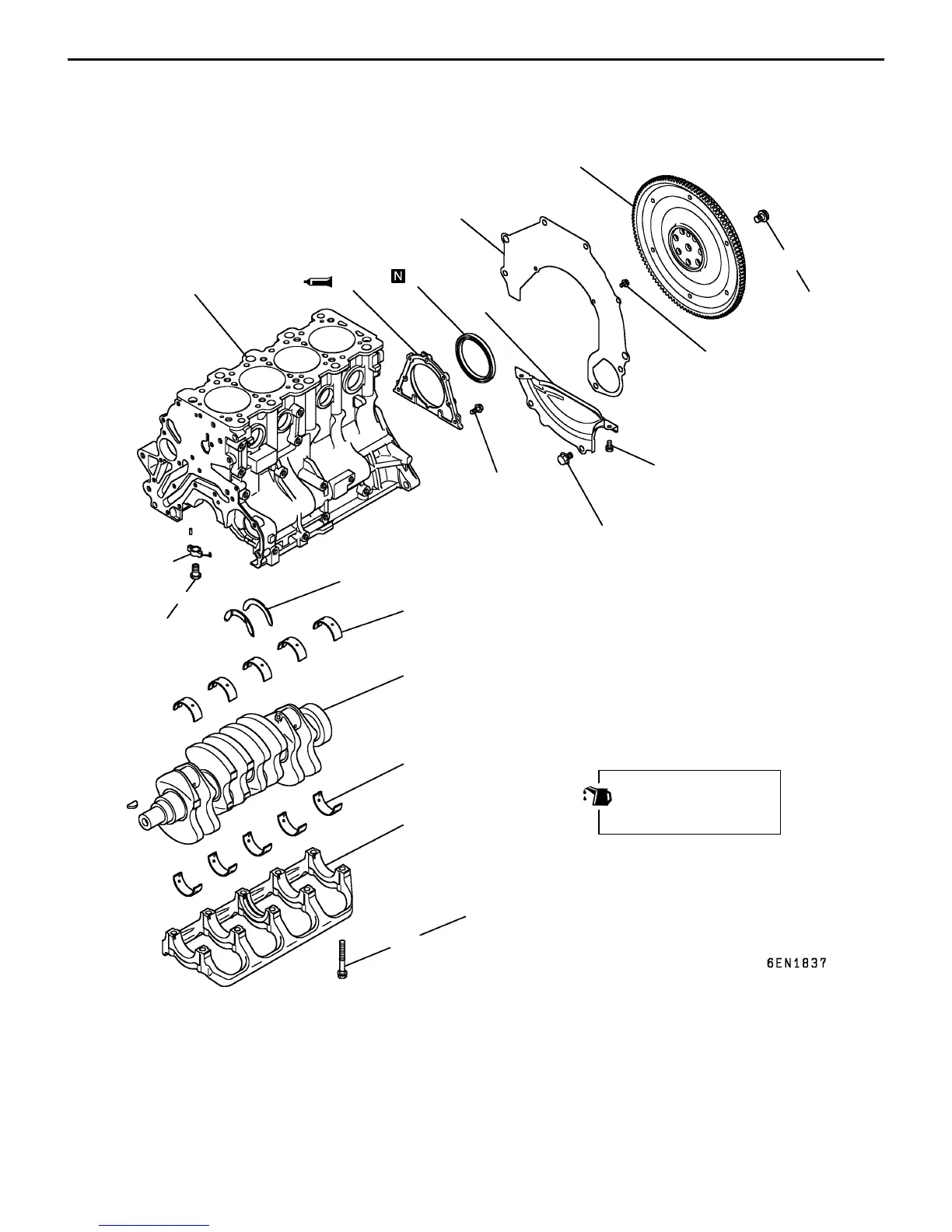

CRANKSHAFT AND FLYWHEEL
REMOVAL AND INSTALLATION
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
25 Nm + 90_
11 Nm
132 Nm
9 Nm
11 Nm
32 Nm
11 Nm
Removal steps
1. Flywheel bolt
2. Flywheel
3. Rear plate
4. Bell housing cover
"EA 5. Oil seal case
"DA 6. Oil seal
"CA 7. Beam bearing cap bolt
"CA 8. Beam bearing cap
"BA 9. Crankshaft bearing lower
10. Crankshaft
"BA 11. Crankshaft bearing upper
"AA 12. Crankshaft thrust bearing
13. Check valve
14. Oil jet
15. Cylinder block
