ENGINE – Timing Belt
11-15
TIMING BELT
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
9 Nm
9 Nm
49 Nm
11 Nm
11 Nm
19 Nm
3.5 Nm
30 Nm
45 Nm
49 Nm
118 Nm
88 Nm
48 Nm
49 Nm
11 Nm
24 Nm
24 Nm
54 Nm

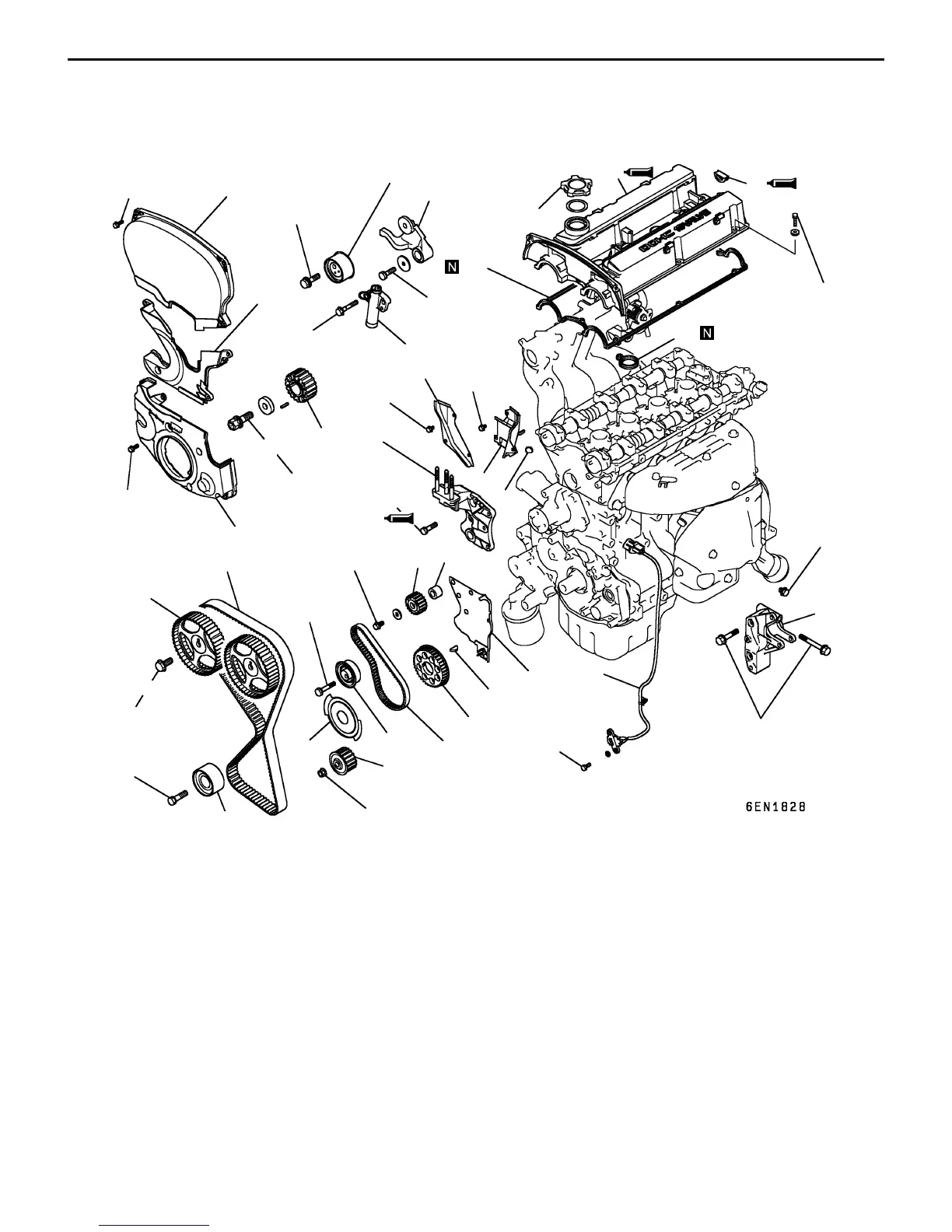

Removal steps
1. Timing belt front upper cover
2. Timing belt front center cover
3. Rubber plug
4. Timing belt front lower cover
5. Power steering pump bracket
AA""LA 6. Timing belt
"KA 7. Tensioner pulley
8. Tensioner arm
"JA 9. Auto tensioner
10. Idler pulley
11. Crank angle sensor
AB""IA 12. Oil pump sprocket
AC""HA 13. Crankshaft sprocket bolt
AD" 14. Crankshaft sprocket
15. Crankshaft sensing blade
16. Tensioner B
AE""GA 17. Timing belt B
AF""FA 18. Counterbalance shaft sprocket
"EA 19. Crankshaft spacer
AG" 20. Crankshaft sprocket B
21. Crankshaft key
22. Oil filler cap
"DA 23. Rocker cover
24. Rocker cover gasket A
25. Rocker cover gasket B
"CA 26. Semi-circular packing
"BA 27. Engine support bracket
AH""AA 28. Camshaft sprocket bolt
29. Camshaft sprocket
30. Timing belt rear right cover
31. Timing belt rear left upper cover
32. Timing belt rear left lower cover
