Mitsubishi Lancer Evolution VI User Manual

FULL-AUTOMATIC AIR CONDITIONER –
Damper Control Motor Assembly
and Power Transistor
55-58

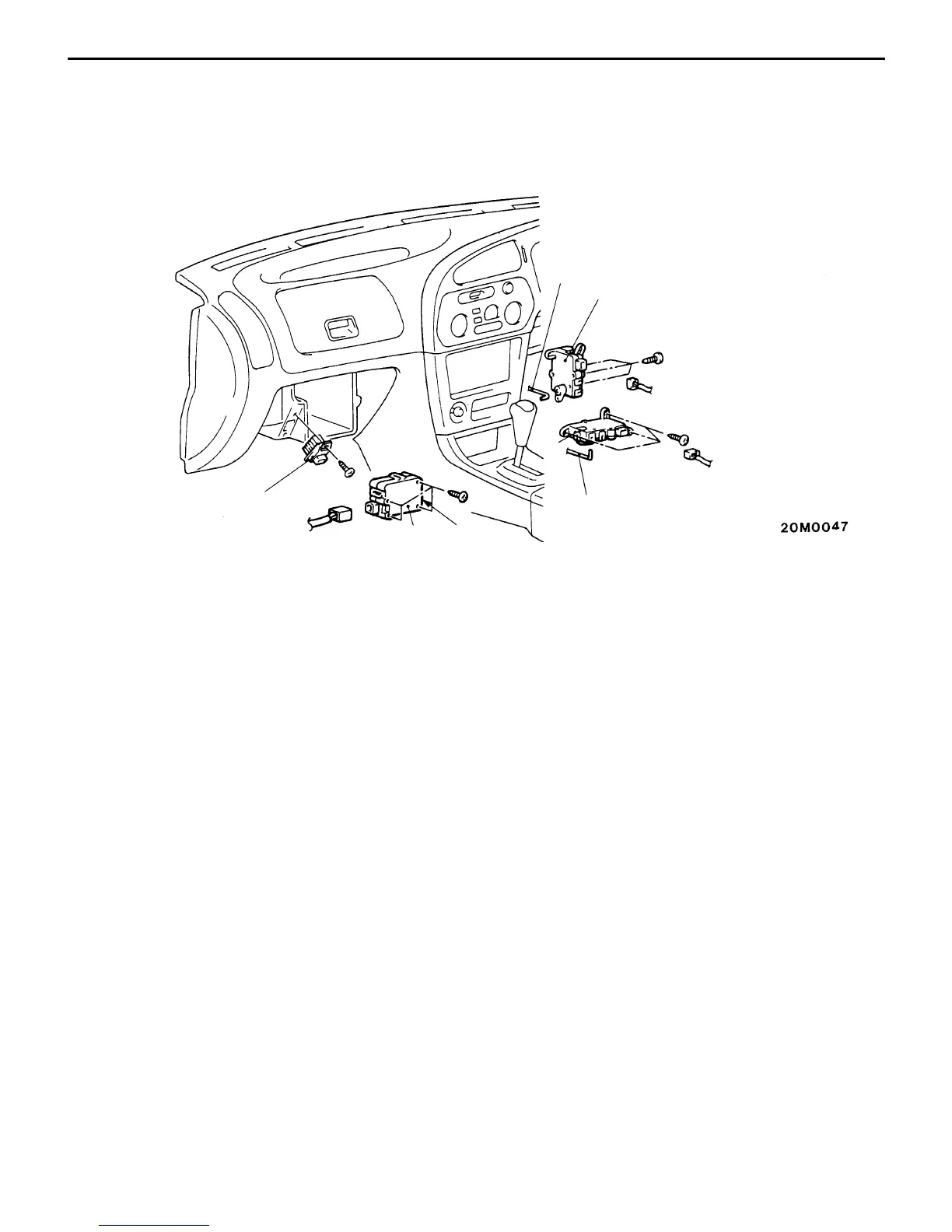

DAMPER CONTROL MOTOR ASSEMBLY AND POWER
TRANSISTOR
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
Inside/outside air changeover
damper motor removal steps
D Glove box, glove box frame
1. Linkage connection
2. Inside/outside air changeover
damper motor
Air outlet port changeover damper
motor removal steps
D Instrument lower panel
3. Linkage connection
4. Air outlet port changeover damper
motor
Air mix damper motor removal
steps
D Front floor console, console side cover
5. Linkage connection
6. Air mix damper motor
Power transistor removal steps
D Glove box, glove box frame
7. Power transistor
