ENGINE – Throttle Body
11-73

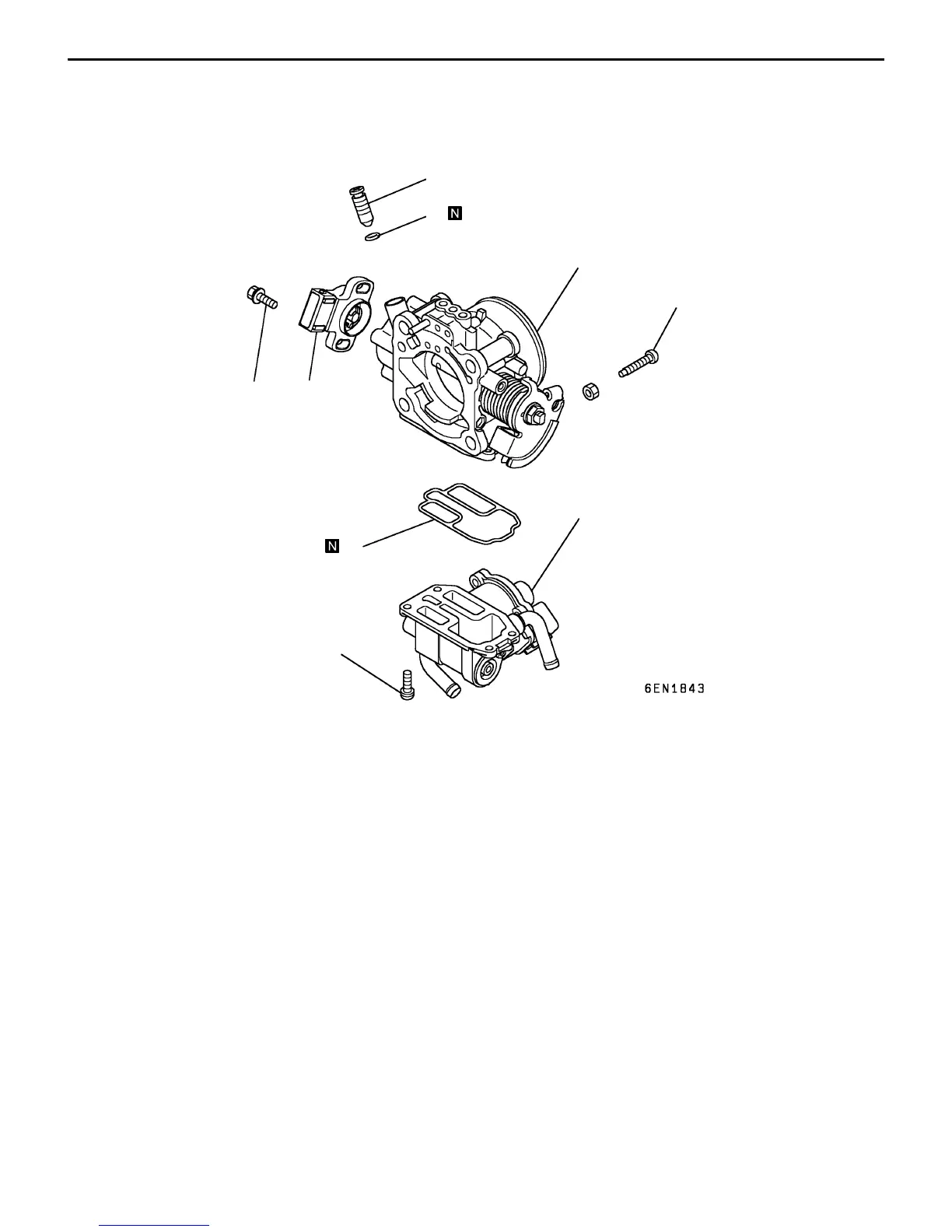

THROTTLE BODY
DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
3.5 Nm
3.5 Nm
Disassembly steps
AA""AA 1. Throttle position sensor (with built-
in closed throttle position switch)
2. Idle speed control body assembly
3. O-ring
AB" 4. Throttle body
5. Fixed SAS
6. Speed adjusting screw
8. O-ring
NOTE
1. The fixed SAS and the speed adjusting screw are
correctly adjusted at the factory and should not be
removed.
2. If the fixed SAS should happen to have been
removed, carry out fixed SAS adjustment.
3. If the speed adjusting screw should happen to have
been removed, carry out speed adjusting screw
adjustment.
