Mitsubishi Lancer Evolution VI User Manual

ENGINE – Throttle Body
11-74
DISASSEMBLY SERVICE POINTS
AA" THROTTLE POSITION SENSOR AND IDLE AIR
CONTROL MOTOR REMOVAL
(1) Do not disassemble the sensor and motor.
(2) Do not immerse solvent to clean the sensor and motor.
Clean then with shop towel.
AB" THROTTLE BODY REMOVAL
(1) Do not remove the throttle body.
(2) Check if the vacuum port or passage is clogged. Use
compressed air to clean the vacuum passage.
REASSEMBLY SERVICE POINT

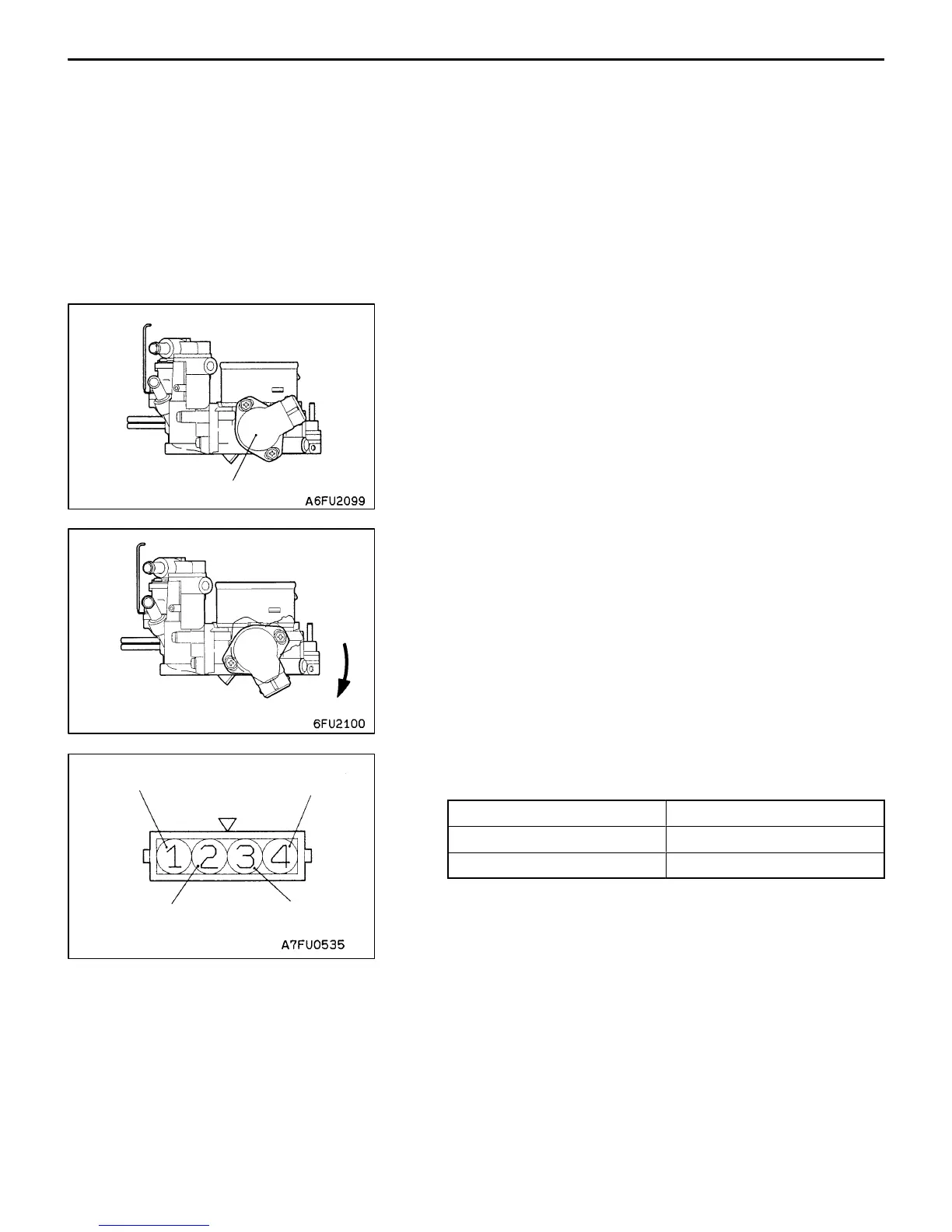

"AA THROTTLE POSITION SENSOR INSTALLATION
(1) Install the throttle position sensor to the throttle body
as shown in the diagram.
(2) Turn throttle position sensor 90° clockwise to set it, and
tighten screws.
(3) Check the continuity between terminal No. 3 (Idle throttle
position switch) and No. 4 (Earth).
Throttle valve condition Continuity
Fully closed Conductive
Fully open No conductive
If there is no continuity with the throttle valve fully closed,
turn the throttle position sensor counterclockwise, and
then check again.
Throttle position sensor
Earth
TPS power supply
TPS output
Idle position switch

Mitsubishi Lancer Evolution VI Specifications

General

Transmission	5-speed manual
Drivetrain	All-Wheel Drive
Engine Code	4G63
Compression Ratio	8.8:1
Fuel System	Multi-point Fuel Injection
Front Brakes	Ventilated discs
Rear Brakes	Ventilated discs
Wheelbase	2510 mm
Length	4350 mm
Width	1770 mm
Height	1415 mm
Engine Type	Inline 4
Horsepower	276 hp
Torque	275 lb-ft @ 3000 rpm
Top Speed	155 mph (electronically limited)
Displacement	1997 cc
Bore x Stroke	85.0 mm x 88.0 mm
Maximum Power	276 hp @ 6500 rpm
Maximum Torque	373 N⋅m (275 lb⋅ft) @ 3000 rpm
Front Suspension	MacPherson strut
Rear Suspension	Multi-link
Curb Weight	1360 kg
Fuel Tank Capacity	50 L
