FRONT SUSPENSION – General / Lower Arm <EVOLUTION-VI>
33A-1
GROUP 33A
FRONT SUSPENSION
GENERAL
OUTLINE OF CHANGE
D The installation method of the ball joint between the knuckle and the lower arm has been changed,
and accordingly the removal and installation procedures of the lower arm have been revised.
<EVOLUTION-VI>

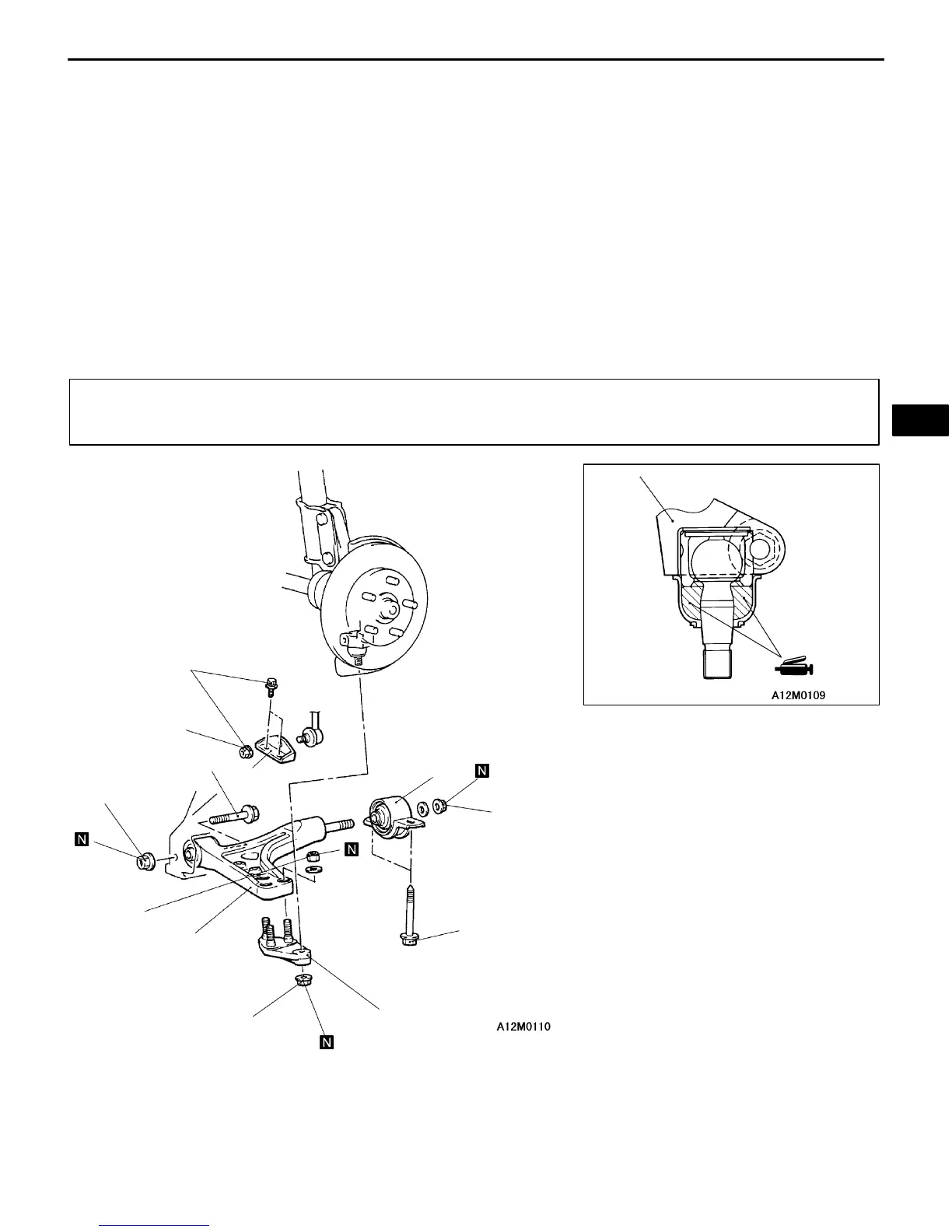

LOWER ARM <EVOLUTION-VI>
REMOVAL AND INSTALLATION
Caution
The part marked with * should be first temporarily tightened, then torqued to specification with the vehicle
on the ground in unloaded condition.
Post-installation Operation
D Push the Dust Cover of the Lower Arm and Stabilizer Link Ball Joint with a Finger to Check for Possible Cracks or Damage.
D Wheel Alignment Check and Adjustment
1
2
3
4
5
6
39 Nm
106 Nm*
5
98 – 118 Nm
74 – 87 Nm
88 Nm
137 Nm
Removal steps
1. Stabilizer link mounting nut
2. Bolt
3. Stabilizer bracket
"AA 4. Bushing assembly
5. Lower arm assembly
6. Lower arm bracket assembly
NOTE
Follow the conventional procedures for installation service
points.

Mitsubishi Lancer Evolution VI Specifications

General

Transmission	5-speed manual
Drivetrain	All-Wheel Drive
Engine Code	4G63
Compression Ratio	8.8:1
Fuel System	Multi-point Fuel Injection
Front Brakes	Ventilated discs
Rear Brakes	Ventilated discs
Wheelbase	2510 mm
Length	4350 mm
Width	1770 mm
Height	1415 mm
Engine Type	Inline 4
Horsepower	276 hp
Torque	275 lb-ft @ 3000 rpm
Top Speed	155 mph (electronically limited)
Displacement	1997 cc
Bore x Stroke	85.0 mm x 88.0 mm
Maximum Power	276 hp @ 6500 rpm
Maximum Torque	373 N⋅m (275 lb⋅ft) @ 3000 rpm
Front Suspension	MacPherson strut
Rear Suspension	Multi-link
Curb Weight	1360 kg
Fuel Tank Capacity	50 L
