SRS – Air Bag Module Disposal Procedures
52B-33

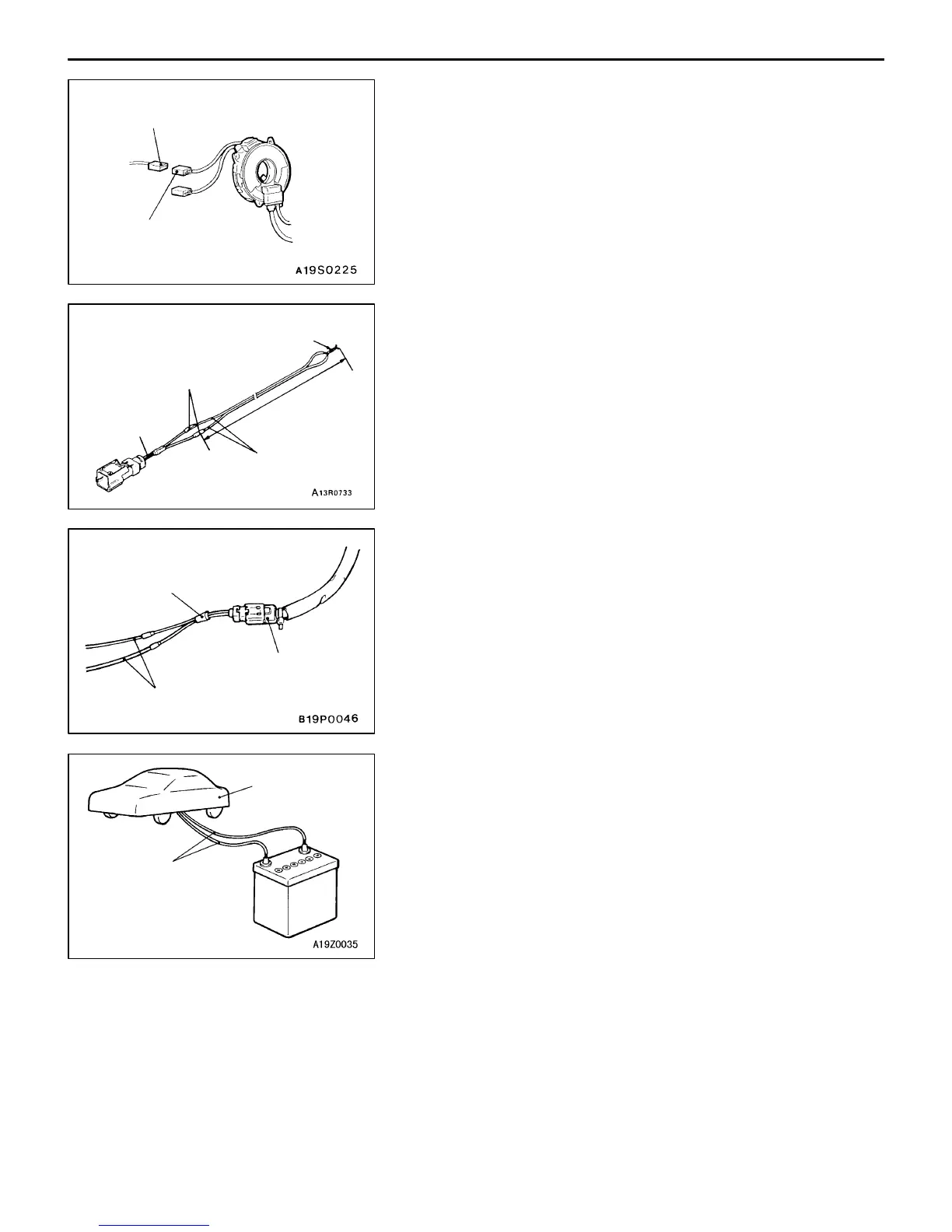

3. Peform the following procedure to deploy each air bag
module.
<Air bag module (driver’s side)>
(1) Remove the steering column cover lower.
(2) Remove the connection between the clock spring
2-pin connector (red) and the body wiring harness
connector.
NOTE
If the clock spring connector is disconnected from
the body wiring harness, both electrodes of the clock
spring connector will be automatically shorted to
prevent unintended deployment of the air bag due
to static electricity, etc.
(3) Connect two wires, each six meters or longer, to the
two leads of SRS air bag adapter harness A and
cover the connections with insulation tape. The other
ends of the two wires should be connected to each
other (short-circuited), to prevent sudden unexpected
deployment of the air bag.
(4) Connect the clock spring or air bag module (front
passenger’s side) 2-pin connector (red) to SRS air
bag adapter harness A and pass the deployment
wires out of the vehicle.
(5) Shut all the doors with their window glasses closed
and cover the vehicle with a body cover to suppress
explosion noise leaks as much as possible.
Caution
Be sure to wrap the vehicle entirely in a body cover,
otherwise damaged glass panes could break into
fragments, bringing about a very dangerous situation.
(6) At a location as far away from the vehicle as possible,
disconnect the two connected wires from each other,
and connect them to the two terminals of the battery
(which has been removed from the vehicle) to deploy
the air bag.
Clock spring 2-pin
connector (red)
Body wiring harness
connector (2-pin)
SRS air bag
adapter
harness A
MB686560
Connection
6 m or
longer
Two wires
Insulation
tape
SRS air bag adapter
harness A
MB686560
2-pin connector (red)
Deployment wires
Body cover
Deployment
wire harness
To Next Page
