CHASSIS ELECTRICAL – Radio and Tape Player
54-46
NOTE
1. Noise Suppressing Capacitor
The capacitor does not allow the passage of DC current but AC current. It decreases in impedance (resistance
to AC) as the number of waves increases, making the AC flow easier. A noise suppressing capacitor relying
on this property to function is inserted between a noise generating power line and earthing line to suppress
noise by earthing noise components (in AC or pulse signal) to the vehicle body.
2. Noise Filter
The coil allows the passage of DC current and increases in impedance (resistance to AC) as the number of
waves increases. A noise suppressing coil relying on this property to function is inserted somewhere in a noise
generating power line, preventing noise components from flowing or radiating from the line.

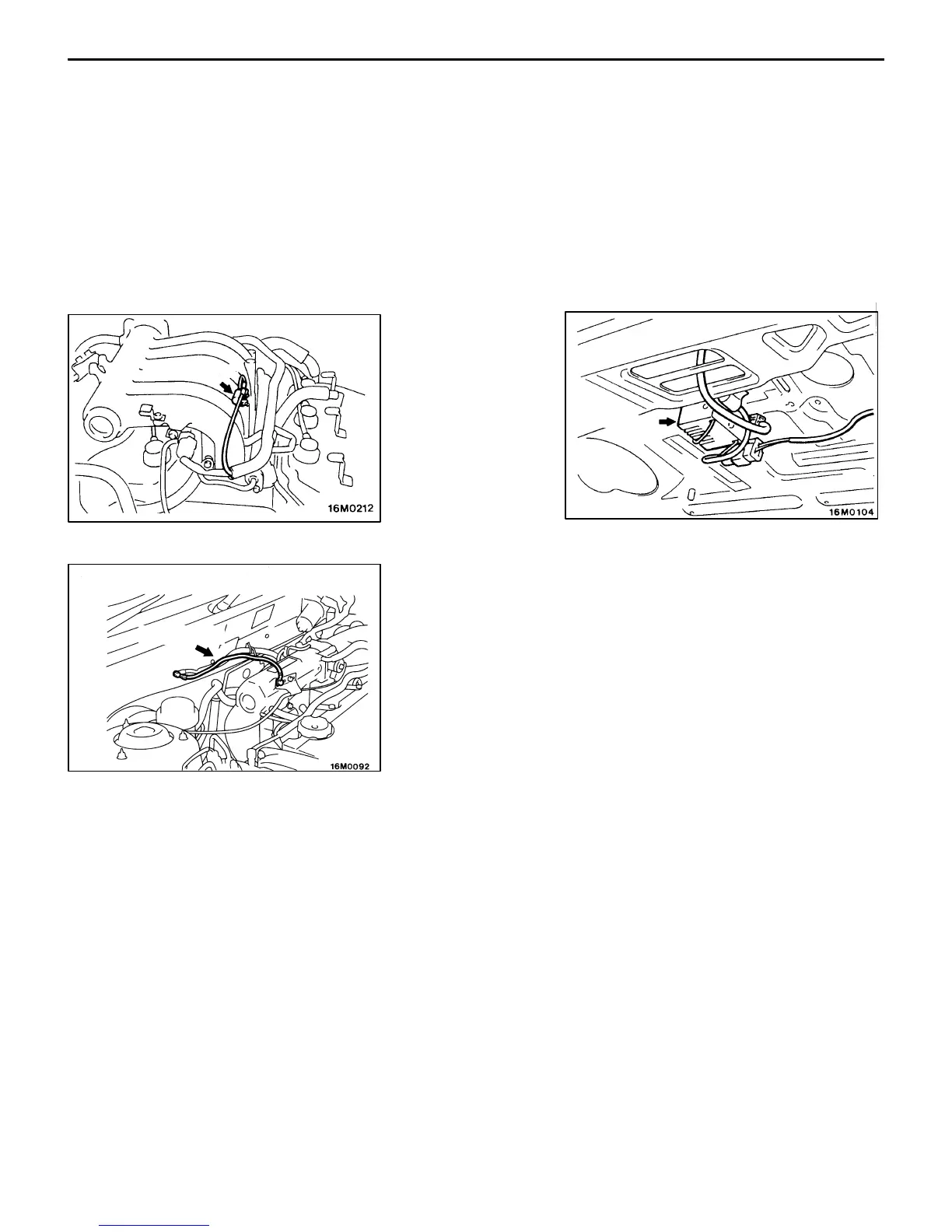

Fig: 1
Fig: 2
Fig: 3
Noise condensor
Choke coil
Choke coil
