– Condenser and Condenser Fan
HEATER AND MANUAL
AIR CONDITIONER
55-29

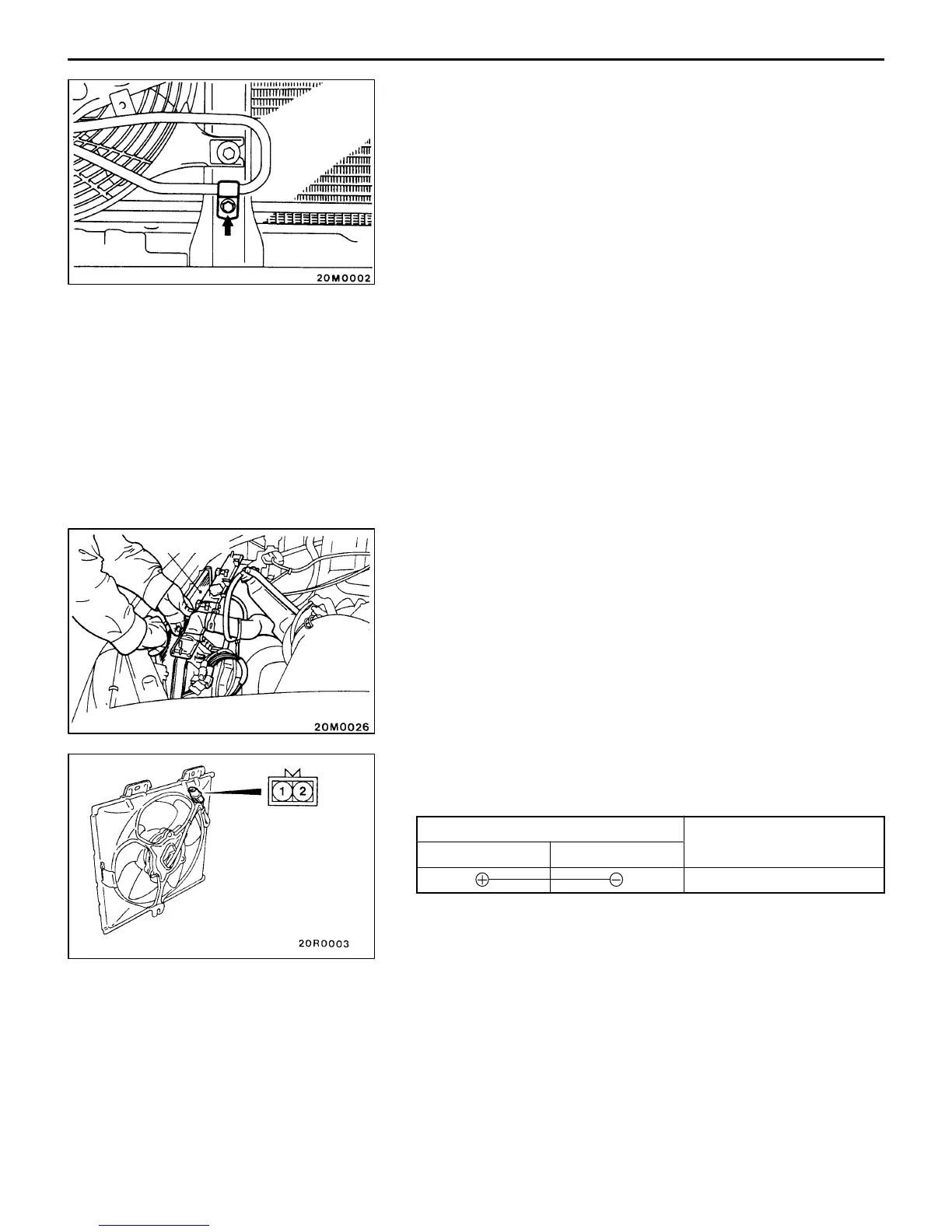

REMOVAL SERVICE POINTS
AA" FAN MOTOR AND SHROUD ASSEMBLY
REMOVAL
Remove the clamp bolt of the power steering oil cooler pipe.
Remove the fan motor and shroud assembly while pulling
the power steering oil cooler pipe toward you.
AB" DISCHARGE HOSE / LIQUID PIPE A
DISCONNECTION
Plug the open end of the disconnected hose and the opening
in the cooling unit not to let foreign matter get into them.
Caution
Seal the hoses completely, otherwise the compressor
oil and receiver will absorb water vapour easily.
AC" CONDENSER REMOVAL
Move the radiator to the engine side and then lift up the
condenser to remove it.
INSPECTION
CONDENSER FAN MOTOR CHECK
Battery connection terminal Condenser fan operation
1 2
Rotate
Condenser
