FULL-AUTOMATIC AIR CONDITIONER –
Damper Control Motor Assembly
and Power Transistor
55-60

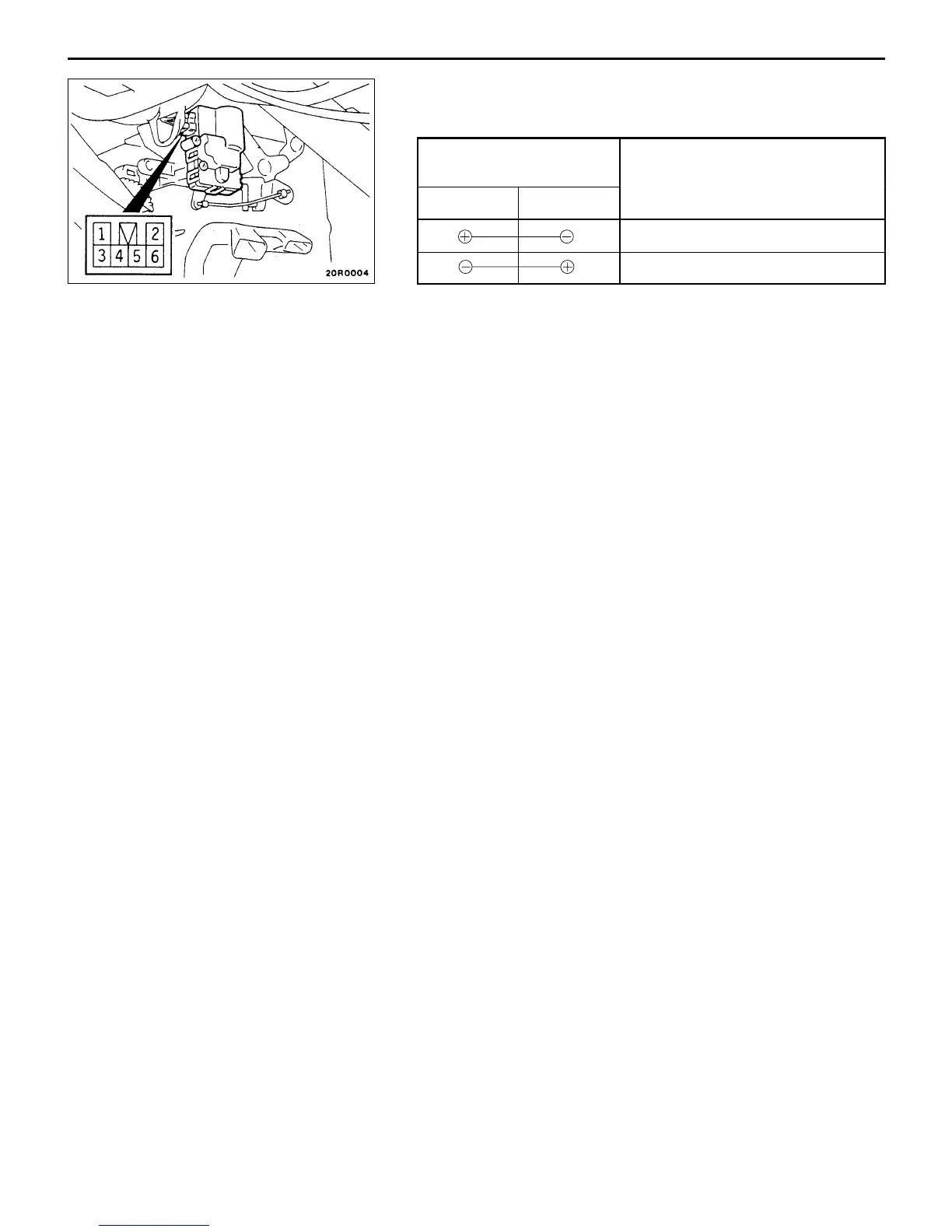

AIR OUTLET CHANGEOVER DAMPER MOTOR CHECK
Motor
Battery connection
terminal
Lever operation
1 3
Moves to DEF. position
Moves to FACE position
Caution
Cut off the battery voltage when the lever is in the stop
position.
Potentiometer
Check to ensure that the resistance value changes within
the standard value range when the resistance value is
measured between connector terminals 2 and 5 or between
5 and 6 with the above inspection condition unchanged.
Standard value: Approx. 0.18 – 4.82 kΩ
To Next Page
