Models SRR25, 35, 50ZM-S
7.1.2 Operation control function by indoor control

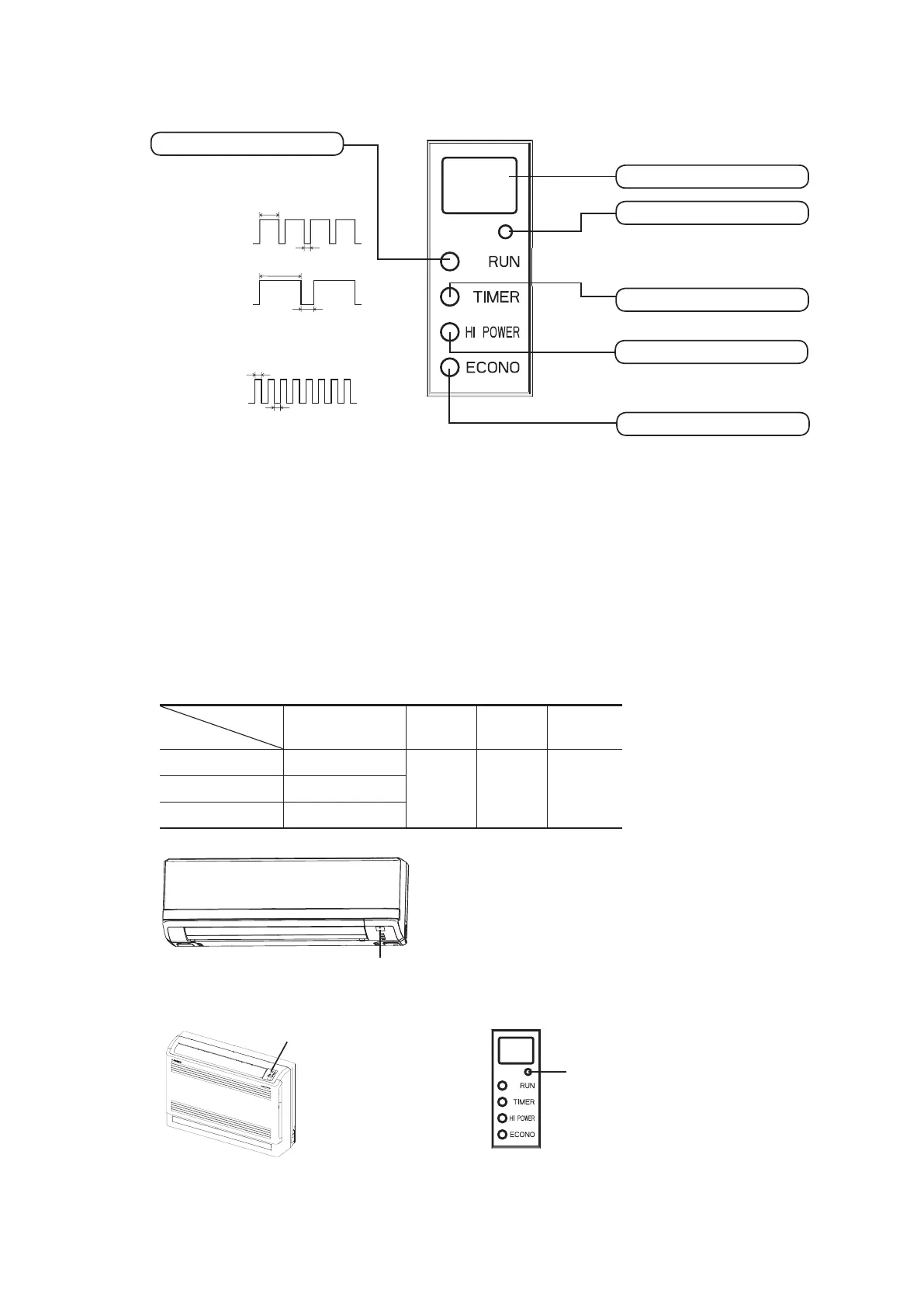

RUN (HOT KEEP) light (green)
• Illuminates during operation.
•
ECONO light (orange)
Illuminates during ECONOMY operation.
TIMER light (yellow)
Illuminates during TIMER operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
Unit ON/OFF button
This button can be used for turning on/
off the unit when a wireless remote control
is not available.
Wireless remote control signal receiver
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
3 sec.
1 sec.
ON
OFF
CLEAN operation
Operation mode
invalid
ON
OFF
0.5 sec.
0.5 sec.
Blinks when airflow stops due to the ‘HOT
KEEP’ and ‘CLEAN operation’
(1) Unit ON/OFF button
When the wireless remote control batteries become weak, or if the wireless remote control is lost or malfunctioning,
this button may be used to turn the unit on and off.
(a) Operation
Push the button once to place the unit in the automatic mode. Push it once more to turn the unit off.
(b) Details of operation
The unit will go into the automatic mode in which it automatically determines, from room temperature (as
detected by sensor), whether to go into COOL, DRY or HEAT modes.
Function
Operation mode
Room temperature
setting
Fan speed
Flap/Louver
Timer switch
COOL
About 24ºC
Auto Auto Continuous
DRY
About 25ºC
HEAT
About 26ºC
・
Models SRK20, 25, 35, 50ZMX-S
Unit ON/OFF button
Unit ON/OFF button
Unit ON/OFF button
・
Models SRF25, 35, 50ZMX-S
・
Models SRR25, 35, 50ZM-S
-
137
-
'16 • SCM-T-199
