7.3 SKM series
7.3.1 Operation control function by wireless remote control
-
161
-
'16 • SCM-T-199
Operation section

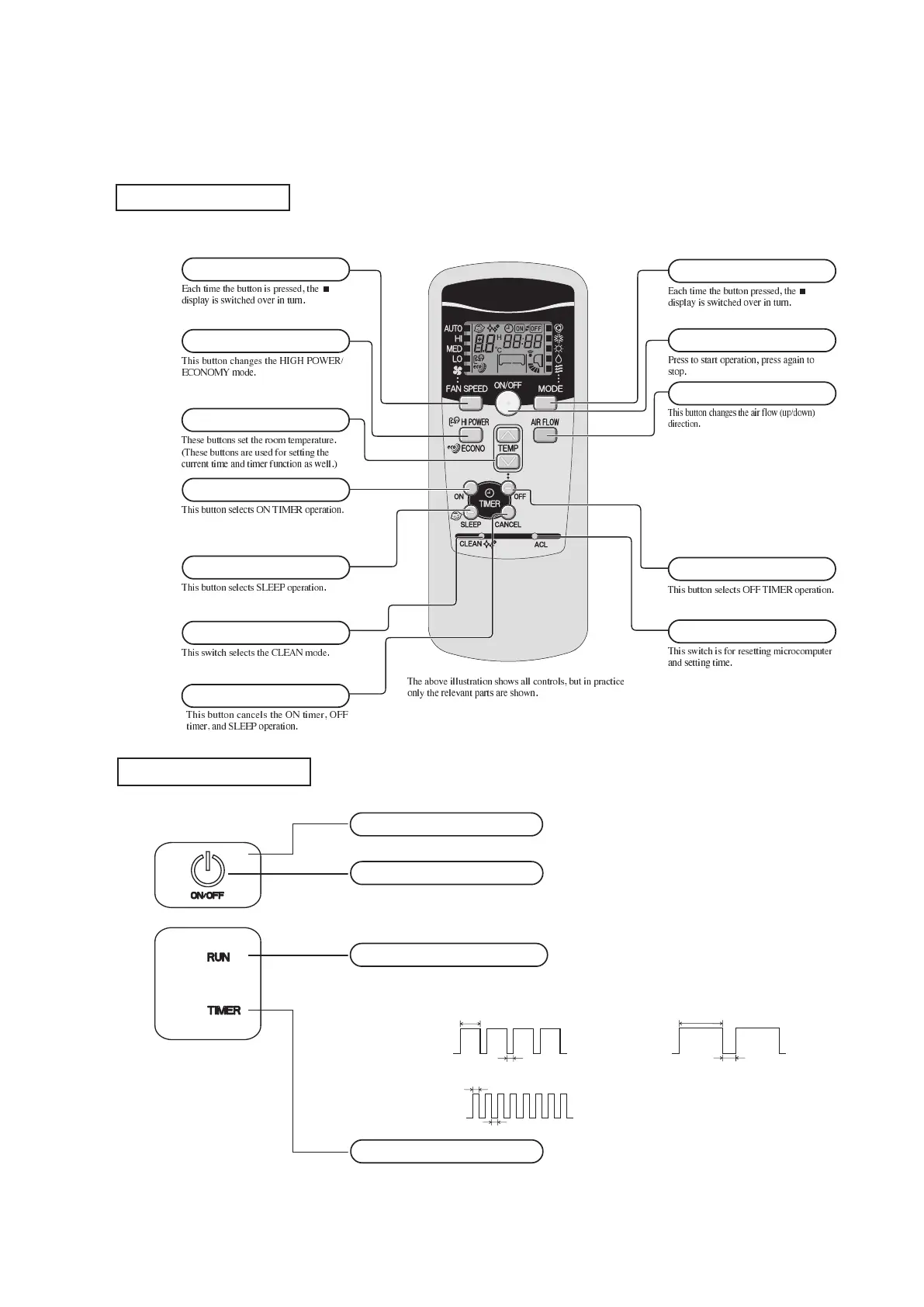

FAN SPEED button
•
OPERATION MODE select button
ON/OFF (luminous) button
HI POWER/ECONO button
AIR FLOW (UP/DOWN) button
SLEEP button
CLEAN switch
ON TIMER button
ACL switch
OFF TIMER button
TEMPERATURE button
CANCEL button
– 5 –
Unit display section
Name of each part and its function
• Buzzer sound for remote control
When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced.
When turning off the air conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced.
This function is useful for operating the air conditioner in the darkness.
NOTE
Preset temperature
Air flow setting
Wireless remote control Wireless remote
control holder
Battery
(R03 (AAA, Micro) x2)
Wood screw (Quantity:2)
(for remote control holder mountin
g
)
This button can be used for turning on/off the unit when wireless remote control is not available.
Wireless remote control signal receiver
Unit ON/OFF button
RUN (HOT KEEP) light (green)
• Illuminates during operation.
•
Blinks when airflow stops due to the ‘HOT KEEP’ and ‘ CLEAN operation ’.
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
1 sec.
ON
OFF
CLEAN operation
TIMER light (yellow)
Illuminates during TIMER operation.
3 sec.
RLC012A002_EN_001-020 11/13/12, 11:39 AM5
ON
OFF
0.5 sec.
0.5 sec.
Operation mode
invalid
