Chapter 1 Getting Started with the cDAQ Controller

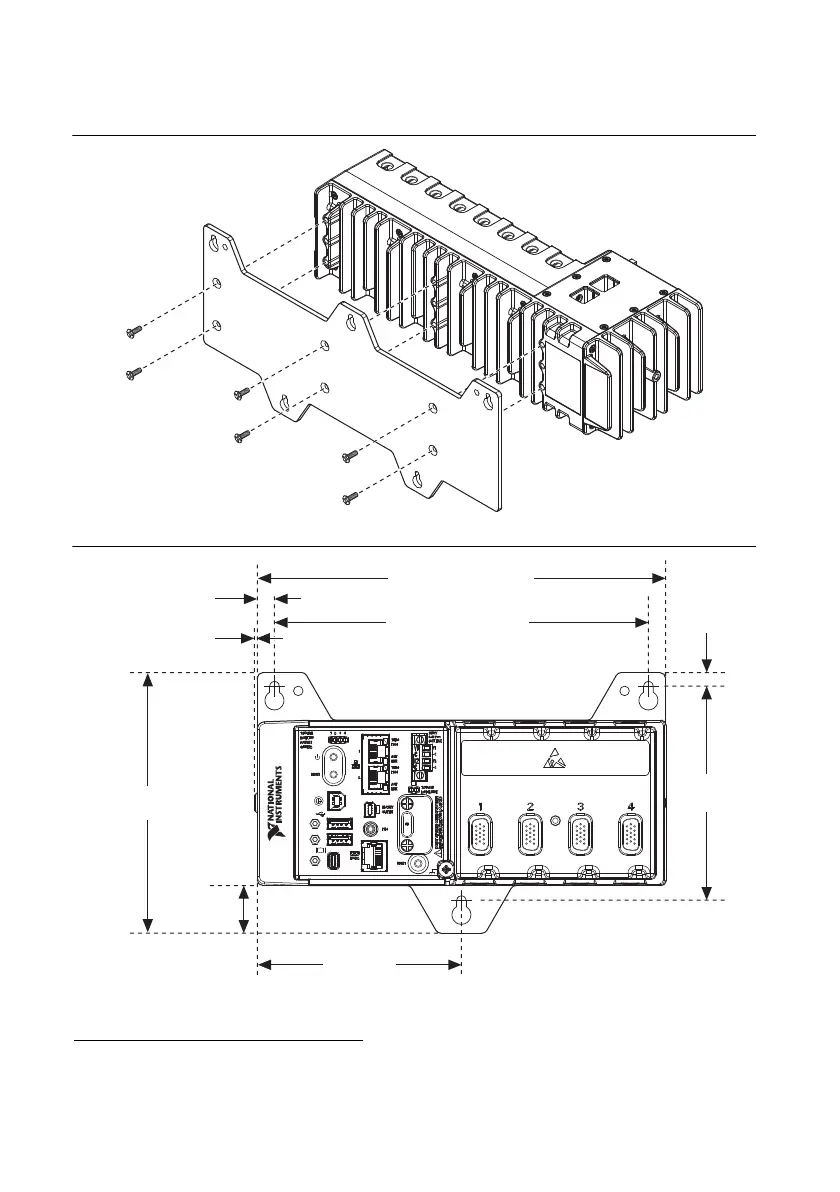

Figure 1-12. Installing the Mounting Plate on the cDAQ Controller
(cDAQ-9133/9135/9137 Shown)
Figure 1-13. Dimensions of the cDAQ-9132/9134/9136 with Mounting Plate Installed
1
The NI cDAQ-9132/9134/9136 controller panel mounting plate requires four screws.
The NI cDAQ-9133/9135/9137 controller panel mounting plate requires six screws.
25.41 mm
(1.000 in.)
114.3 mm
(4.500 in.)
7.24 mm
(0.285 in.)
199.39 mm (7.850 in.)
1.58 mm (0.062 in.)
138.94 mm
(5.470 in.)
9.14 mm (0.360 in.)
217.68 mm (8.570 in.)
108.84 mm
(4.285 in.)
NI cDAQ-9134NI cDAQ-9134
NI CompactDAQNI CompactDAQ
