Appendix A Device-Specific Information
© National Instruments Corporation A-11 E Series User Manual
Note The devices in the DAQPad-6015/6016 family do not support SCXI, RTSI, or
referenced single-ended (RSE) AI mode.

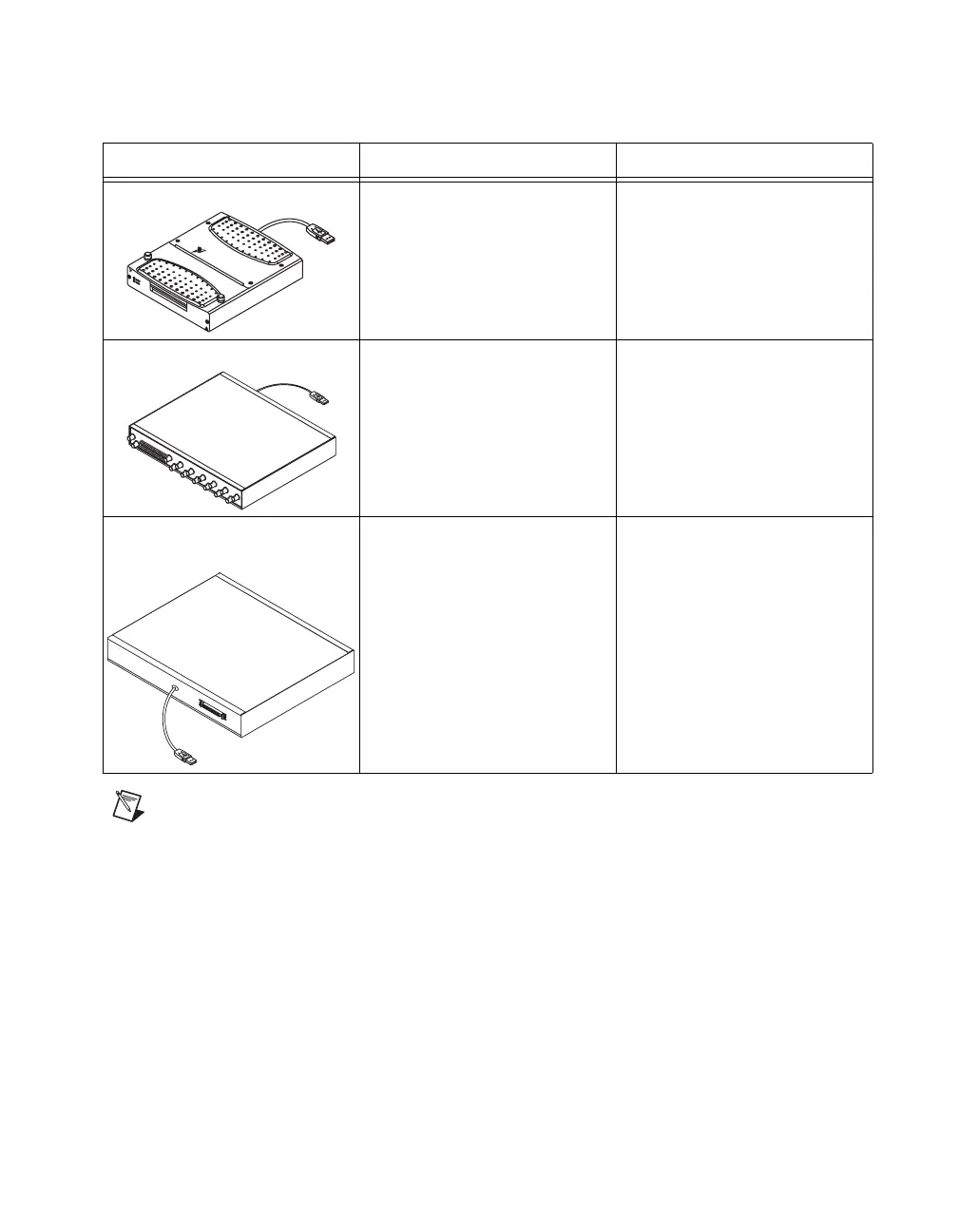

Table A-1. NI DAQPad-6015/6016 Versions
Model I/O Connector Form Factor
DAQPad-6015/6016 DAQPad-6015:
64 screw terminals
DAQPad-6016:
96 screw terminals
Prototyping areas
(8.0 in. × 6.75 in. × 1.4 in.)
Stackable
Integrated strain relief
A removable lid
DAQPad-6015 BNC Eight AI BNCs
Two AO BNCs
Four digital BNCs
A spring-loaded Combicon
connector for other digital
signals
(12.1 in. × 10 in. × 1.7 in.)
Rack-mountable, stackable
DAQPad-6015 mass
termination
68-pin SCSI-II connector to
connect to an SCC system or
other accessories
(12.1 in. × 10 in × 1.7 in.)
Rack-mountable, stackable
