Chapter 1 Getting Started
Front Panel LEDs
• Power indicator
• Power shuttle indicators
• LAN status indicators
• HDD indicator
• System temp (overheat) and fan (fail) warning indicator
System Management
• Monitoring for CPU and chassis environment
• CPU thermal trip support
• +5 V standby alert LED
• Fan speed control
RMC-8356 Description

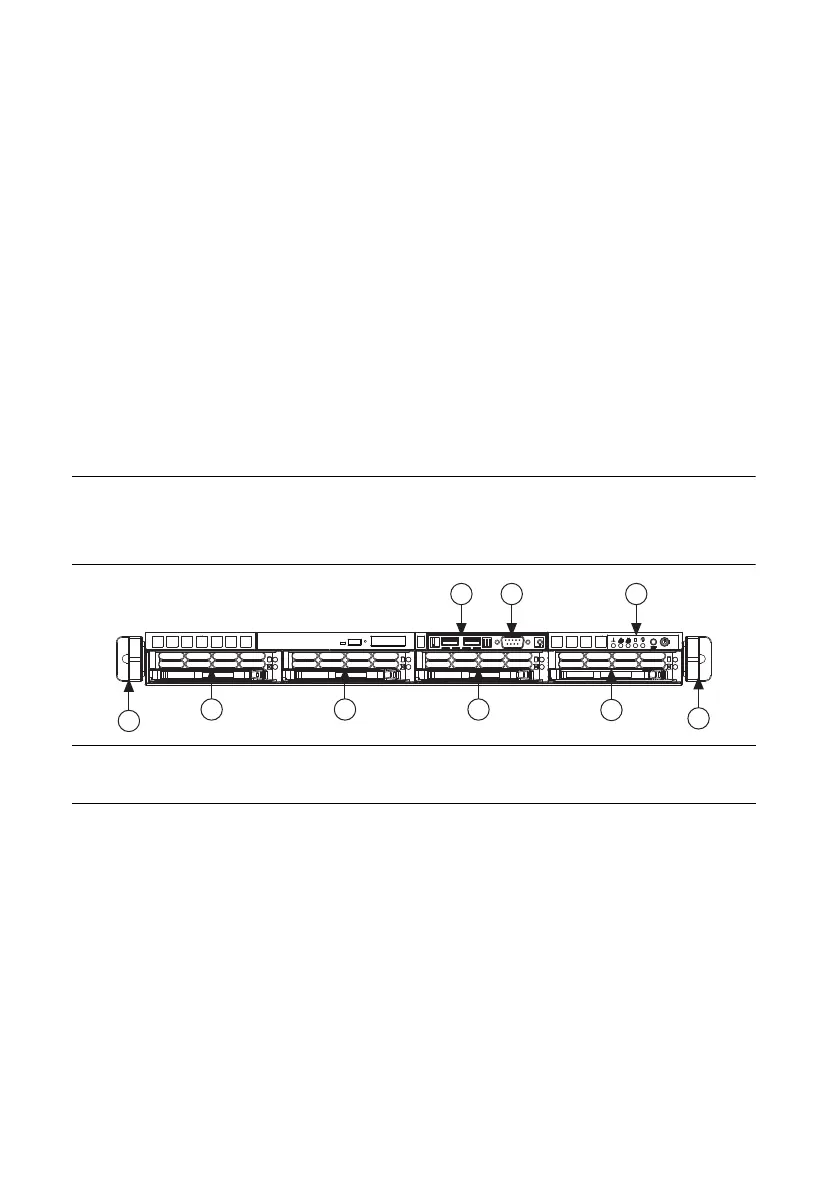

Figure 1-1 shows the key features of the RMC-8356 front panel. For detailed information about
the RMC-8356 rear panel, refer to Chapter 3, I/O Information.
Figure 1-1. Front View of the RMC-8356
The front of the chassis includes the following features:
• SATA HDD—Hot-swap 3.5" SATA hard disk drive.
• USB Ports—Two front-access USB 3.0 ports.
• COM Port—Front-access COM (Serial) port.
• Control Panel—Front control panel with LEDs and buttons.
• Rack Ear Brackets—Attaches server chassis to the rack.
1 SATA HDD
2USB Ports
3COM Port
4 Control Panel
5 Rack Ear Brackets
2 3 4
1
1
1
1
5
5
