National Instruments RMC-8356 User Manual

© National Instruments | 3-1
3
I/O Information
This chapter describes the RMC-8356 I/O connectors.
Rear Panel Connectors
Serial
Two COM connectors (COM1 & COM2) are provided on the motherboard. Both are located
near the PCI-E slot 4.
SATA
The motherboard includes a total of four SATA connectors, supported by the Intel C236 PCH
chip. These SATA connectors support RAID 0 and 1.
Rear I/O
Refer to the following figure for locations and descriptions of the various I/O connectors on the
rear of the motherboard.

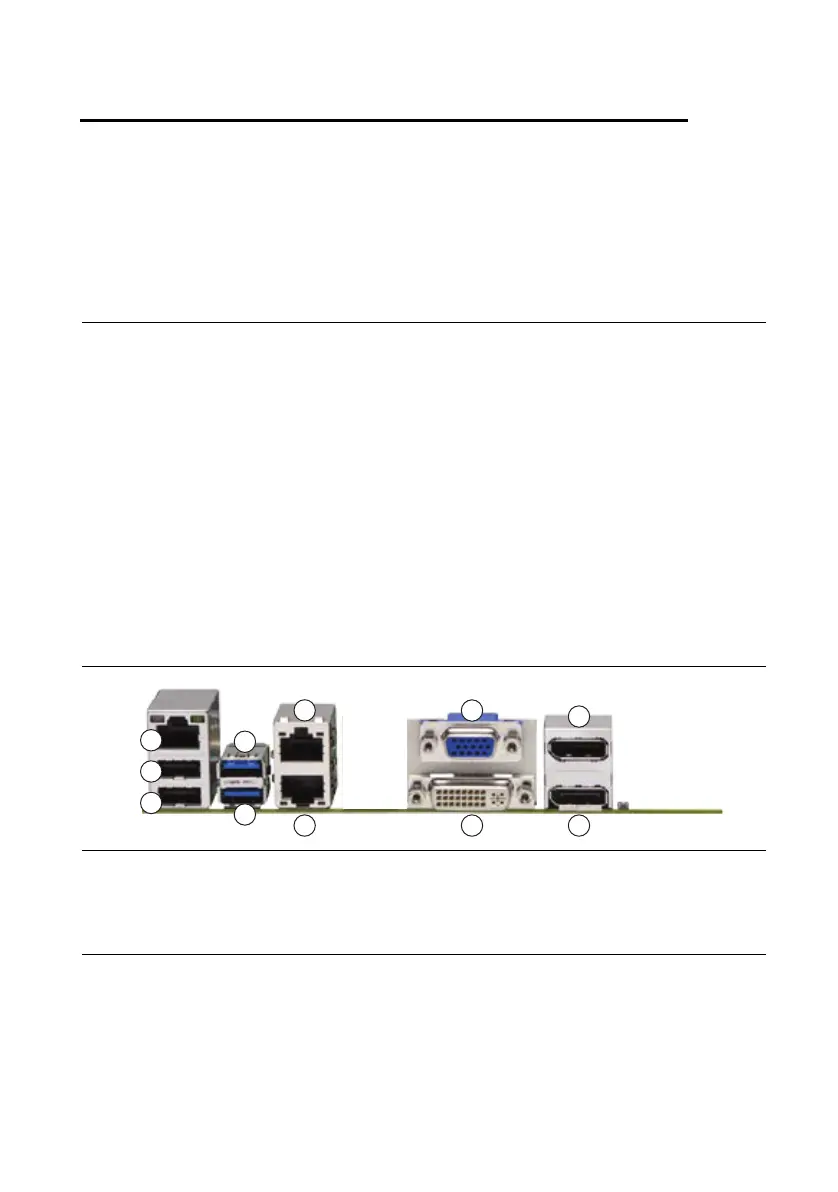

Figure 3-1. Rear I/O Connectors
LAN
There are two LAN connectors (LAN1/LAN2) on the I/O back panel. There is also a dedicated
IPMI LAN connector on the I/O back panel. These connectors accept RJ45 type cables. Refer to
the LED Indicators section of Appendix B, Hardware Configuration, for more information.
1IPMI LAN 5USB2 (3.0) 9DVI
2USB1 (2.0) 6LAN2 10 DisplayPort2
3USB0 (2.0) 7LAN1 11 DisplayPort1
4USB3 (3.0) 8 VGA (Disabled by default)
1
9
8
7
6
5
4
3
2
10
11
1
4
5
6
7 9
11
8
10
2
3
