SECTION1–ENGINESYSTEMS

EngineEmissionLabel

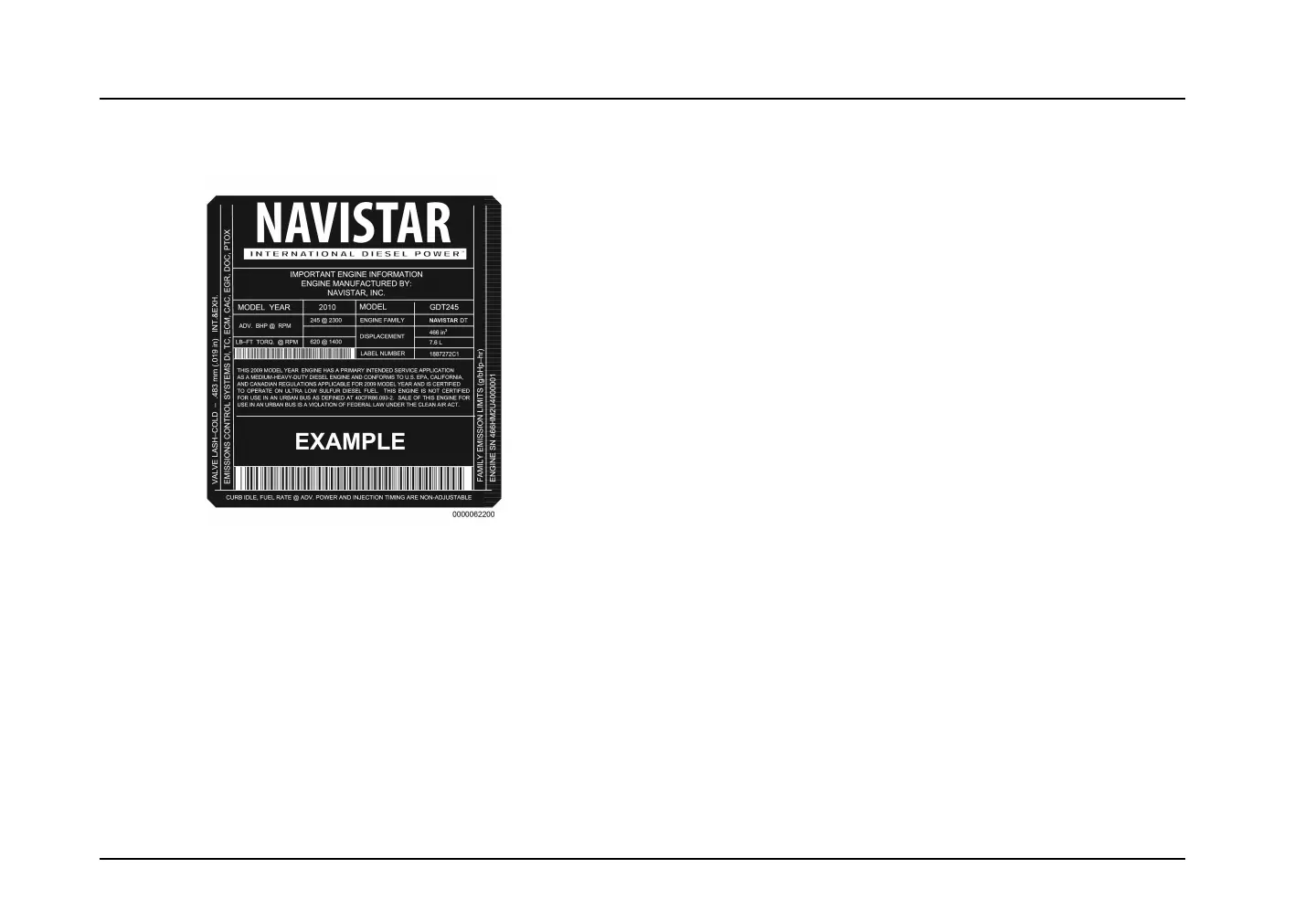

Figure2U.S.EnvironmentalProtectionAgency(EPA)

exhaustemissionlabel(example)

TheU.S.EnvironmentalProtectionAgency(EPA)exhaust

emissionlabelisattachedontopofthevalvecover.TheEPA

labeltypicallyincludesthefollowing:

•Modelyear

•Enginefamily,model,anddisplacement

•Advertisedbrakehorsepowerandtorquerating

•Emissionfamilyandcontrolsystems

•Valvelashspecications

•Engineserialnumber

•EPA,EURO,andreservedeldsforspecicapplications

EngineAccessoryLabelsandIdentication

Plates

Thefollowingengineaccessoriesmayhavemanufacturer's

labelsoridenticationplates:

•Aircompressor

•Airconditioningcompressor

•Alternator

•Coolingfanclutch

•Powersteeringpump

•Startermotor

•EngineControlModule(ECM)

Page14
