SECTION1–ENGINESYSTEMS
EngineComponentLocations
COMPONENTLOCATION-TOP

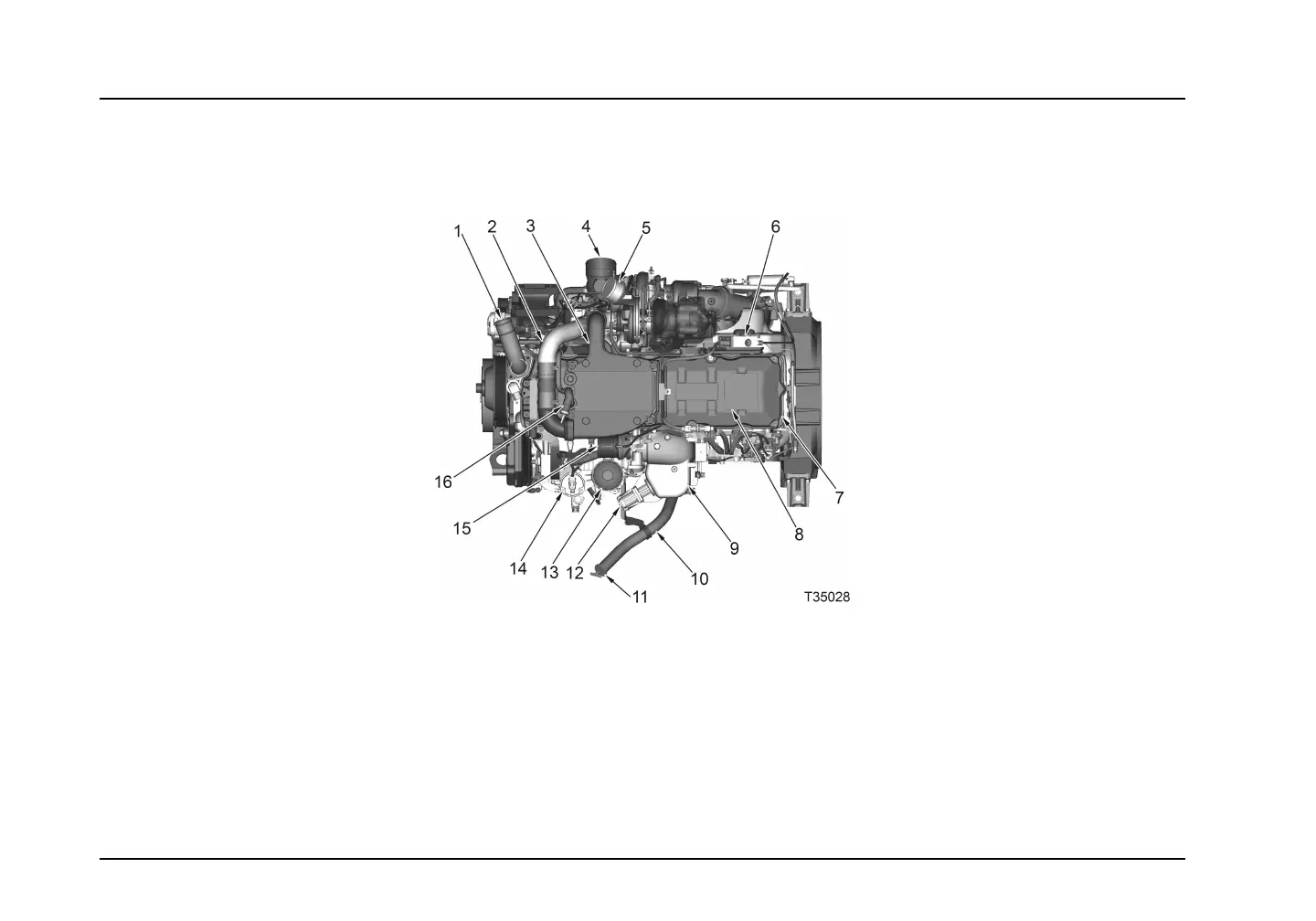

Figure3Top
1.Wateroutlettubeassembly
2.Interstagecoolerinletduct(245HPand
above)
3.Interstagecooler(245HPandabove)
4.Turbochargerairinletduct
5.High-pressureturbochargeroutlet
6.Exhaustbrakevalveassembly
7.Valvecover
8.Exhaustemissionlabel(location)
9.AirandExhaustGasRecirculation(EGR)
mixerduct
10.Oilllertube
11.Oillevelgauge
12.EGRvalve
13.Fuellterassembly
14.Electronicfuelpump(fuelstrainer
location)
15.Throttlecoupling
16.Deaerationhoseelbow
Page24
