SECTION5–MAINTENANCESCHEDULEANDSERVICEPROCEDURES
21.WaitfortheWAITTOSTARTlamptostopilluminating.
Donotcrankengineuntilthelampisoff.WhentheWAIT
TOSTARTlampgoesoff,turnignitionswitchtoSTART.If
thevehiclehaspushbuttonstarting,pressandholdstarter
button.
22.Whentheenginestarts,releasetheignitionswitchorstarter
button.TheignitionswitchwillreturntoONandtheengine
willcontinuetorun.Checkforleaks.Turntheignitionswitch
toOFF .
FUELSTRAINER
ServiceInterval:30,000miles(43,300km),12months,1,100
hoursor15898liters(4200gallons)offuel
NOTE:Iffuelusedhasmorethanaverageimpurities,
shorterserviceintervalsmayberequired.
NOTE:Thefuelstrainerislocatedundertheelectricfuel
pump.Thepumpmustbedisconnectedfromtheengine
wiringharnessandremovedfromthefuellterhousingfor
thefuelstrainertobecleanedorreplaced.Seefollowing
procedure.
WARNING
Topreventpersonalinjuryordeath,donotsmoke
andkeepfuelawayfromamesandsparks.

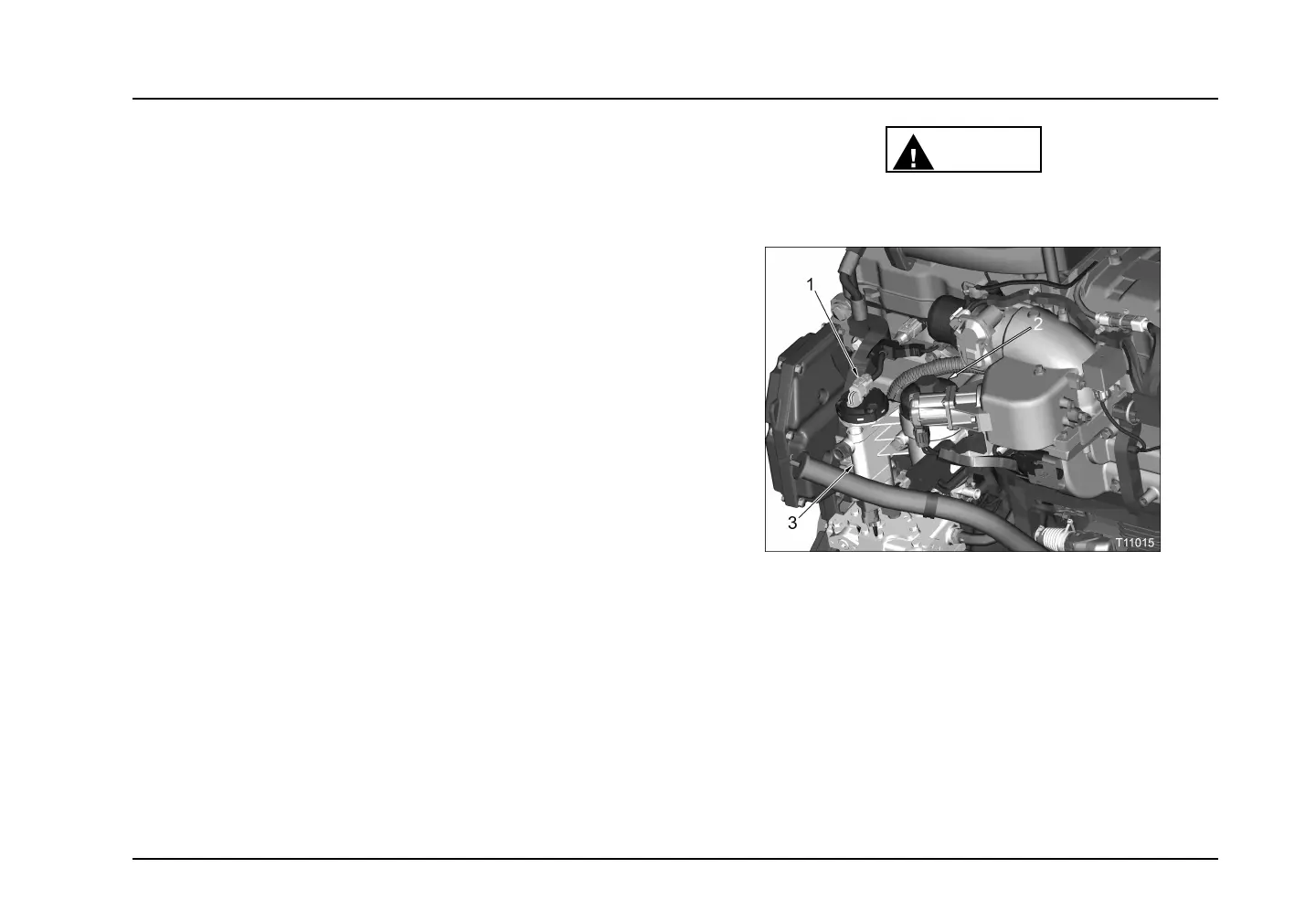

Figure39Electricfuelpumpandfuelstrainerlocation
1.Electricalfuelpumpwiringharnessconnector
2.Fuelltercap
3.Fuellterhousing
Page79
