Scheduling
You can use scheduling to enable or disable a service at a specific time or on a specific day.
Select Enable and then click the Add New Rule button.
Select a name for the rule and enter the details such as the day, start time or end time and click the Save button

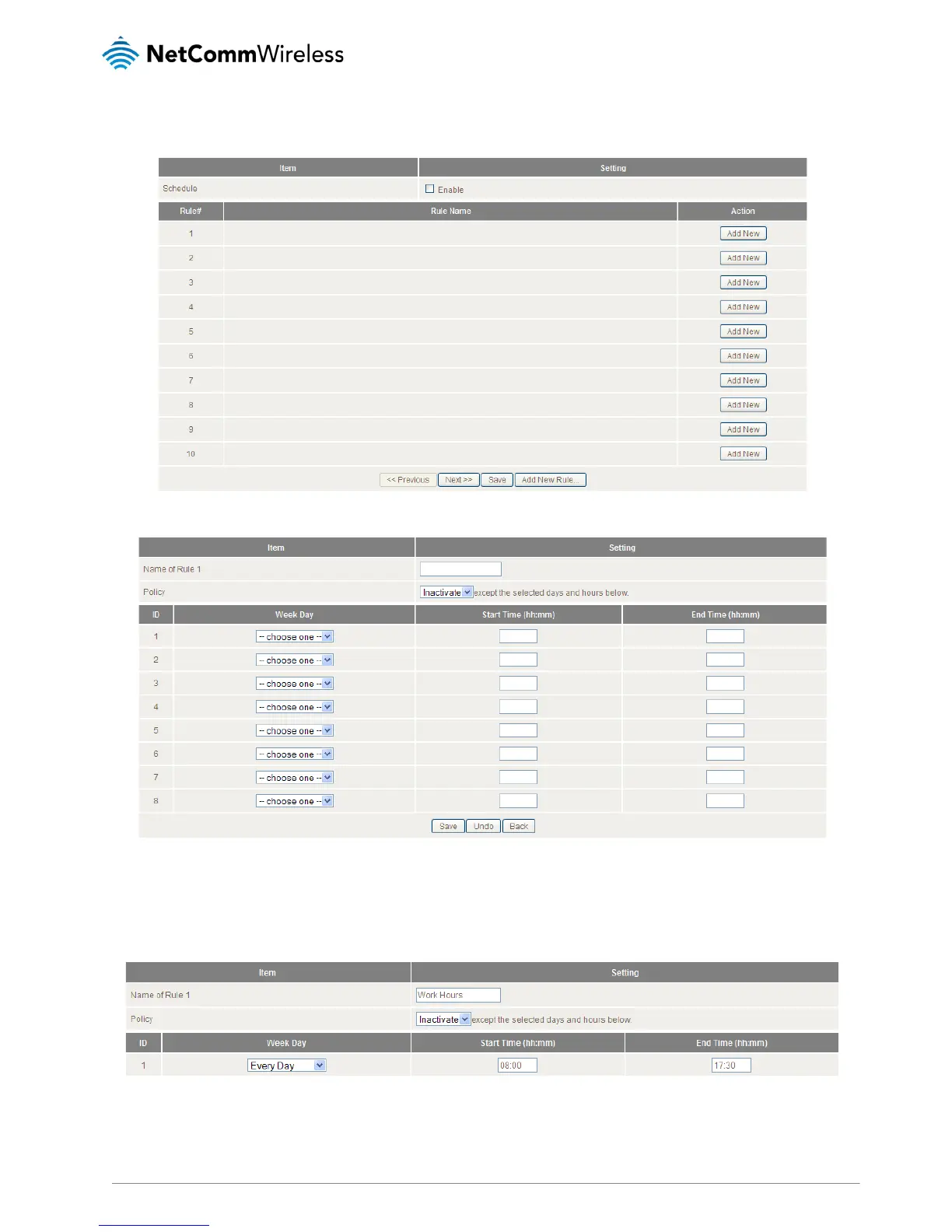

In the example below, the rule is called “Work Hours” and it is only active between 08:00 and 17:30.
You are then able to select the scheduling rule name specified from the Packet Filter configuration section to perform the
configured filtering at the scheduled time as per the screenshot below.
This example would prevent any access to the IP address 66.102.11.104 from any device connected to the router, 7 days a
week, only between the hours of 08:00 and 17:30.
Click the Save button to save the settings or the Undo button to cancel.
