Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Advanced Configuration 7-11
v3.0, December 2005
Using LAN IP Setup Options
The LAN IP Setup feature is under the Advanced heading of the main menu. This feature allows
configuration of LAN IP services such as DHCP and RIP. From the main menu of the browser
interface, under Advanced, click LAN IP Setup to view the LAN IP Setup menu, shown below.
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a
DHCP server. The router’s default LAN IP configuration is:
• LAN IP address—192.168.1.1
• Subnet mask—255.255.255.0
These addresses are part of the IETF-designated private address range for use in private networks,
and should be suitable in most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in this menu.

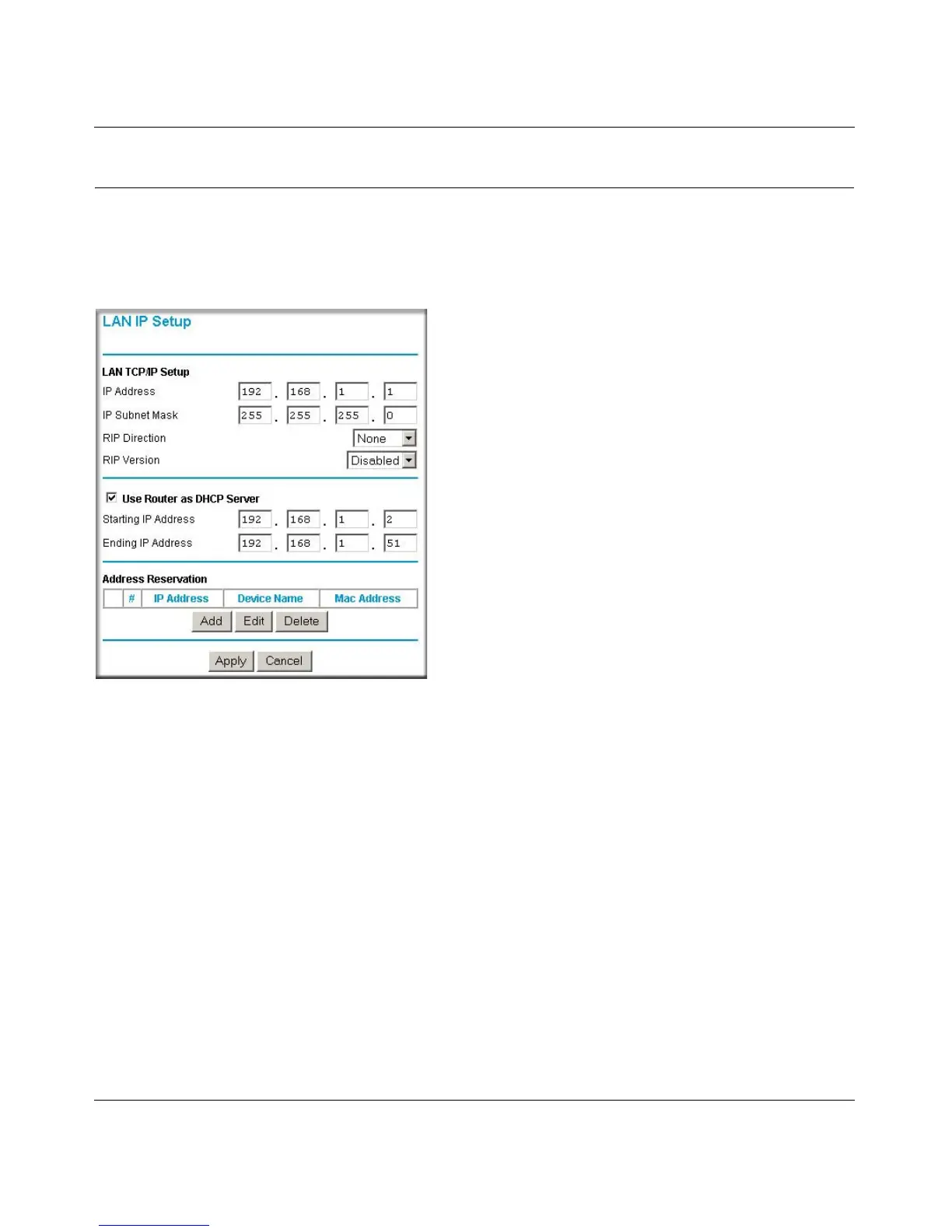

Figure 7-5
