Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Advanced Configuration 7-15
v3.0, December 2005
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.
How to Configure Static Routes
Static routes provide additional routing information to your router. Under normal circumstances,
the router has adequate routing information after it has been configured for Internet access, and
you do not need to configure additional static routes. You must configure static routes only for
unusual cases such as multiple routers or multiple IP subnets located on your network.

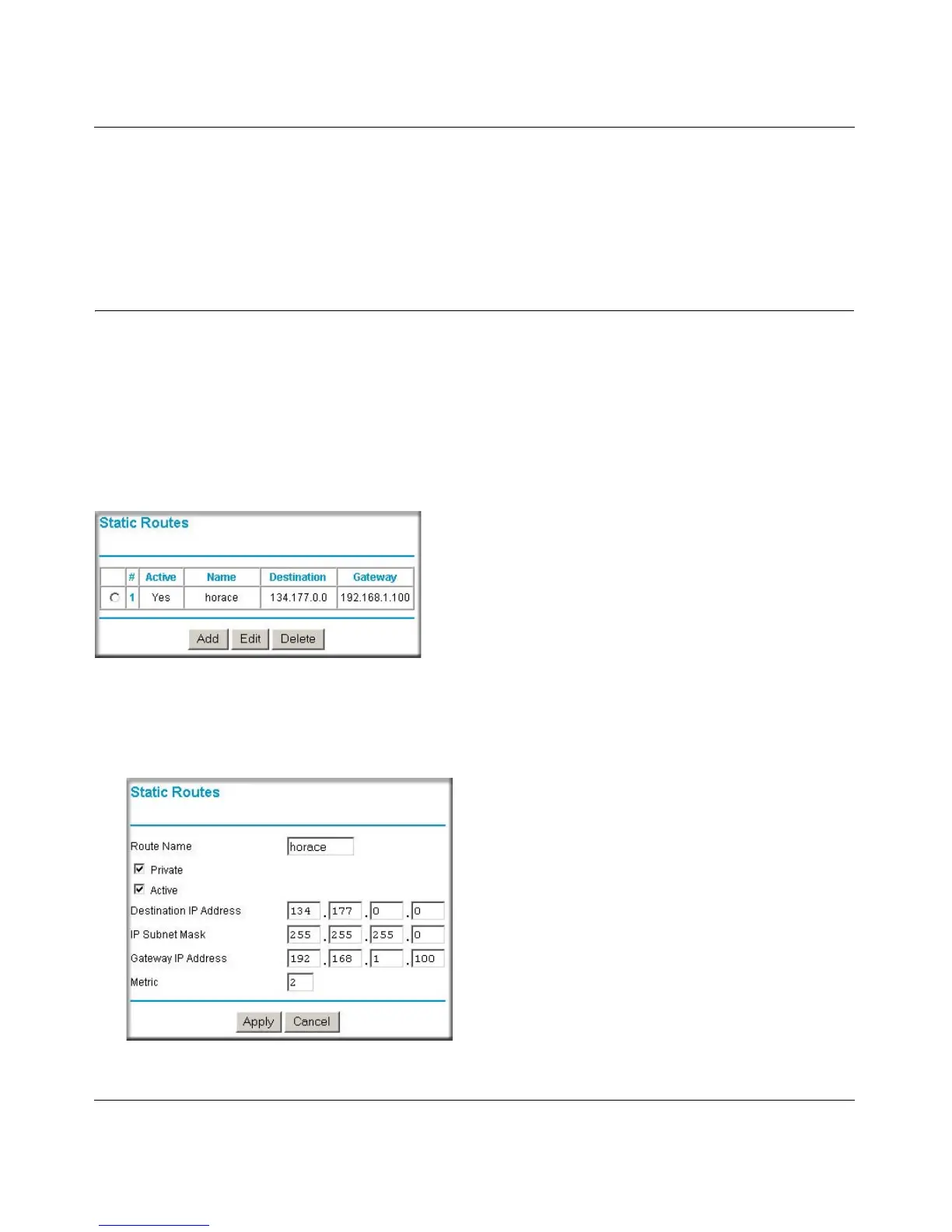

From the main menu of the browser interface, under Advanced, click Static Routes to view the
Static Route menu, shown below.
To add or edit a Static Route:
1. Click Add to open the Add/Edit Menu, shown below.
Figure 7-7
Figure 7-8
