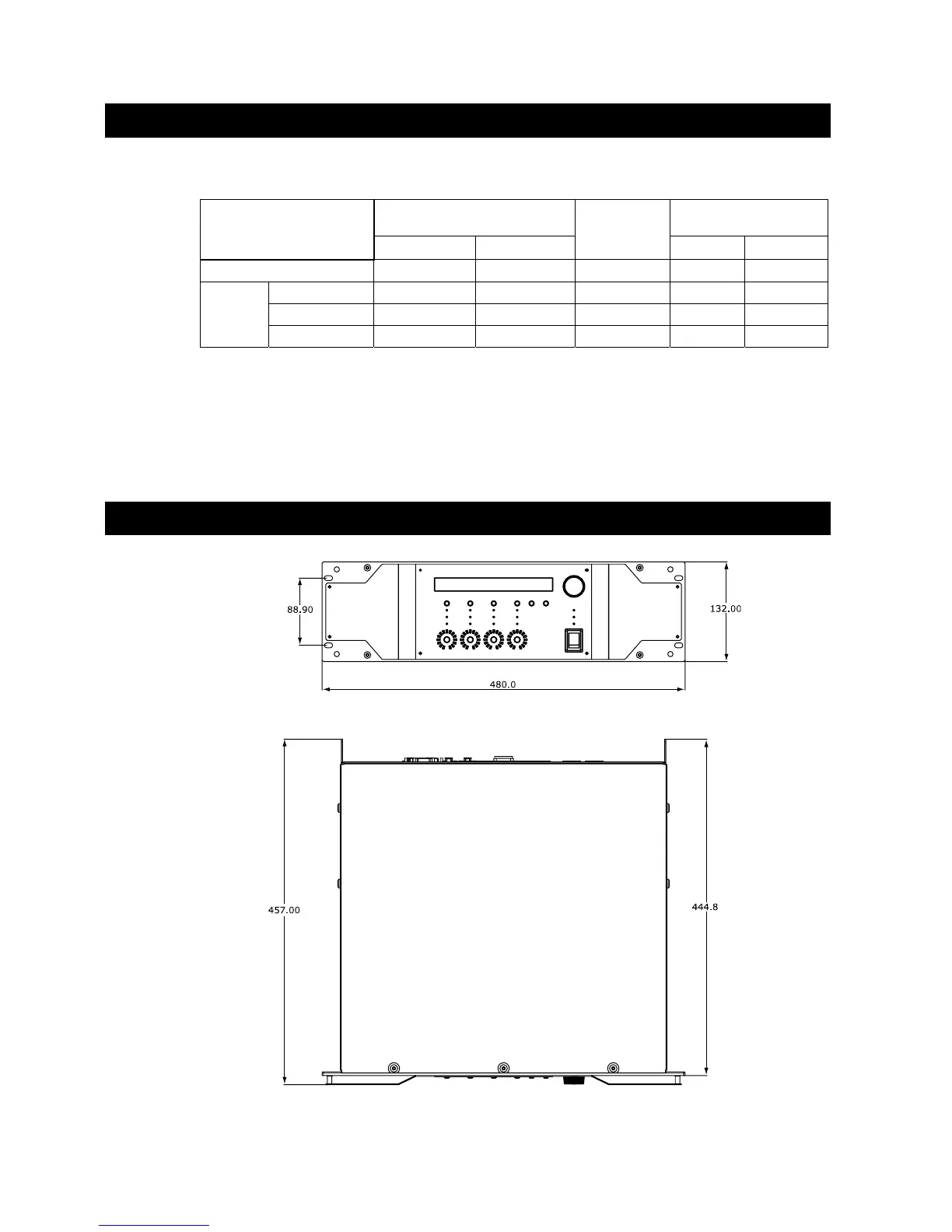

THERMAL DISSIPATION AND CURREN
T DRAWN
T
her
mal dissipation and cur
r
ent drawn
Test signal: Pink Noise,
bandwidth limited 22Hz to 22 kHz
. All channels driven.
Line Current (A)
Thermal
Dissipation
NXAMP4x1
120V 230V
Watts
Dissipated
Btu/h kcal/h
Idle 1.6
0.9
95 326
82
8ohms/ch 11.1
6.1
390 1337
337
4ohms/ch 16.7
9.2
590 2023
510
1/8out
2ohms/ch 21.8
12.0
620 2126
536
1 BTU = 1,055.06 J = 0.252 kcal
(W)*864=cal
N.B. These values are for NXAMP4x1 without NXES104 board fitted. If card is fitted, please
add 5 Watts to these values.
Dimensions
PAGE 66 OF 80
