nilan Compact P Installation Instructions

19

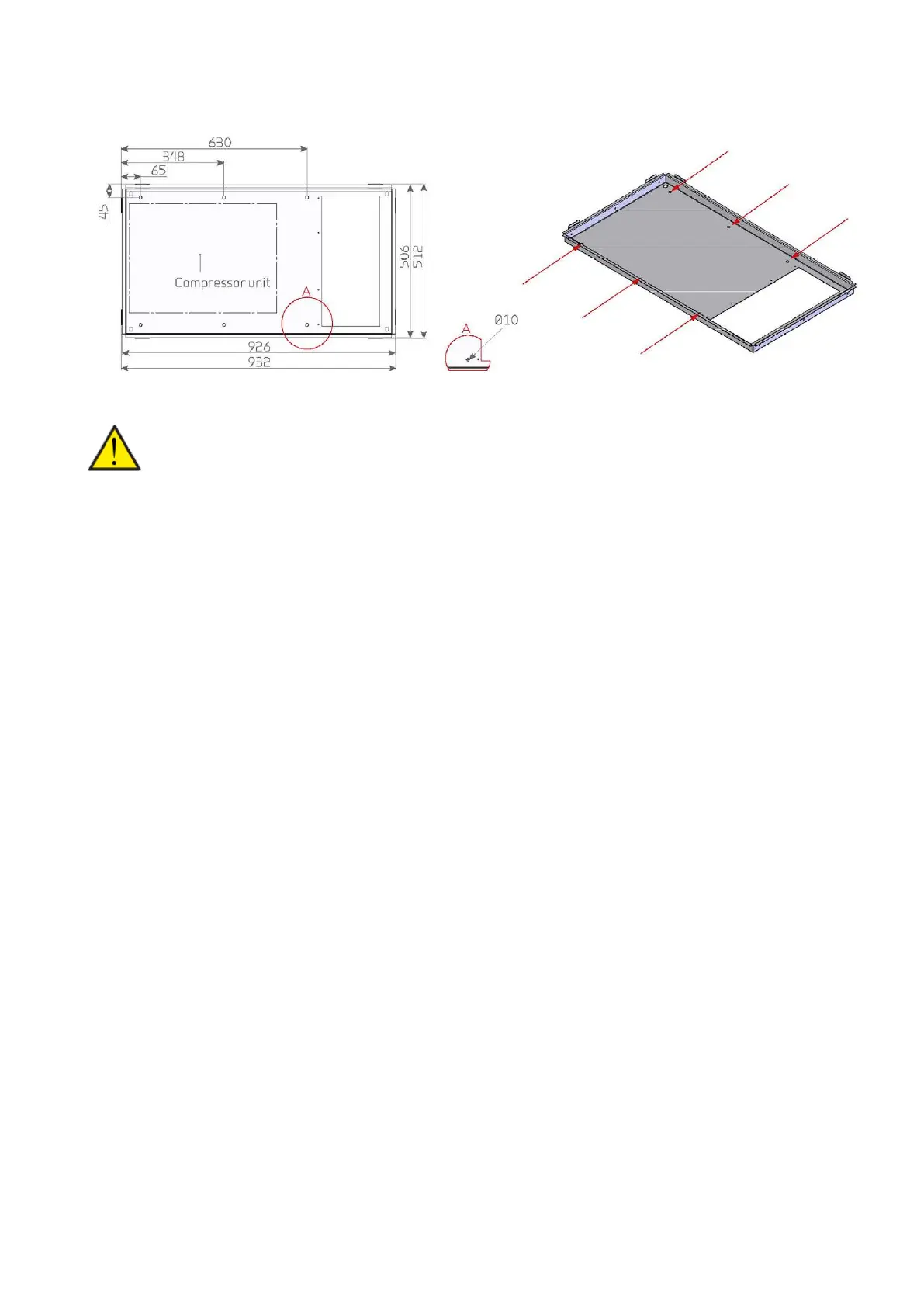

Fixing of external unit to substrate
If the outdoor unit is placed in a place with a lot of wind, e.g. on a roof, it is necessary to attach it to the substrate using the 6 pre-drilled
holes in the bottom.
ATTENTION
The illustration above shows an example of an AIR outdoor unit. See dimensional sketch for details on AIR9 and AIR9 +.
Pre-drilled holes
