Hot water tank
Connection overview
Supplementary coil is only standard on Compact P SOL models.
The coil is located in the bottom, and has an external diameter of 22 mm and is 8,500 mm long, equivalent to 0.6 m
2
.
Connection
Nilan's hot water tanks are double-enamelled, ensuring long life. The efficient foam insulation protects against unnecessary heat loss.
All connection nozzles for water have 3/4" thread and are located in the tank bottom.
The tank is also fitted with an electronically-monitored sacrificial anode that automatically displays a warning on the display when it
needs changing.
The tank is fitted with supplementary electrical heater deactivated by default and activated via the control panel if required.

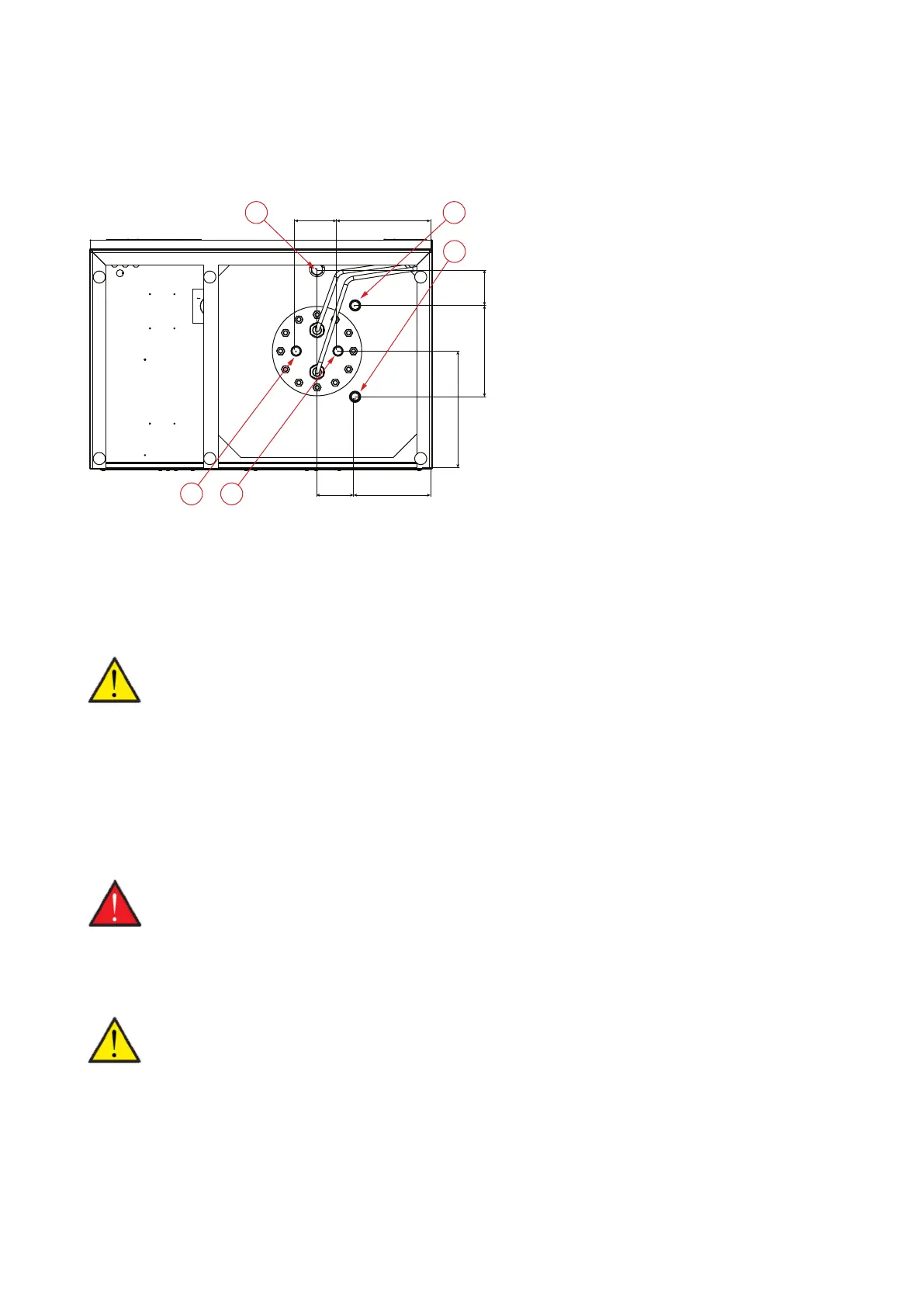

Compact P front
Connections:
1. Connection for 3/4" circulation pipe
2. Hot water outlet 3/4"
3. Cold water intake 3/4"
4. Return supplementary coil 3/4"
5. Supply supplementary coil 3/4"
All listed measurements are in mm.
ATTENTION
All work must be performed by qualified personnel and in accordance with relevant legislation and provisions.
CAUTION
Changing the anode when notified on the display is important. Failure to do so can cancel the guarantee on the hot
water tank.
ATTENTION
The supplementary heating must not be activated before the water tank is full of water.
310
240 92
110 248
200103
1 4
5
32
