Plumbing installation
Condensate drain
Important information
Compact P is supplied with a reinforced 20 mm condensation drain pipe with built-in water lock.
The connection of the water trap must be air-tight, otherwise air will be sucked into the unit and condensate water will not be able to
run out. It could cause water damage if the condensate tray overflows and condensate water runs out of the unit.
After installing the water trap, its function is tested as follows (the unit must be connected to the duct system):
Fill the condensate tray with water, close the door and start the unit at the highest fan speed level. Allow it to run for several minutes.
Open the door and check that there is no more water in the condensate tray.
ATTENTION
Run the condensate drain to the nearest drain, allowing an even fall of at least 1 cm per m.
The overflow from the safety valve for domestic cold water must likewise be led to a visible drain.
ATTENTION
If the unit is positioned outside the climate screen, it is important to secure the condensate drain against icing.
Frost protection of the unit is the installer's responsibility.

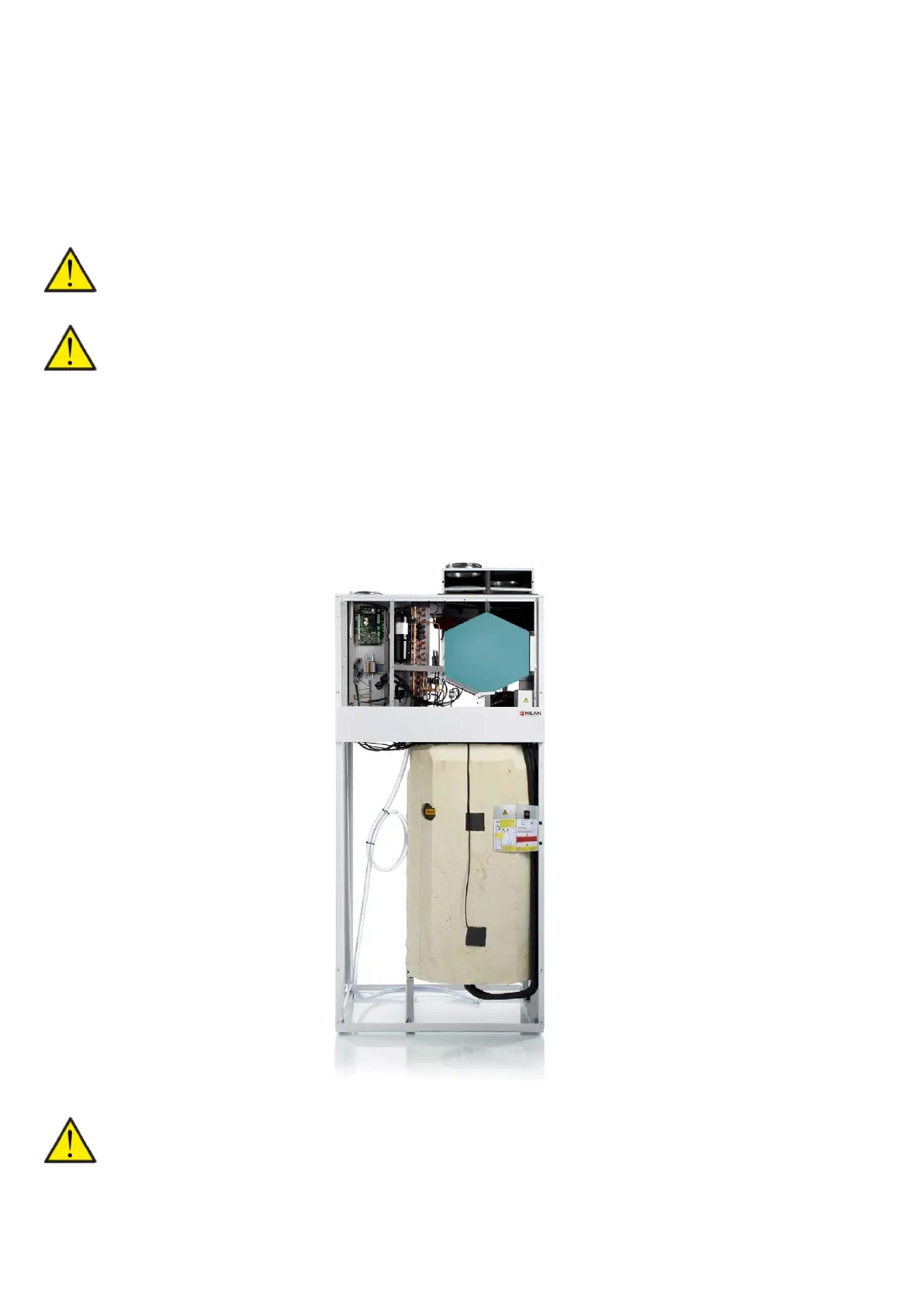

There is provided a loop of tubing from the condensate drain, which acts as a water trap. It is fixed with strips, which in
no case must be cut up.
