22
Dismantling the front doors of the + model
If you need access to mechanics, electronics or plumbing connections in the AIR + outdoor unit, it is possible to remove the upper and
lower front plate.
WARNING
Always disconnect the power to the unit before opening the doors at e.g. installation, inspection, cleaning and mainten-
ance etc..

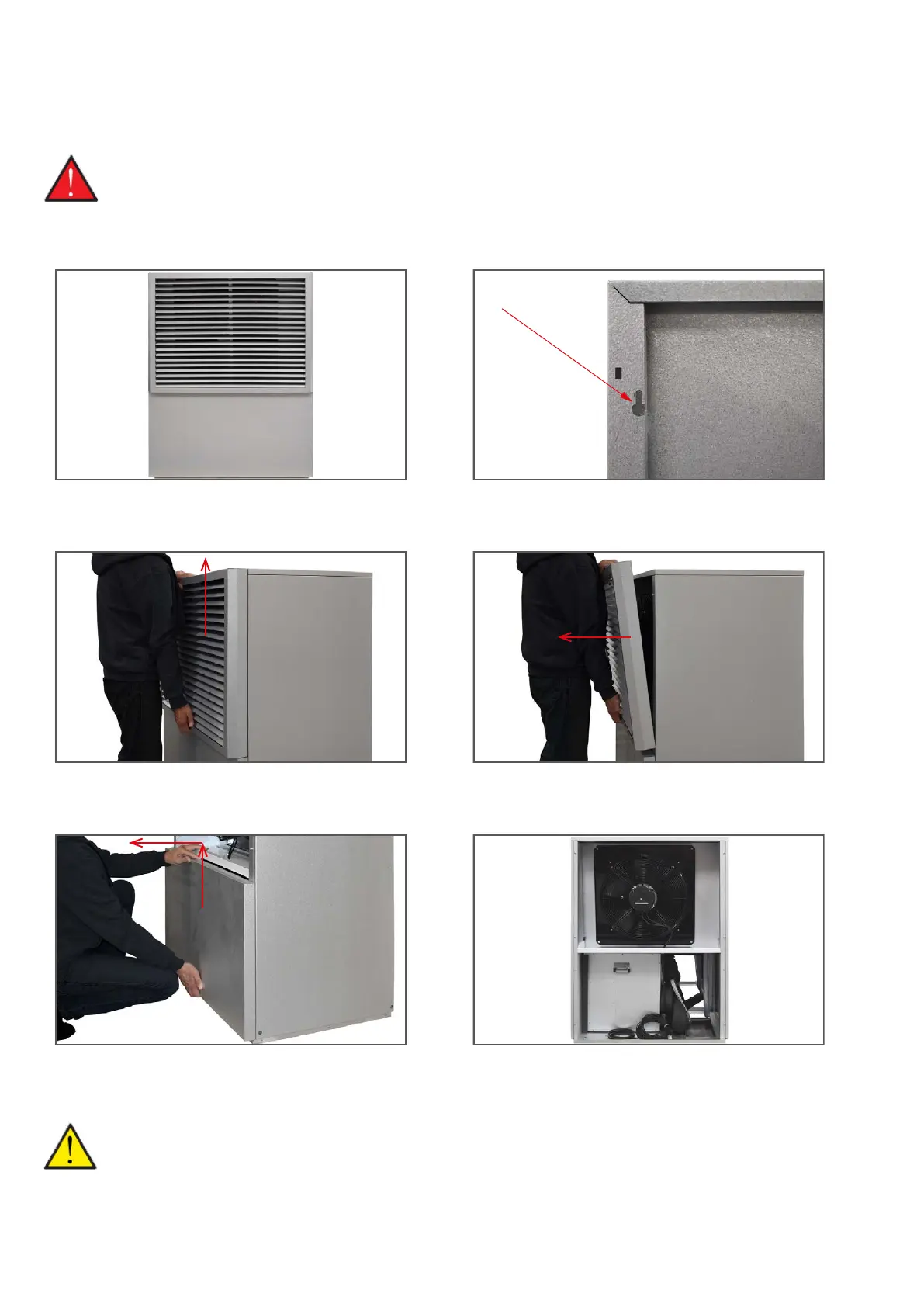

1. The AIR outdoor unit has an upper front plate with slats,
as well as a smooth lower front plate.
2. The two front plates are mounted with hook brackets.
3. Remove the top front plate by first lifting it up and off the
screws.
4. Then tilt the plate away from the outdoor unit and rem-
ove it completely.
5. The lower front plate is removed in the same way as the
upper one, by first lifting the plate and then tilting it out.
6. The AIR outdoor unit is now open, and you can access
mechanics, electronics and plumbing connections.
ATTENTION
The illustration above shows an example of an AIR9 + outdoor unit. The outdoor unit is available in several variants.
