Electrical connections unit
Power supply
Compact P AIR
CAUTION
The power supply is plugged into a 230V socket with a safety switch. It is important that the unit has ground connection.
The ventilation unit is supplied with an EU Schuko plug for 230V
power supply.
This means that if you have not installed a shoko socket with
side earth or pin earth, an Adapter schuko plug with pin earth
must be used.
This Schuko adapter can be plugged into the ventilation unit's
Shuko plug and then into a socket with earth.
Schuko socket
with side earth
Schuko socket
with pin earth
Adapter Schuko
plug with pin
ground
ATTENTION
Due to the risk of faults caused by inductive influence, the communication cable must be routed in a separate pipe with
a minimum of 100mm distance to other live cables.

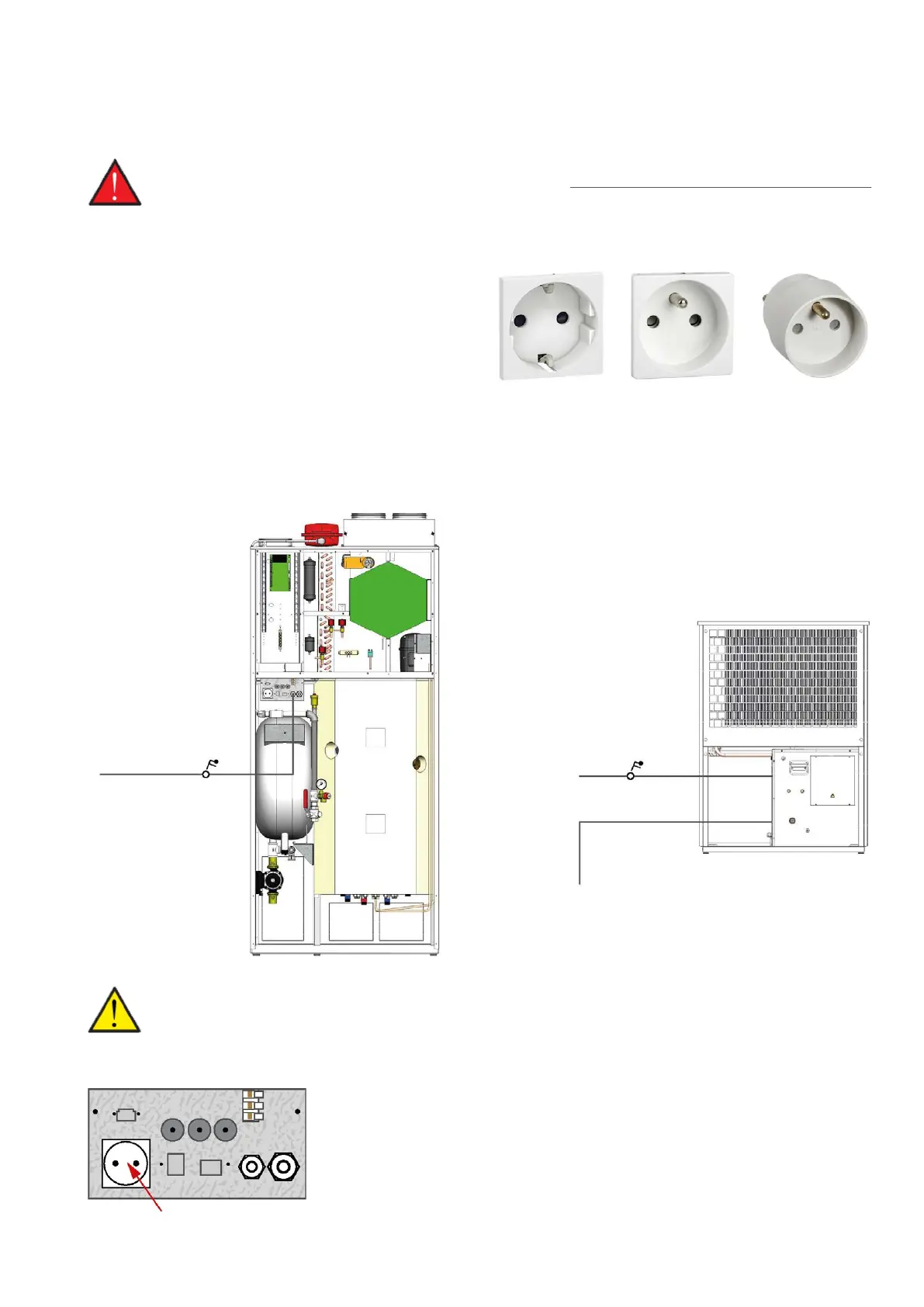

One electrical connection
for the whole unit:
3 x 400V, N, Ground, 16 A
(Schuko stik)
Safety switch
Heat pump, internal AIR unit Heat pump, external AIR unit
230V 50Hz 16A
Safety switch
20m communications cable
with plug connector for internal unit
Power connection for Compact P, ventilation and hot water
This power connection via Schuko socket allows to measure the power consumption of the
ventilation separately, as well as the possibility that the hot water part does not have the
same connection as the heat pump.
