51
Connecting to SHW hot water tank
The domestic cold water is pre-heated in the SHW tank up to 45 °C by the AIR heat pump (factory setting 40 °C) through the heating
pump coil (length 26 m). It is then fed to the DHW tank in the Compact P, where it is heated to the desired flow temperature.

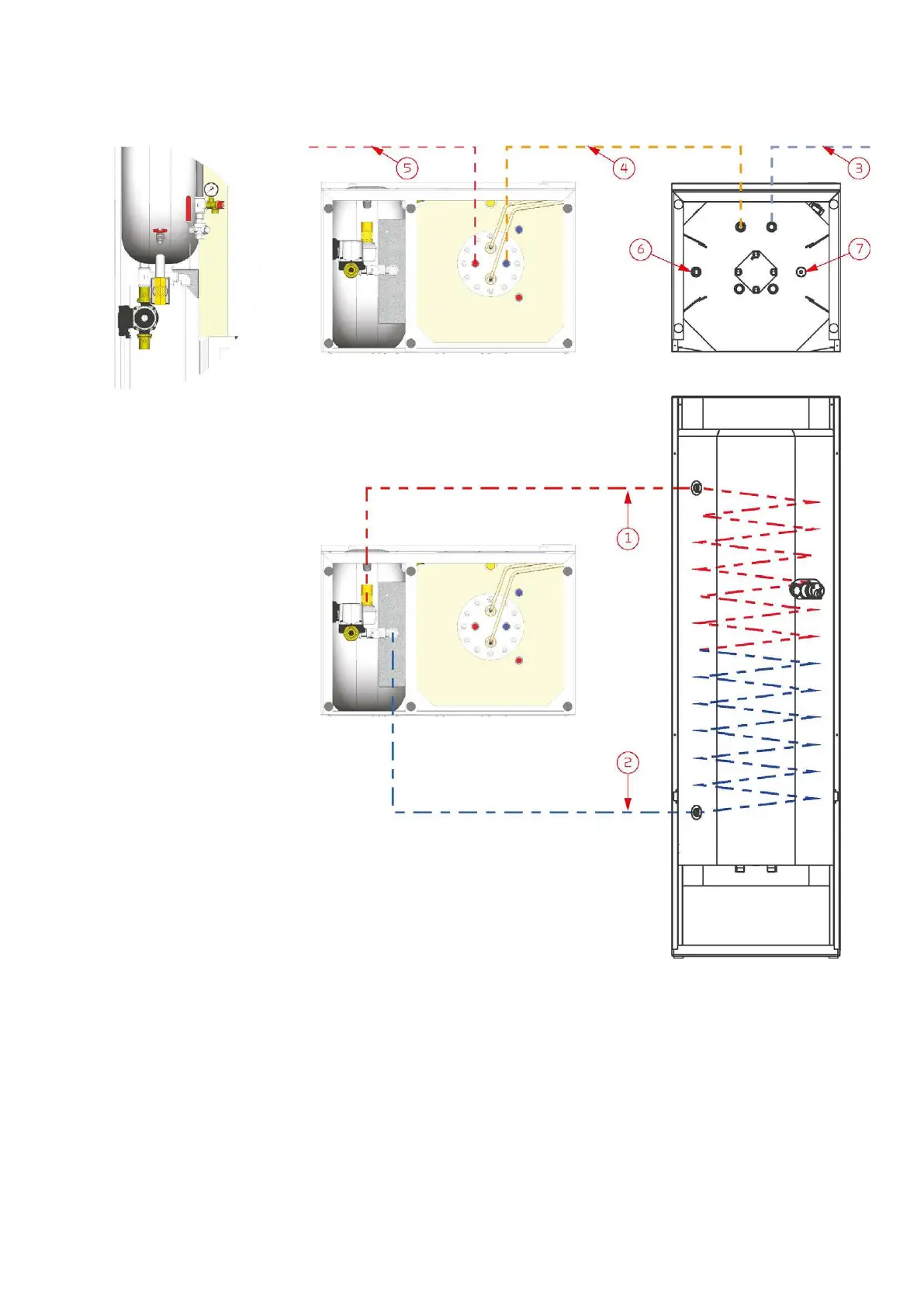

1. Flow to the heat pump coil in the SHW tank from the AIR heat pump three-way valve
2. Return flow from the heat pump coil in the SHW tank to the AIR heat pump
3. Connection for domestic cold water supply
4. Supply flow of pre-heated domestic hot water from the SHW tank to the DHW tank in Compact P
5. Supply flow of domestic hot water from the DHW tank
6. Connection for hot water circulation
7. Sensor pocket
AIR front
AIR bottom
DHW tank bottom
SHW tank bottom
SHW tank front
AIR bottom
DHW tank bottom
