Nokia 7368 ISAM CPE User Manual

A-020W-A unit data sheet
28
7368 ISAM CPE A-020W-A Product Guide
3FE-47511-AAAA-TCZZA Issue: 01

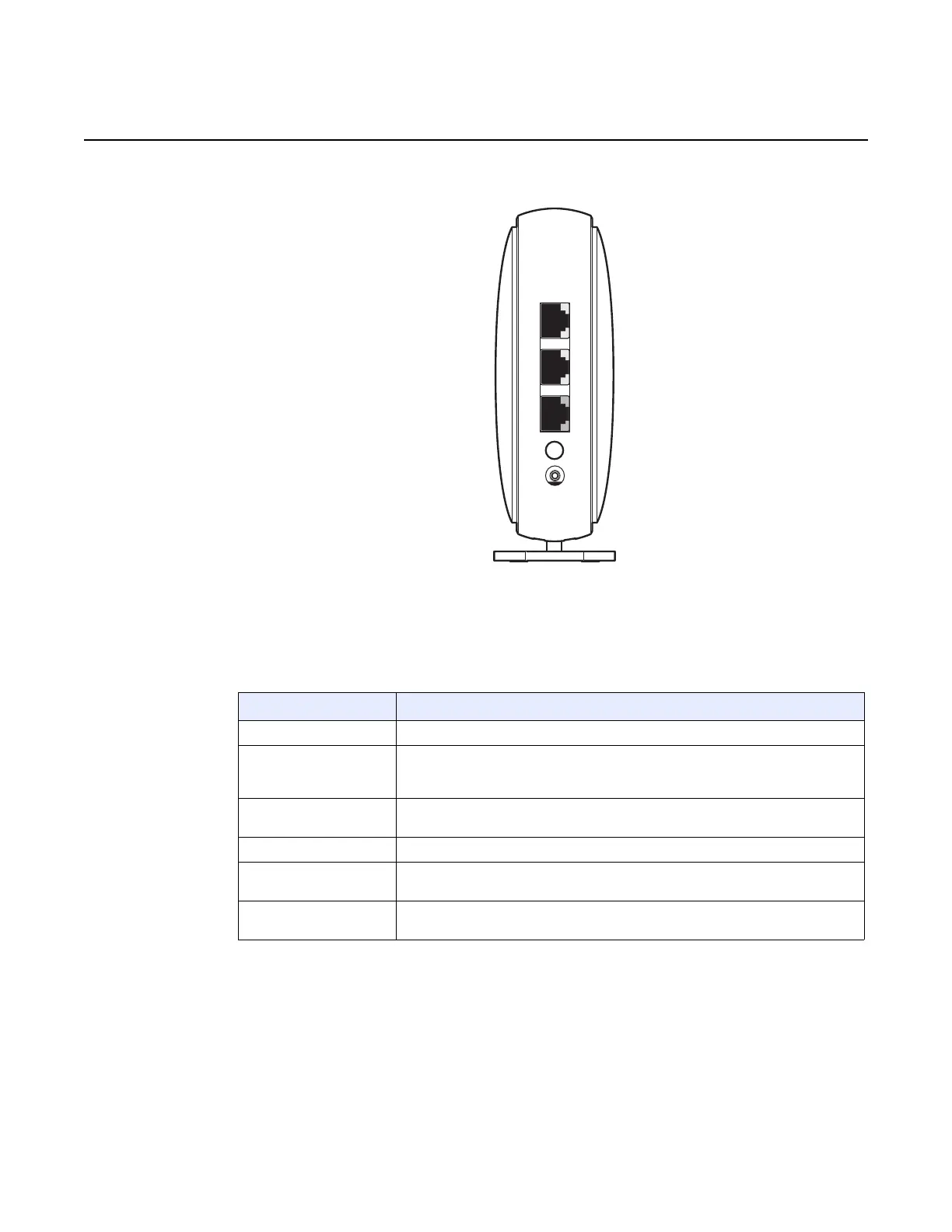

Figure 5 A-020W-A physical connections
Table 7 describes the physical connections for A-020W-A CPE devices.
Table 7 A-020W-A physical connections
5.5 A-020W-A LEDs
Figure 6 shows the A-020W-A CPE LEDs.
Connection Description
On/Off button This button powers the unit on or off.
LAN 1/LAN 2 This connection is provided through Ethernet RJ-45 connectors. Up to two
10/100/1000 Base-T Ethernet interfaces are supported.The Ethernet ports can
support both data and in-band video services on both interfaces.
WAN port This connection is provided through an RJ-45 Gigabit Ethernet interface. One
10/100/1000 Base-T Ethernet interface is supported.
WPS ON/Off button This button is used to start the WiFi Protected Setup (WPS) of new WiFi devices.
Reset button Pressing the Reset button for less than 10 seconds reboots the device; pressing
the Reset button for 10 seconds resets the device to the factory defaults.
Power input This connection is provided through the power connector. A power cable fitted with
a barrel connector is used to make the connection.
ON/OFF
WAN
LAN 2
LAN 1
28230
Release 05.08.01 | June 2018 | Edition 01

Nokia 7368 ISAM CPE Specifications

General

Brand	Nokia
Model	7368 ISAM CPE
Category	Wireless Access Point
Language	English
