Nokia 7368 ISAM CPE User Manual

7368 ISAM CPE A-020W-A Product Guide A-020W-A unit data sheet
Issue: 01 3FE-47511-AAAA-TCZZA 29

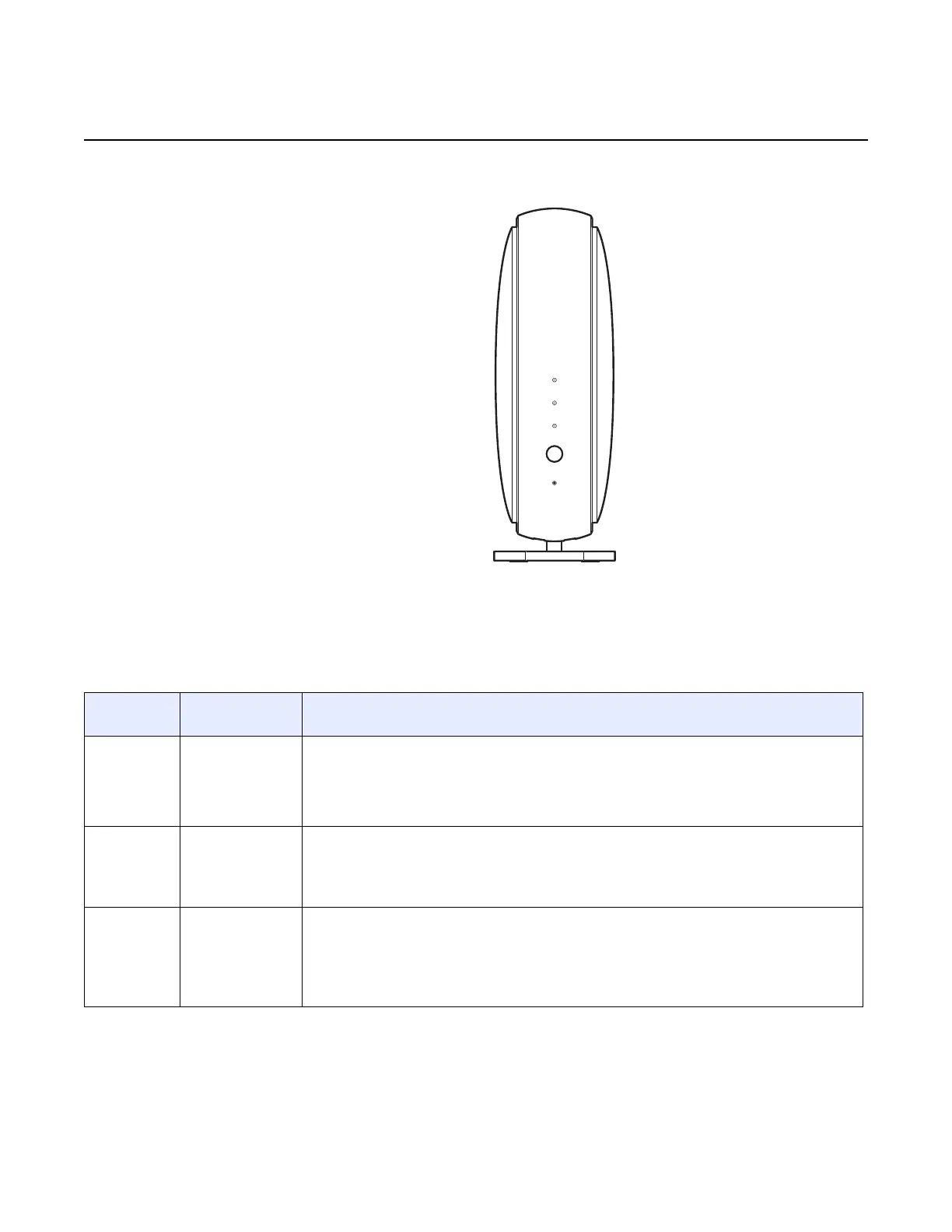

Figure 6 A-020W-A LEDs
Table 8 provides LED descriptions for the A-020W-A CPE.
Table 8 A-020W-A LEDs
INTERNET
WPS
PA IR
RESET
POWER
28229
Indicator LED color and
behavior
LED behavior description
Power Green
Off
Red (default until
software is
running)
Power on
Power off
Failed on startup (for example corrupt flash), self test failed on startup, or self test failed during
regular operation.
WPS (2.4G
and 5G)
Green solid
Green flashing
Off
Solid Red
WPS is successful (light turns off five minutes after successful WiFi setup)
WPS is in progress (light turns off after two minutes if WPS is unsuccessful)
WPS is not in progress
WPS error or overlapped (lights for 20 s and then turns off)
INTERNET Green solid
Green flashing
Red
RG mode: Internet is up, IP address is assigned
Beacon mode: Connection to the access point is good, IP address is assigned
RG mode: Attempting to connect to the Internet
RG mode: Gateway has no Internet connection
Beacon mode: No or poor connection to the access point
Release 05.08.01 | June 2018 | Edition 01

Nokia 7368 ISAM CPE Specifications

General

Brand	Nokia
Model	7368 ISAM CPE
Category	Wireless Access Point
Language	English
