7368 ISAM CPE A-020W-A Product Guide A-020W-A unit data sheet
Issue: 01 3FE-47511-AAAA-TCZZA 31

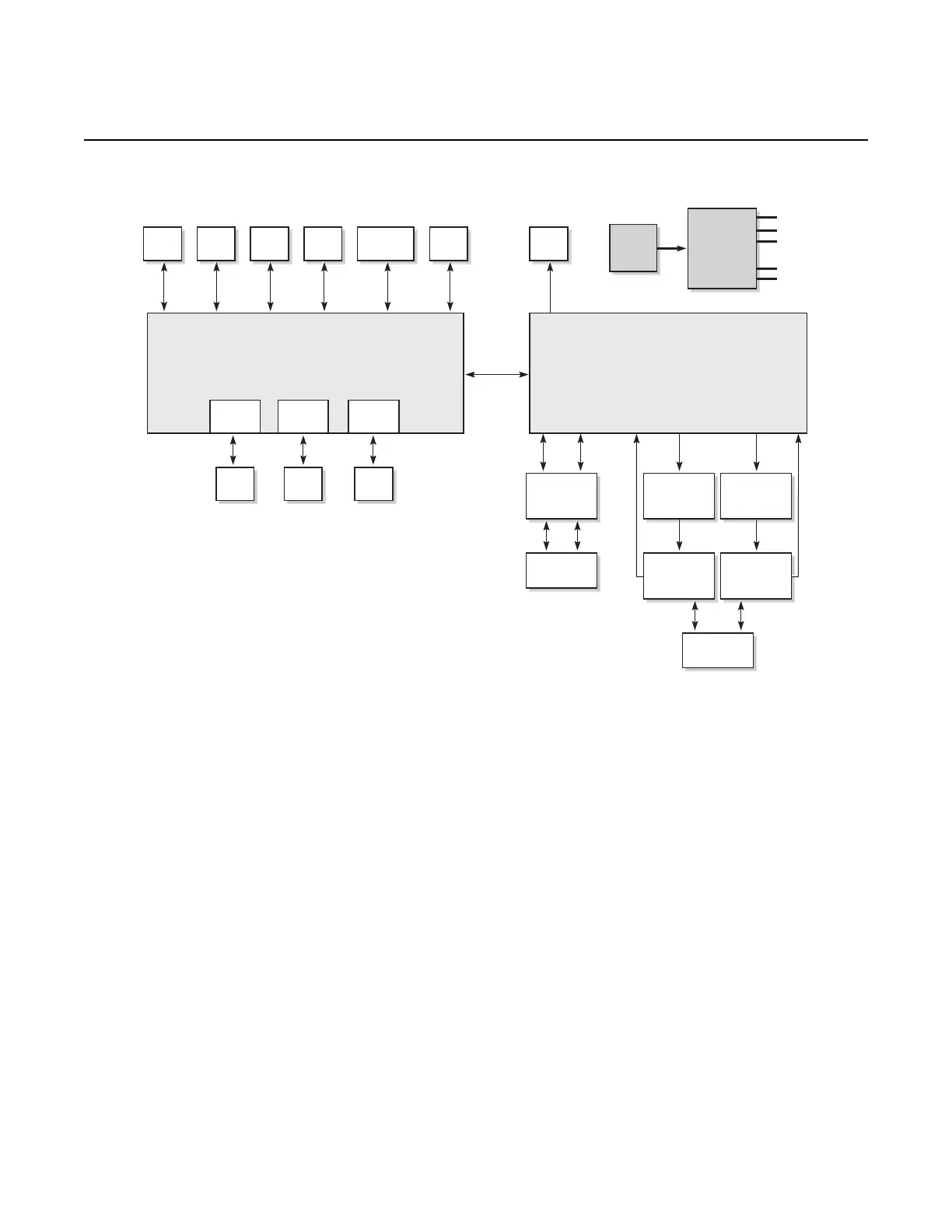

Figure 7 Single-residence WiFi CPE with Gigabit Ethernet
5.8 A-020W-A standards compliance
A-020W-A CPE devices are compliant with the following standards:
• IEEE 802.1D (bridging), 802.1p (QoS), 802.1q (VLAN)
• IEEE 802.3 (2012) (Ethernet standard)
• IEEE 802.11n/ac 2x2 (WiFi 5G) and 802.11b/g/n 2x2 (WiFi 2.4G)
5.9 A-020W-A special considerations
This section describes the special considerations for A-020W-A CPE devices.
Flash Clock UART EEPROMDDR3
GE
PHY
GE
PHY
GE
PHY
RJ-45 RJ-45RJ-45
LEDs LEDs
2.4G WIFI
PA & LNA
Circuit
2.4G
Antenna*2
SoC
DDR3 PBI I2C GPIO GPIO
PCIe 0
Chain
1
Chain
0
5G WIFI
LNA & SW
Circuit
5G
Antenna*2
Chain
2
3.3V
1.5V
1.0V
1.6V
1.1V
Power
Regulators
12V
Power
In
28228
5G WIFI
PA
Circuit
Chain
3
5G WIFI
PA
Circuit
5G WIFI
LNA & SW
Circuit
WiFi SoC
