RF key components

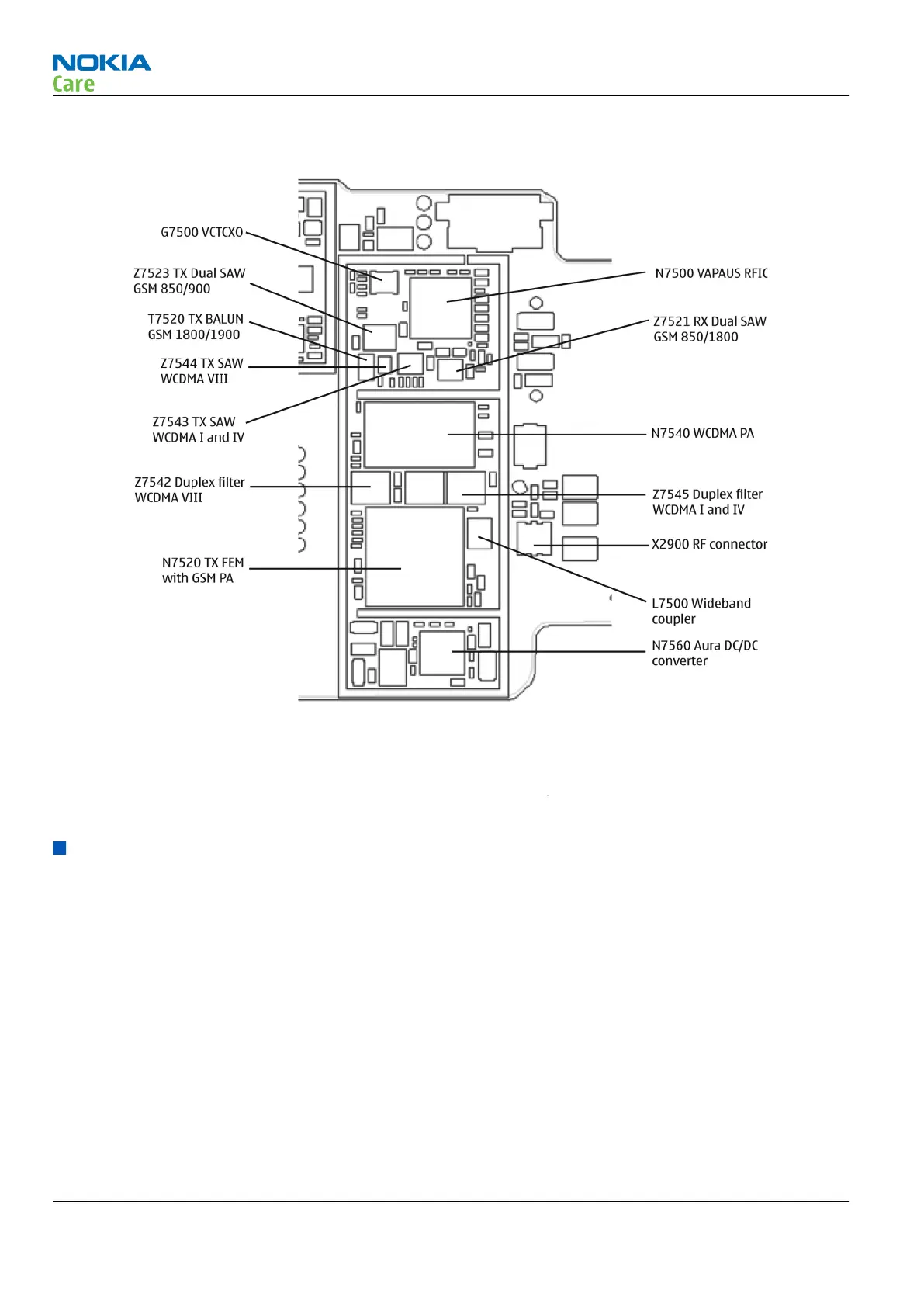

Figure 17 RF key components - bottom
Auto tuning
Introduction to auto tuning
This phone can be tuned automatically.
Auto tune is designed to align the phone's RF part easier and faster. It performs calibrations, tunings and
measurements of RX and TX. The results are displayed and logged in a result file, if initiated.
Hardware set up
Hardware requirements for auto tuning:
•
PC (Windows 2000/XP) with GPIB card
•
PK-1/PDK-1 service dongle
•
Power supply
•
Product specific module jig
•
Cables: RF cable XRF-1, USB cable, GPIB cable and DAU-9S
RM-509; RM-510; RM-511
