Note: Clicking Stop also disables TX control if it was active.
WCDMA RSSI measurement
Prerequisites
WCDMA RX must be activated before RSSI can be measured. For instructions, please refer to WCDMA RX chain
activation for manual measurement (page 4–11).
Connect signal generator to RF connector and use appropriate frequency for each channel.
Steps
1. In Phoenix select Testing→WCDMA→RX Power measurement . The Rx Power Measurement window
opens.

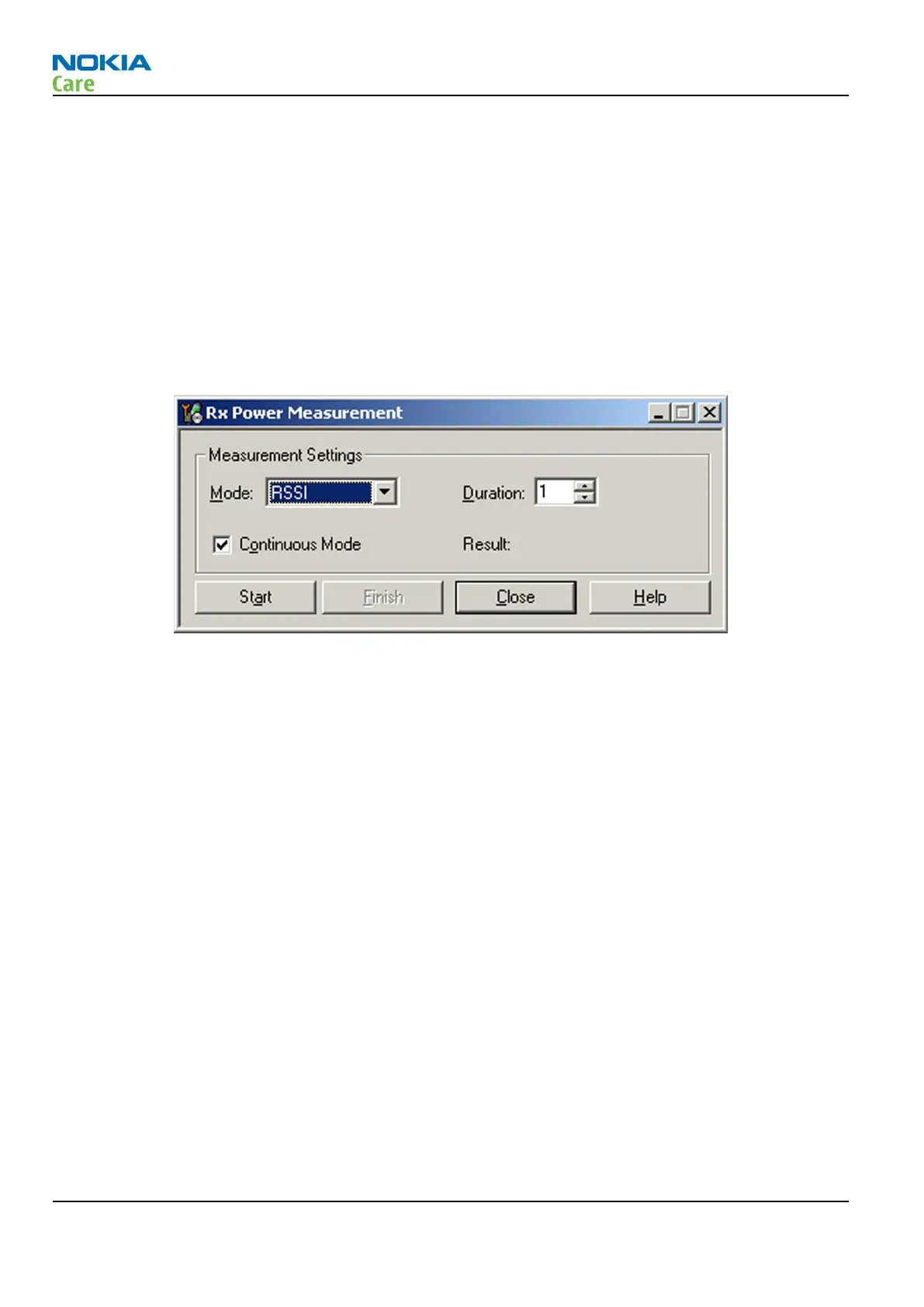

Figure 21 Phoenix Rx Power Measurement window
2. In the RX Power measurement window, select:
•
Mode: RSSI
•
Continuous mode
3. Click Start to perform the measurement.
Note: WCDMA RSSI measurement is accurate only with WCDMA modulated signal.
RM-509; RM-510; RM-511
RF Troubleshooting
Page 4 –12 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
