X means that the component is used for the band in the current column.
For further reference, see Component reference schematics in the following figure.

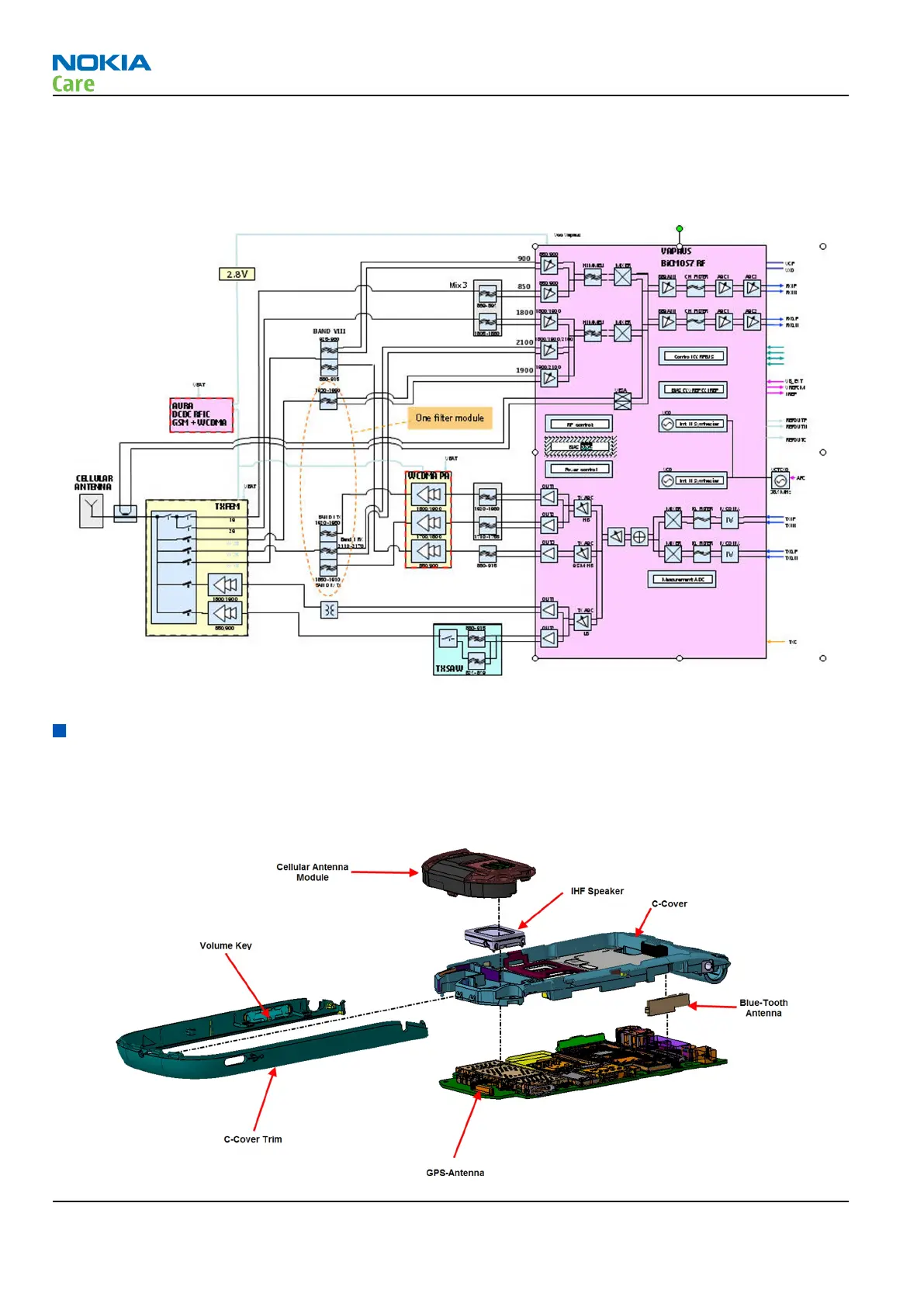

RF block schematics
Figure 27 Component reference schematics
Antenna
Antenna overview
The phone has three antennas, a main antenna, a BT antenna and a GPS antenna. Their placement in the
phone can be seen in the following figure:
RM-509; RM-510; RM-511
RF Troubleshooting
Page 4 –26 COMPANY CONFIDENTIAL Issue 2
Copyright © 2009 Nokia. All rights reserved.
