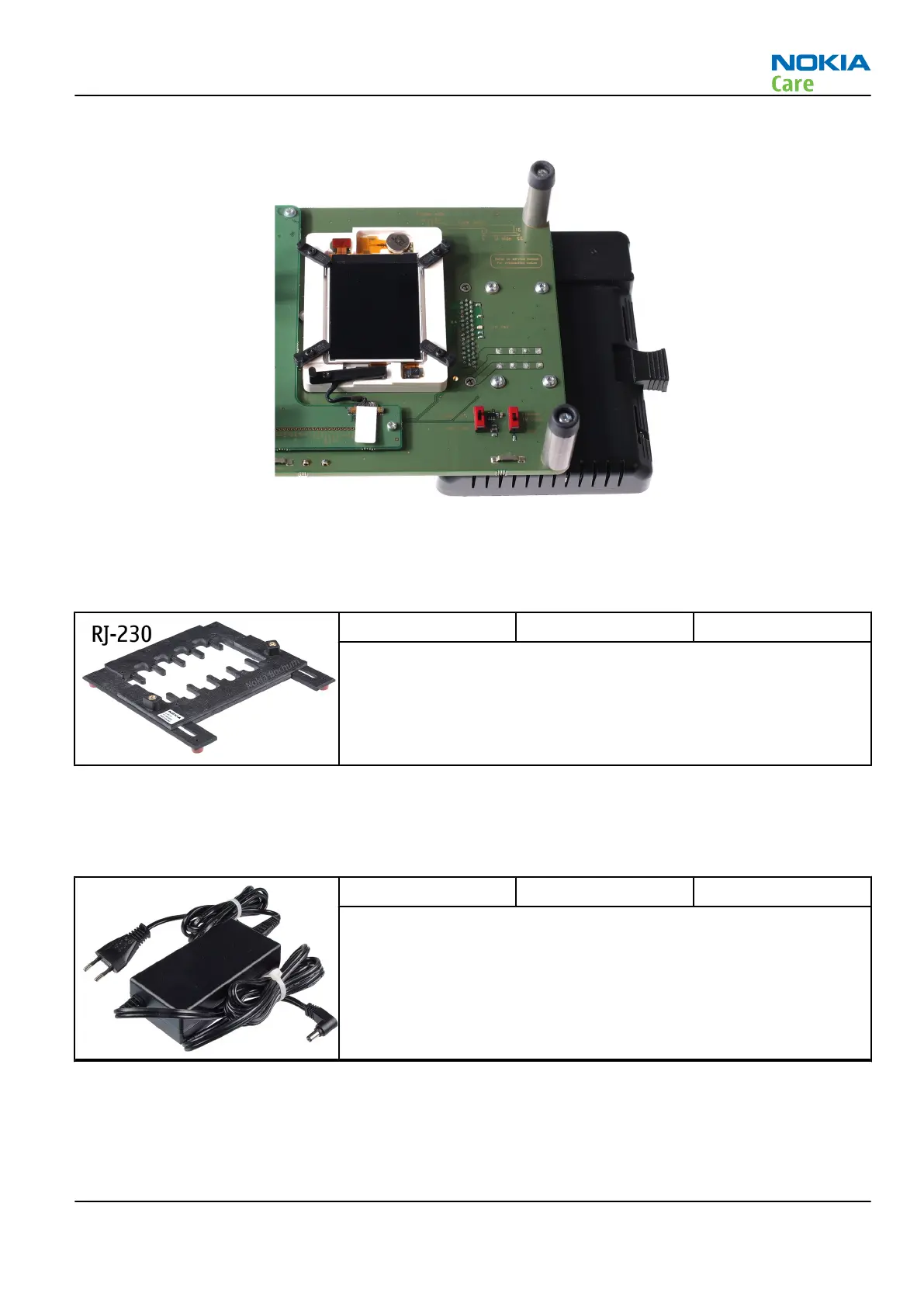

2. Assemble the display module to the UI flex in the supporting frame.
Rework jigs and stencils
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-509; RM-510; RM-511. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
RJ-230 Soldering jig
RJ-230 is a soldering jig used for soldering and as a rework jig for the
engine module.
General devices
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-509; RM-510; RM-511. For the correct use of the service devices, and the best effort of
workbench setup, please refer to various concepts.
AC-35 Power supply
Universal power supply for FPS-21; included in the FPS-21 sales
package.
Input 100V…230V 50Hz…60Hz, output voltage of 12 V and output
current up to 3 A.
RM-509; RM-510; RM-511
Service Devices and Service Concepts
Issue 2 COMPANY CONFIDENTIAL Page 2 –7
Copyright © 2009 Nokia. All rights reserved.
